Master Cylinder: Inspection

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, fluid reservoir, return spring, gasket, clutch damper cylinder boot or hose, replace the faulty part.

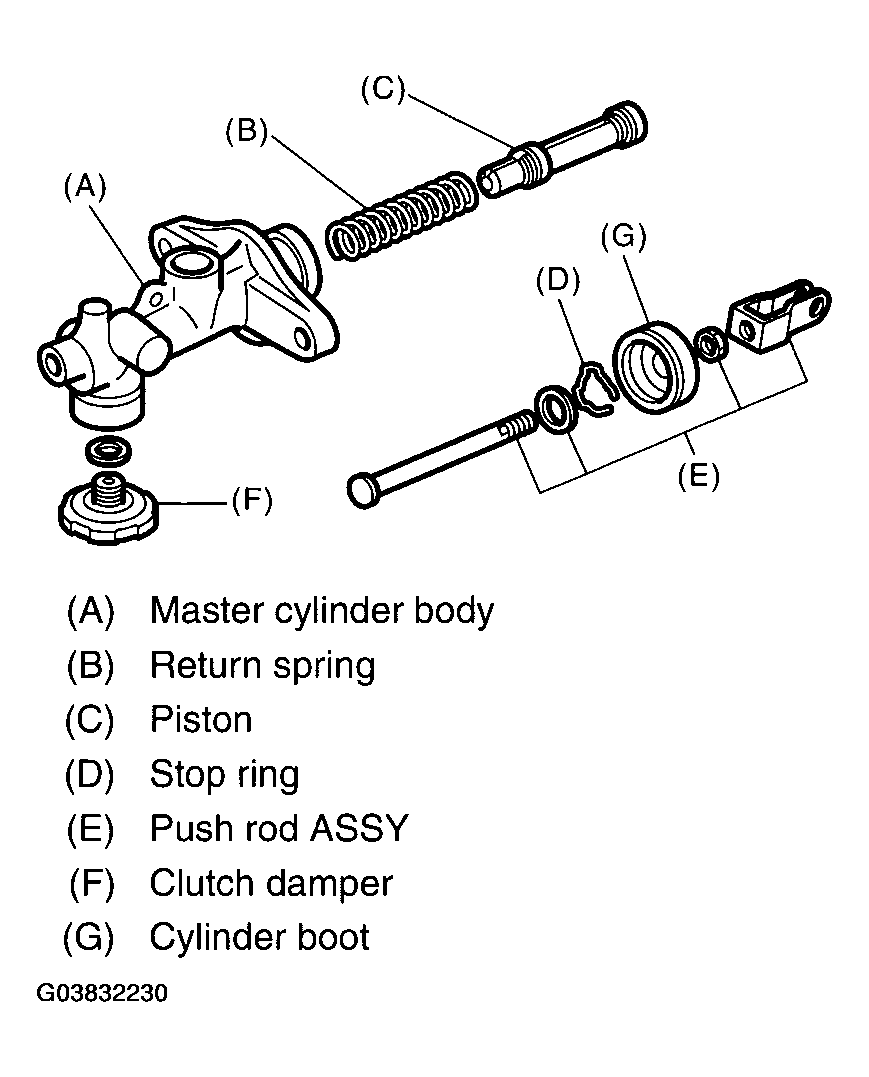

Fig 1: Inspecting Master Cylinder

Courtesy of SUBARU OF AMERICA, INC.
