Passenger's Airbag Module: Removal

CAUTION: Before handling the airbag module, < Ref. to , CAUTION , General Description. >
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery and wait for at least 20 seconds before starting work.
  3. Remove the instrument panel. < Ref. to REMOVAL , Instrument Panel Assembly. >
  4. Remove the pawl and remove the passenger's airbag module.

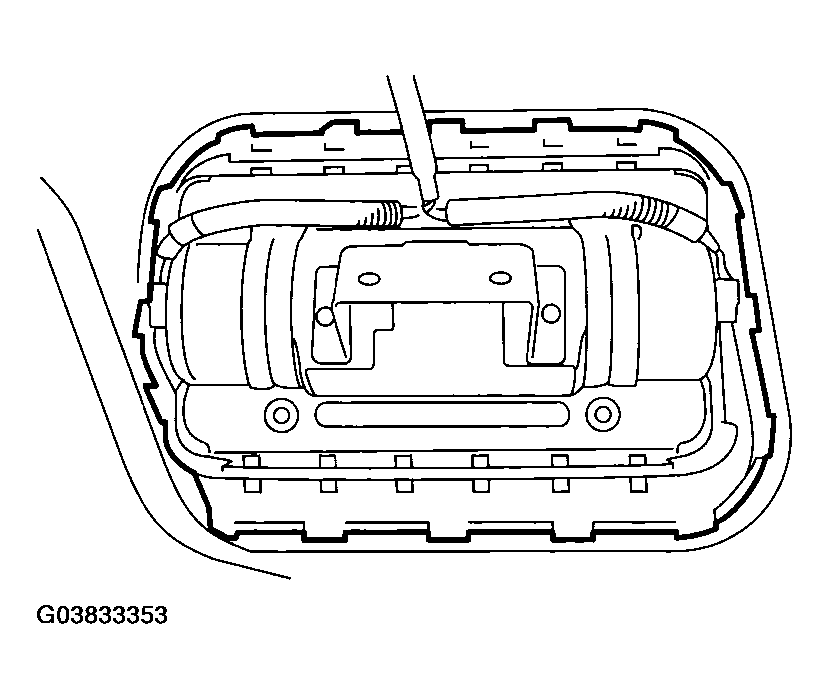

    Fig 1: Removing Passenger's Airbag Module
    G03833353Courtesy of SUBARU OF AMERICA, INC.
  5. Refer to "CAUTION" for handling of a removed airbag module. < Ref. to , CAUTION , General Description. >
