Air Intake Chamber: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.

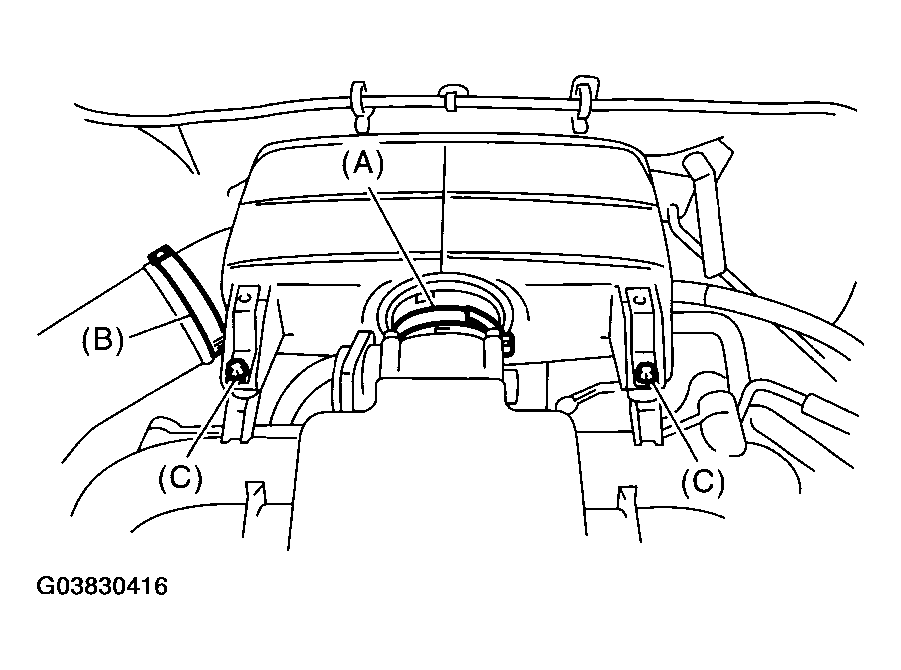

Tightening torque:
Clamp (A), (B)
3.0 N.m (0.3 kgf-m, 2.2 ft-lb)
Bolt (C)
6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
