Components With Torque Specifications

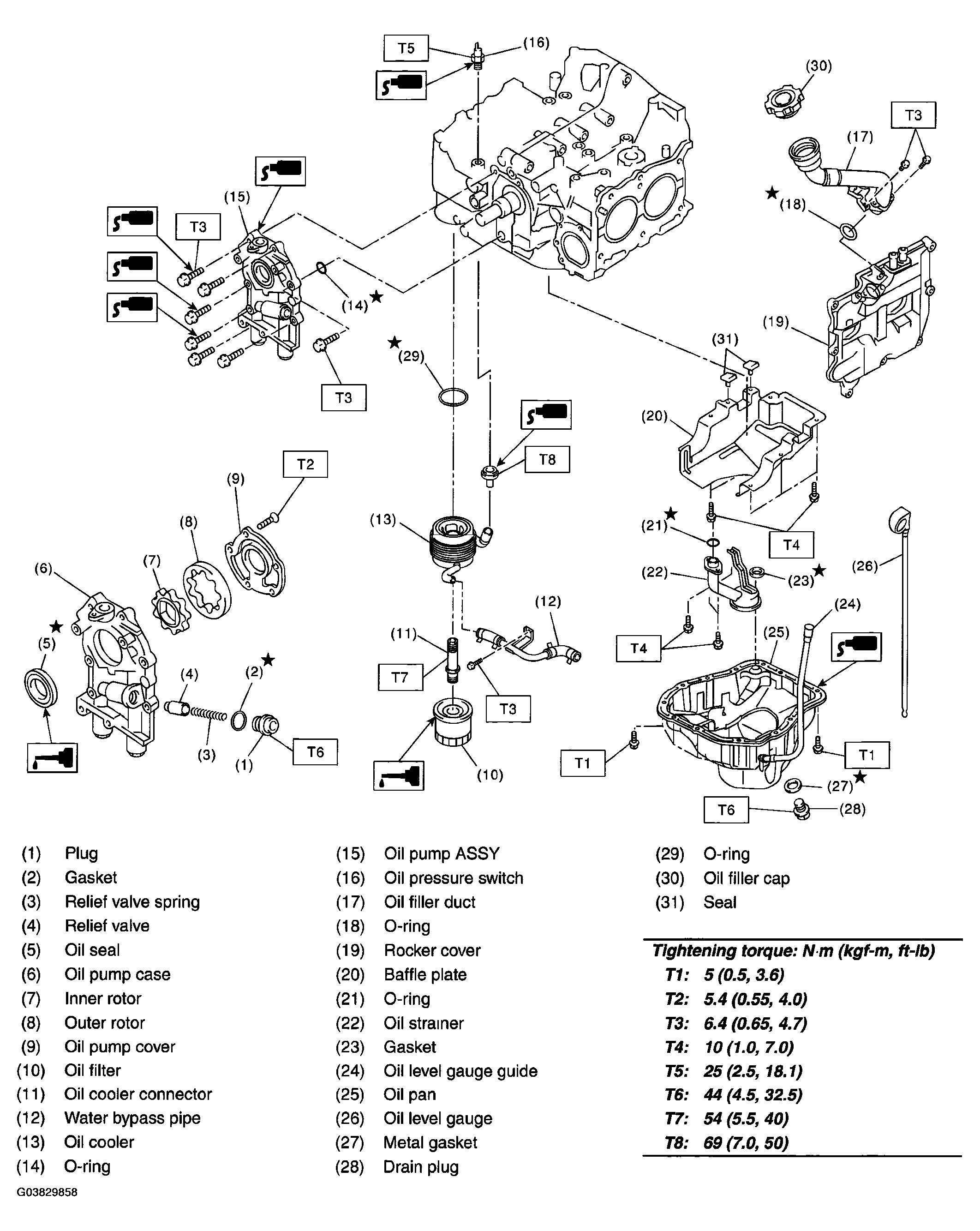

Fig 1: Exploded View Of Lubrication Components With Torque Specifications

G03829858

Courtesy of SUBARU OF AMERICA, INC.
