ABS Sequence Control
>>
Operation
>>
Conditions For Abs Sequence Control
Conditions For Abs Sequence Control

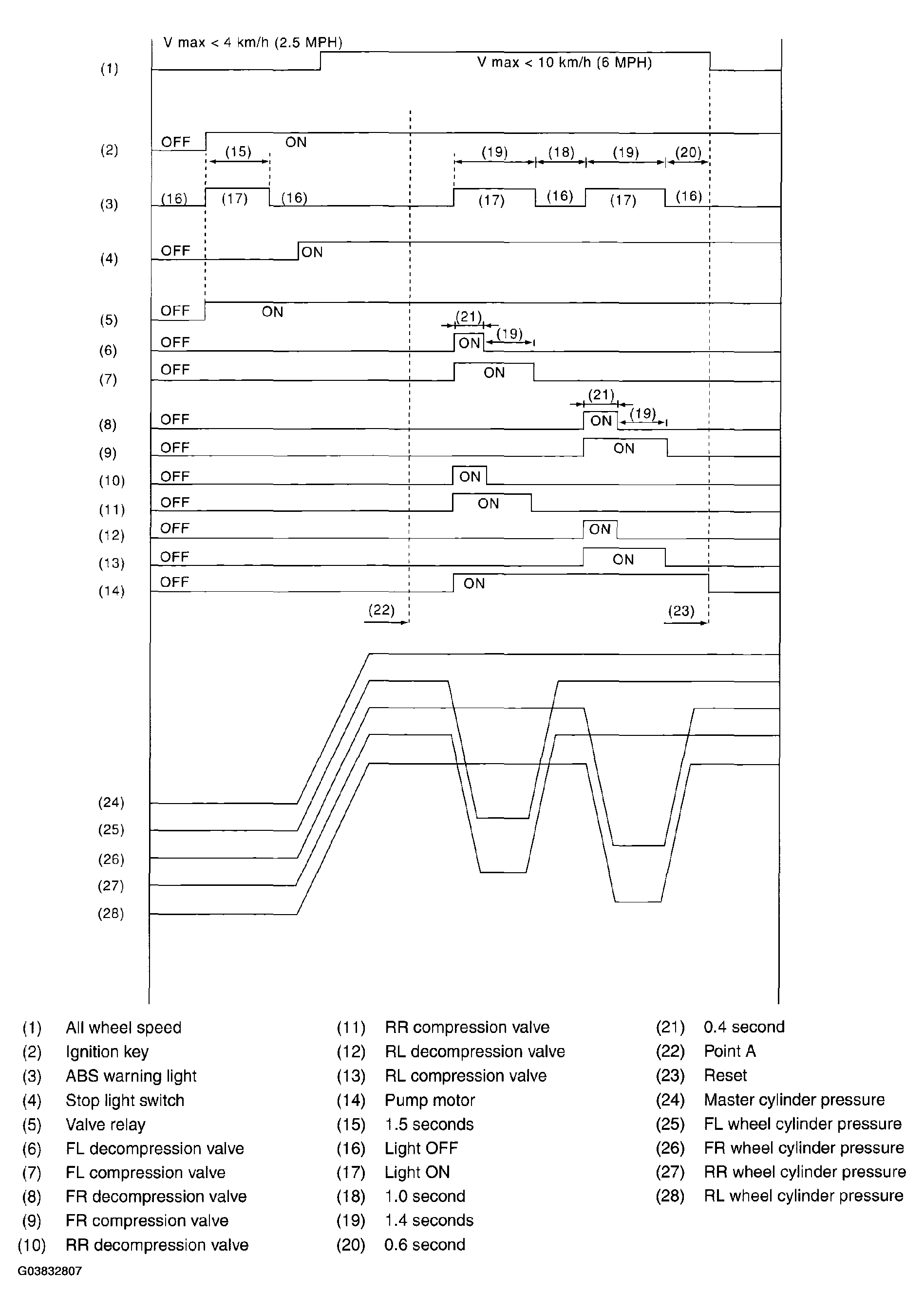

Fig 1: ABS Sequence Control Graphical Representation
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts from point A.
Courtesy of SUBARU OF AMERICA, INC.
