DTC C0027 Open/High Input Of Rear Abs Wheel Speed Sensor LH

DTC DETECTING CONDITION:

TROUBLE SYMPTOM:

WIRING DIAGRAM:

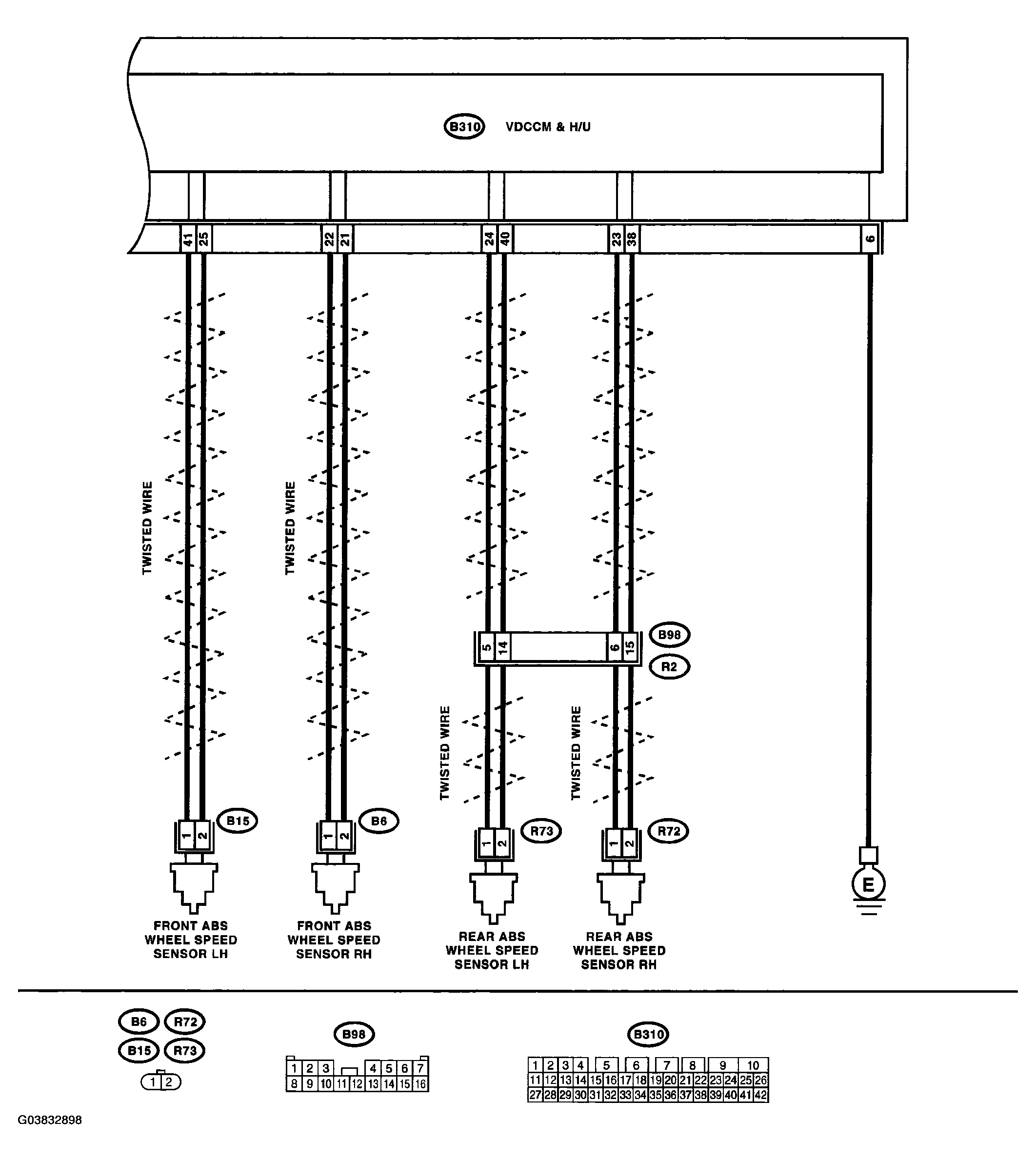

Fig 1: Front ABS Wheel Speed Sensor RH Open/High Input - Wiring Diagram And View Of Connectors
G03832898Courtesy of SUBARU OF AMERICA, INC.
INSPECTION DETAILS - FRONT ABS WHEEL SPEED SENSOR RH OPEN/HIGH INPUT

Step Check Yes No
1. CHECK POOR CONTACT IN CONNECTOR.
Check if there is poor contact between VDCCM&H/U and ABS wheel speed sensor.		 Is there poor contact? Repair the connector. Go to step 2  .
2. CHECK HARNESS CONNECTOR BETWEEN VDCCM&H/U AND ABS WHEEL SPEED SENSOR.
  1. Disconnect the connector (B310) from VDCCM&H/U.
  2. Disconnect the connector from ABS wheel speed sensor.
  3. Measure the resistance between VDCCM&H/U connector and ABS wheel speed sensor connector.

    Connector & terminal

    DTC C0021

    (B310) No. 22 - (B6) No. 1:

    (B310) No. 21 - (B6) No. 2:

    DTC C0023

    (B310) No. 41 - (B15) No. 1:

    (B310) No. 25 - (B15) No. 2:

    DTC C0025

    (B310) No. 23 - (R72) No. 1:

    (B310) No. 38 - (R72) No. 2:

    DTC C0027

    (B310) No. 24 - (R73) No. 1:

    (B310) No. 40 - (R73) No. 2:

 Is the resistance less than 0.5 ohm? Go to step 3  . Repair the harness connector between VDCCM&H/U and ABS wheel speed sensor.
3. CHECK GROUND SHORT OF HARNESS.
Measure the resistance between VDCCM&H/U connector and chassis ground.
Connector & terminal
DTC C0021
(B310) No. 21 - Chassis ground:
DTC C0023
(B310) No. 25 - Chassis ground:
DTC C0025
(B310) No. 38 - Chassis ground:
DTC C0027
(B310) No. 40 - Chassis ground: 		 Is the resistance more than 1 Mohm? Go to step 4  . Repair the harness connector between VDCCM&H/U and ABS wheel speed sensor.
4. CHECK ABS WHEEL SPEED SENSOR POWER SUPPLY CIRCUIT.
  1. Connect the VDCCM&H/U connector.
  2. Turn the ignition switch to ON.
  3. Measure the voltage between ABS wheel speed sensor connector and chassis ground.

    Connector & terminal

    DTC C0021

    (B6) No. 1 (+) - Chassis ground (-):

    DTC C0023

    (B15) No. 1 (+) - Chassis ground (-):

    DTC C0025

    (R72) No. 1 (+) - Chassis ground (-):

    DTC C0027

    (R73) No. 1 (+) - Chassis ground (-):

 Is the voltage 5-16 V? Go to step 6  . Go to step 5  .
5. CHECK VDCCM&H/U POWER SUPPLY CIRCUIT.
  1. Turn the ignition switch to OFF.
  2. Disconnect the VDCCM&H/U connector.
  3. Turn the ignition switch to ON.
  4. Measure the voltage between VDCCM&H/U connector terminals.

    Connector & terminal

    (B310) No. 14 (+) - (B310) No. 6 (-):

 Is the voltage 10-15 V? Go to step 7  . Check the generator, battery and VDCCM&H/U power supply circuit.
6. CHECK ABS WHEEL SPEED SENSOR SIGNAL.
  1. Install the ABS wheel speed sensor.
  2. Prepare an oscilloscope.
  3. Check the ABS wheel speed sensor. < Ref. to ABS WHEEL SPEED SENSOR , INSPECTION, Rear ABS Wheel Speed Sensor. >
 Is waveform pattern same as shown in Fig 2 . Go to step 7  . Replace the ABS wheel speed sensor.
7. CHECK VDCCM&H/U.
  1. Connect all the connectors.
  2. Erase the memory.
  3. Perform the inspection mode. < Ref. to , PROCEDURE , Inspection Mode. >
  4. Read the DTC.
 Is the same DTC displayed? Replace the VDCCM&H/U. < Ref. to VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM/U) . > Go to step 8  .
8. CHECK OTHER DTC DETECTION.  Is any other DTC displayed? Perform the diagnosis according to DTC. It results from a temporary noise interference.
Fig 2: Measuring ABS Sensor Output Voltage
G03832811Courtesy of SUBARU OF AMERICA, INC.
