Body Integrated Unit: Removal

NOTE:
  • If replacing the body integrated unit, check the current setting and note it. < Ref. to CONFIRMATION OF CURRENT SETTING , OPERATION, Subaru Select Monitor. >
  • When replacing the body integrated unit, all immobilizer keys also must be replaced and registered again.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower panel on driver's side. < Ref. to REMOVAL , Instrument Panel Assembly. >
  3. Disconnect the connector of body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
  4. Remove the body integrated unit from the body integrated unit mounting bracket using flat tip screwdriver.
    CAUTION: Be careful not to damage the unit when removing it forcibly from the bracket.
  5. Remove the clutch pedal stopper arm. (MT model) < Ref. to REMOVAL , Clutch Pedal. >
  6. Remove two body integrated unit bracket mounting bolts, and remove the bracket.

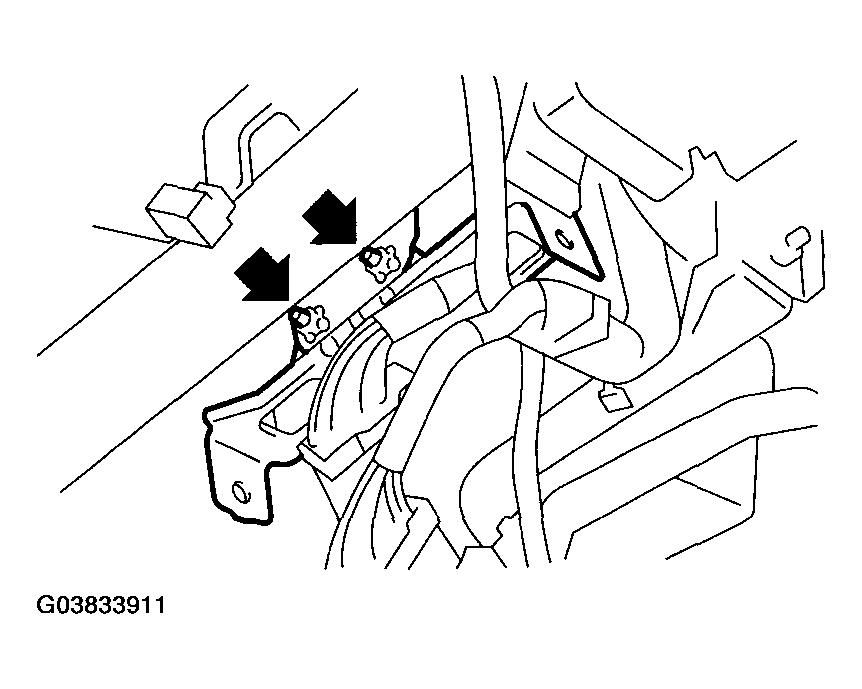

Fig 1: Removing Two Body Integrated Unit Bracket Mounting Bolts
G03833911Courtesy of SUBARU OF AMERICA, INC.
