SUBARU Select Monitor

  1. After clearing the memory, check for any remaining trouble data unresolved. < Ref. to , CLEAR MEMORY MODE . >
  2. Warm up the engine.
  3. Prepare the Subaru Select Monitor kit. < Ref. to , PREPARATION TOOL , General Descriptions

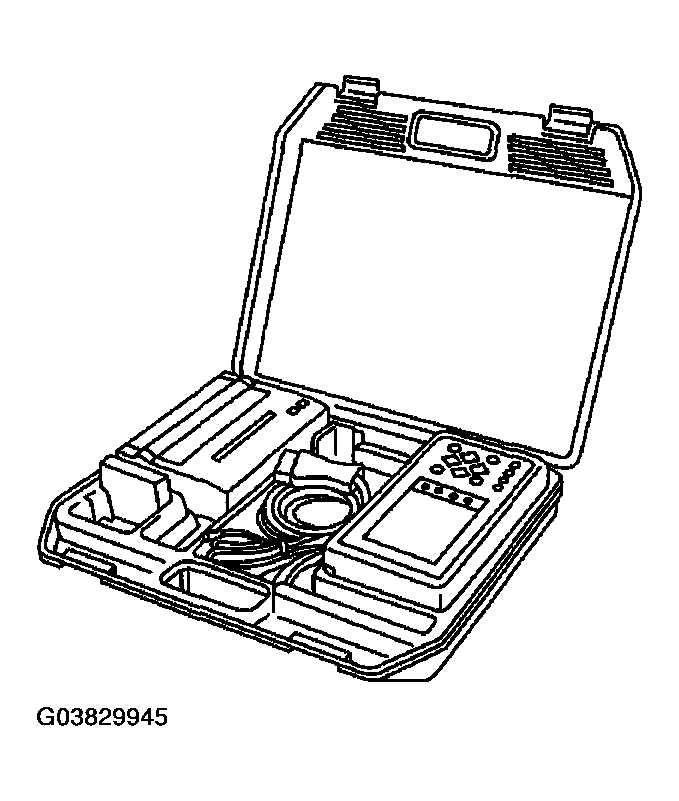

    Fig 1: Identifying Subaru Select Monitor Kit
    G03829945Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the diagnosis cable to Subaru Select Monitor.
  5. Insert the cartridge into Subaru Select Monitor. < Ref. to , PREPARATION TOOL , General Description. >
    Fig 2: Inserting Cartridge Into Subaru Select Monitor
    G03829946Courtesy of SUBARU OF AMERICA, INC.
  6. Connect the test mode connector (A) at the lower portion of glove box.

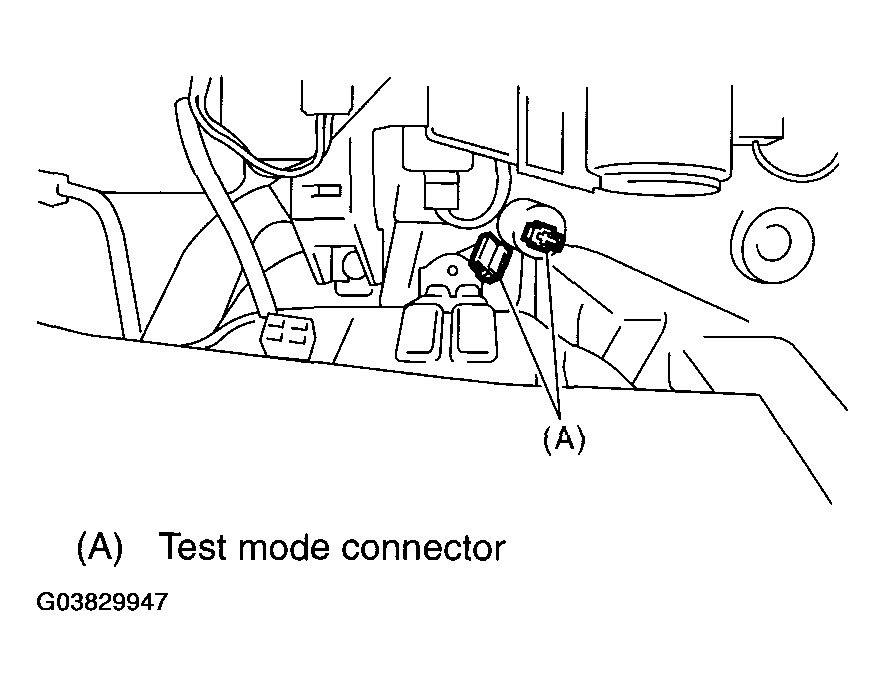

    Fig 3: Connecting Test Mode Connector At Lower Portion Of Glove Box
    G03829947Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the Subaru Select Monitor to data link connector located in the lower portion of the instrument panel (on the driver's side).

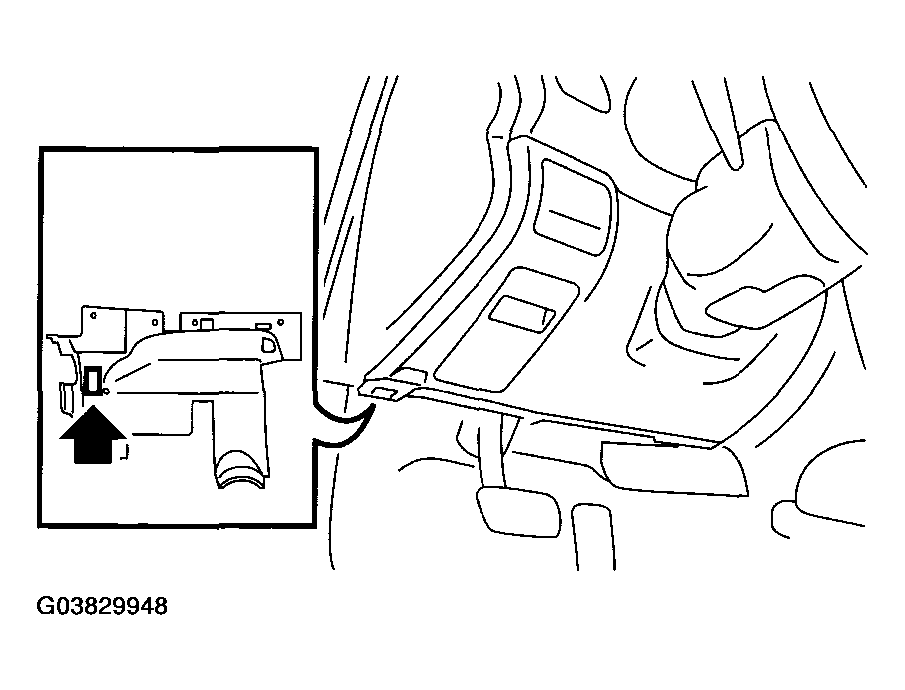

    Fig 4: Identifying Data Link Connector Location
    G03829948Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.
  8. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
    Fig 5: Identifying Power Switch
    G03829949Courtesy of SUBARU OF AMERICA, INC.
  9. On the << Main Menu>> display screen, select the {2. Each System Check} and press the [YES] key.
  10. On the << System Selection Menu>> display screen, select the {Engine Control System} and press the [YES] key.
  11. Press the [YES] key after the information of engine type is displayed.
  12. On the << Engine Diagnosis>> display screen, select the {Dealer Check Mode Procedure} and press the [YES] key.
  13. When the "Perform Inspection (Dealer Check) Mode?" is shown on the display screen, press the [YES] key.
  14. Perform subsequent procedures as instructed on the display screen.
    • If trouble still remains in the memory, the corresponding DTC appears on the display screen.
    NOTE:
    • For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL .
    • For detailed concerning the DTC, refer to the List of Diagnostic Trouble Code (DTC).

      < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >

    • Release the parking brake.
    • The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis function. < Ref. to CLEAR MEMORY MODE . >
