Front Door Glass

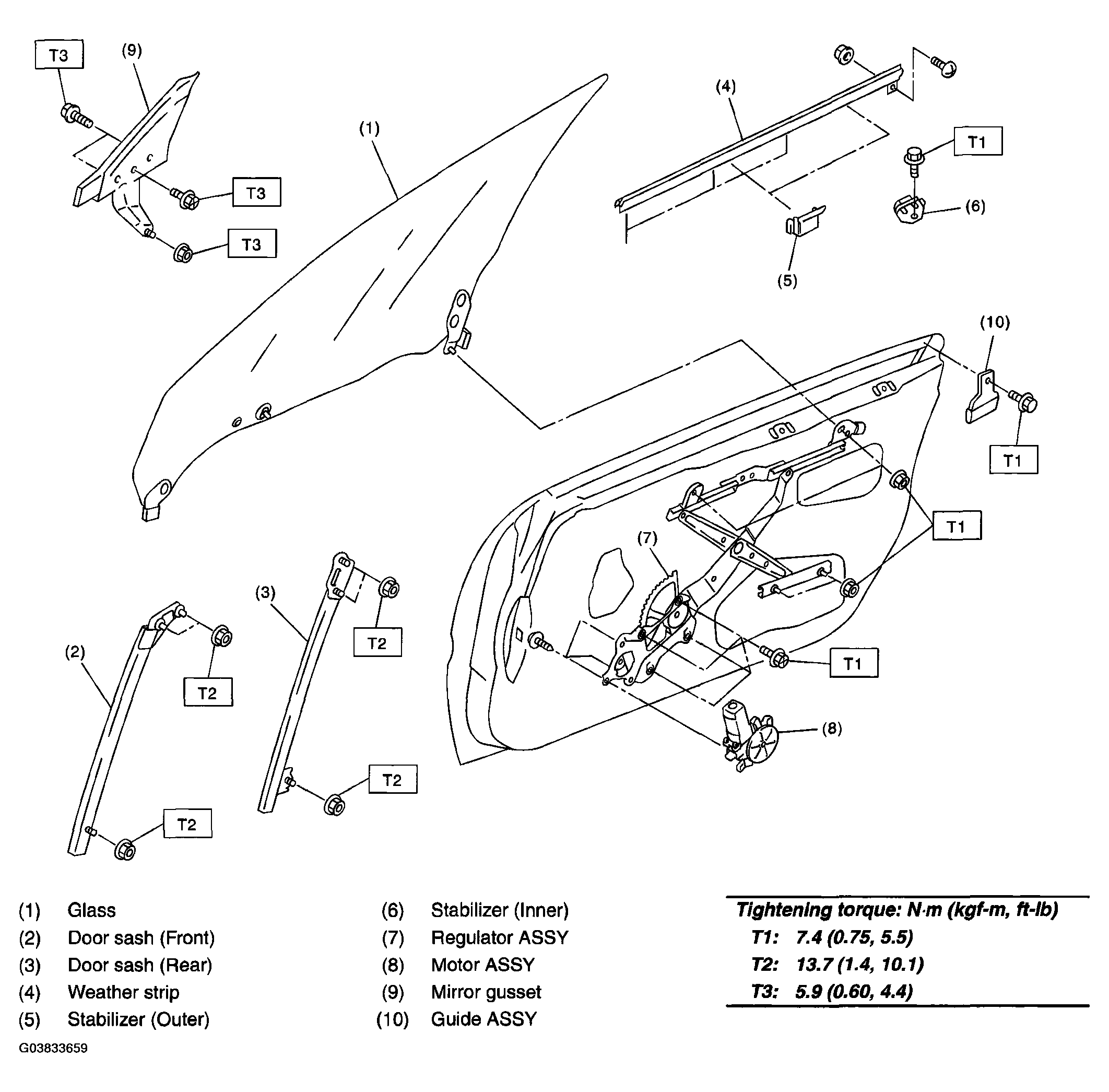

Fig 1: Exploded View Of Front Door Glass

G03833659

Courtesy of SUBARU OF AMERICA, INC.
