AT Shift Lock Solenoid and "P" Range Switch: Removal

Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the connector.
Remove the indicator bulb.

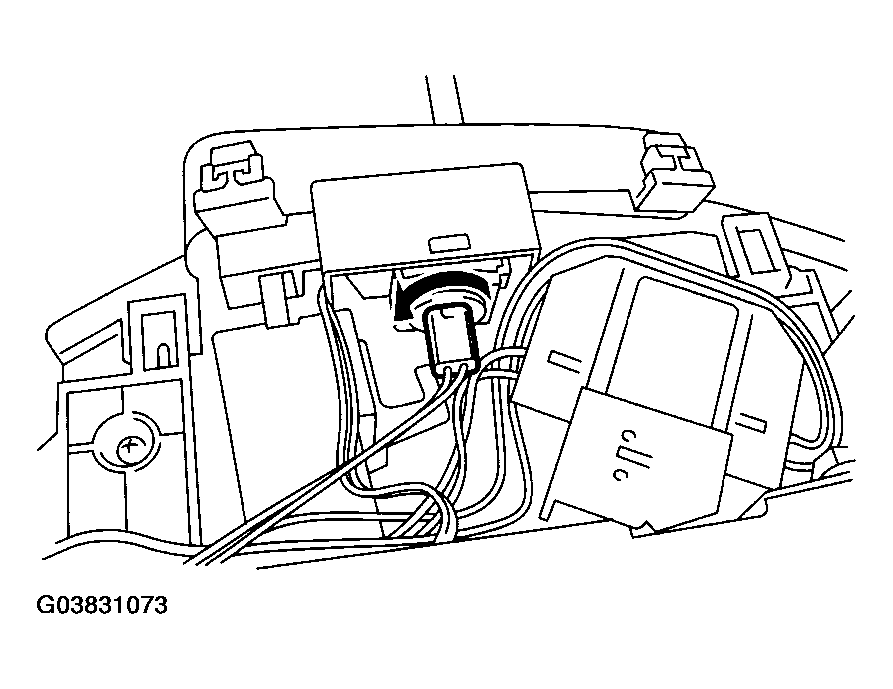

Fig 1: Turning Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the grip.
Remove the indicator cover.

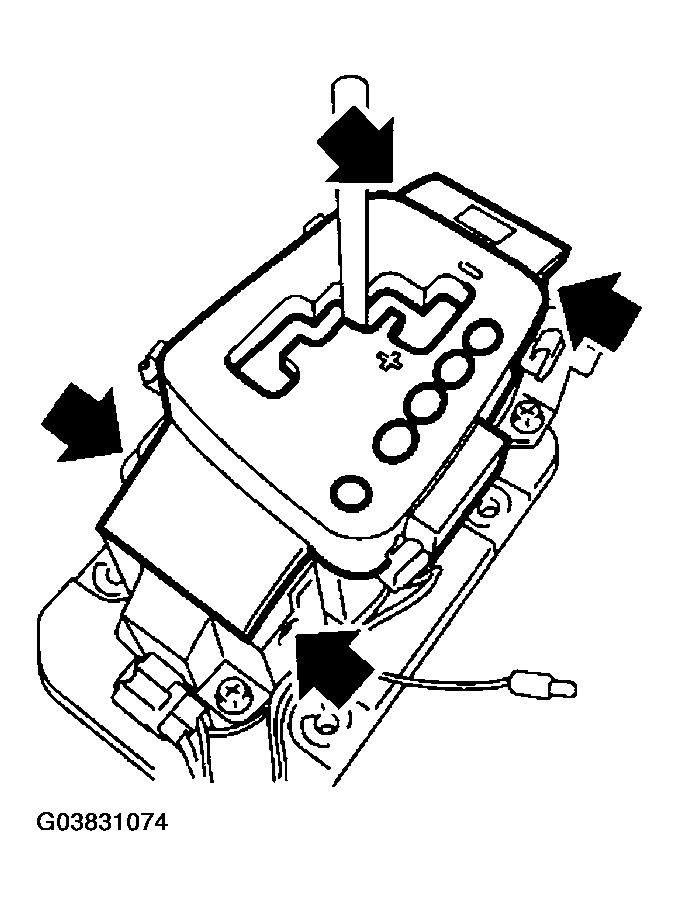

Fig 2: Removing Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the connector from guide plate upper.

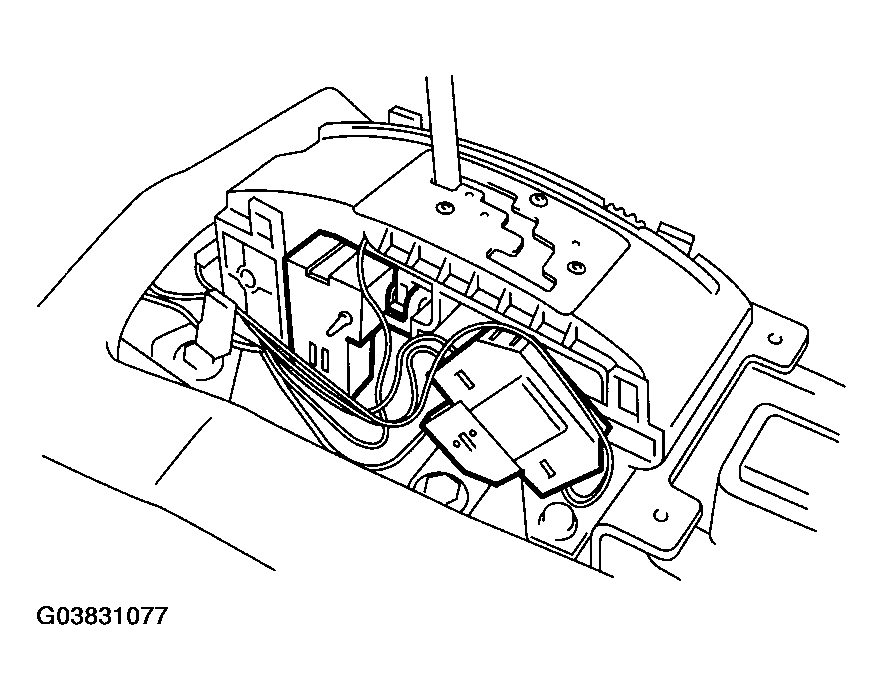

Fig 3: Removing Connector
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to "N" range, and remove the detent spring.

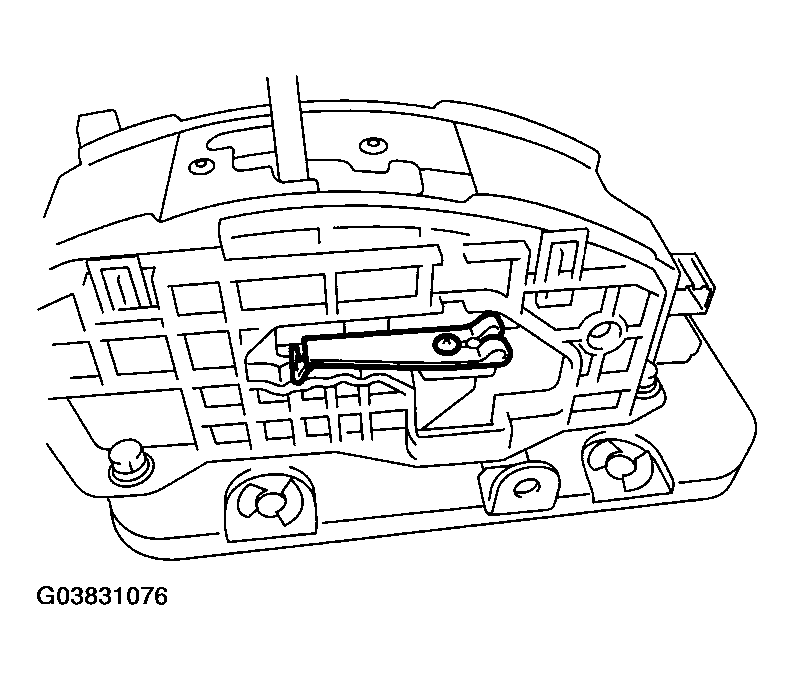

Fig 4: Removing Detent Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the switch assembly and shift lock solenoid assembly.

Fig 5: Removing Shift Lock Solenoid Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt to remove guide plate upper (A).

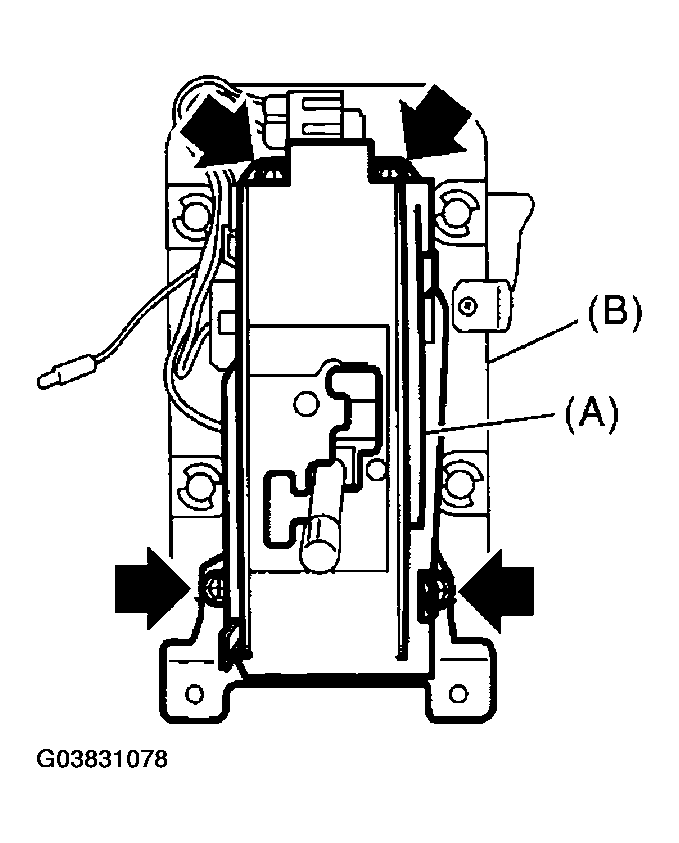

Fig 6: Removing Bolt And Guide Plate Upper
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of connector.

Fig 7: Identifying Claw Of Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the terminal of "P" range switch from connector, using a flat-tip screwdriver with thin tip.

Fig 8: Disconnecting Terminal Using Flat-Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
