AT Shift Lock Solenoid and "P" Range Switch: Installation

Install in the reverse order of removal.

NOTE:

For each tightening torque, refer to AT SELECT LEVER , COMPONENT, General Description. >
Connect the "P" range switch terminal to connector.

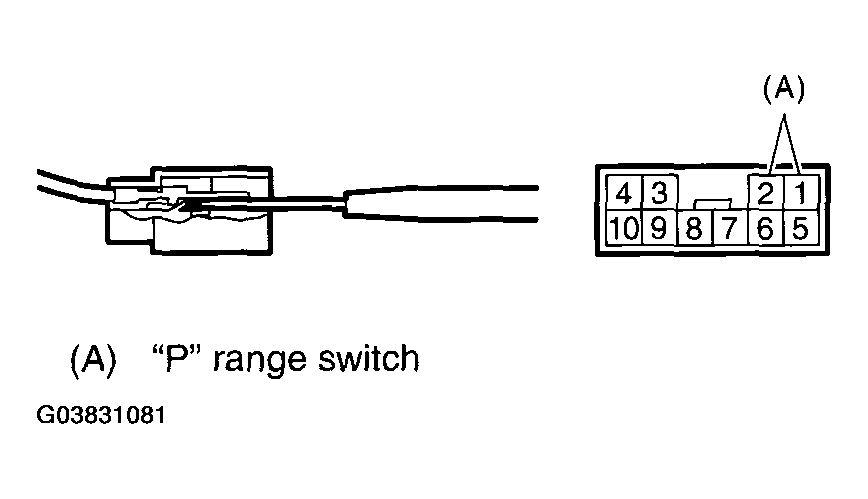

Fig 1: Connecting Switch Terminal Connector
Courtesy of SUBARU OF AMERICA, INC.
