Section 19 (Cooling System (H6DO)): General Description: Specification
WARNING: This page is about a different variant/trim than selected.
COOLING SYSTEM SPECIFICATION

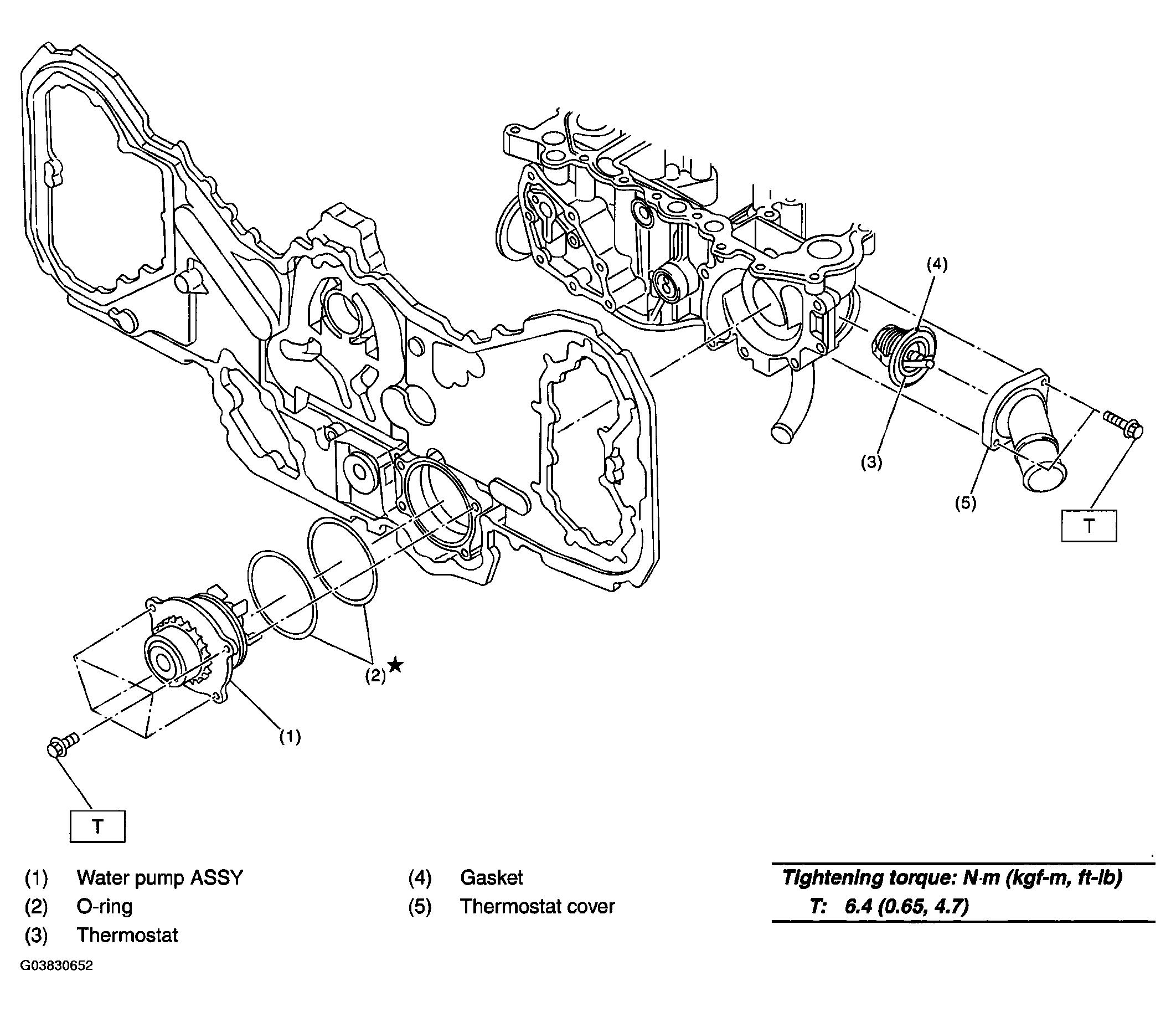

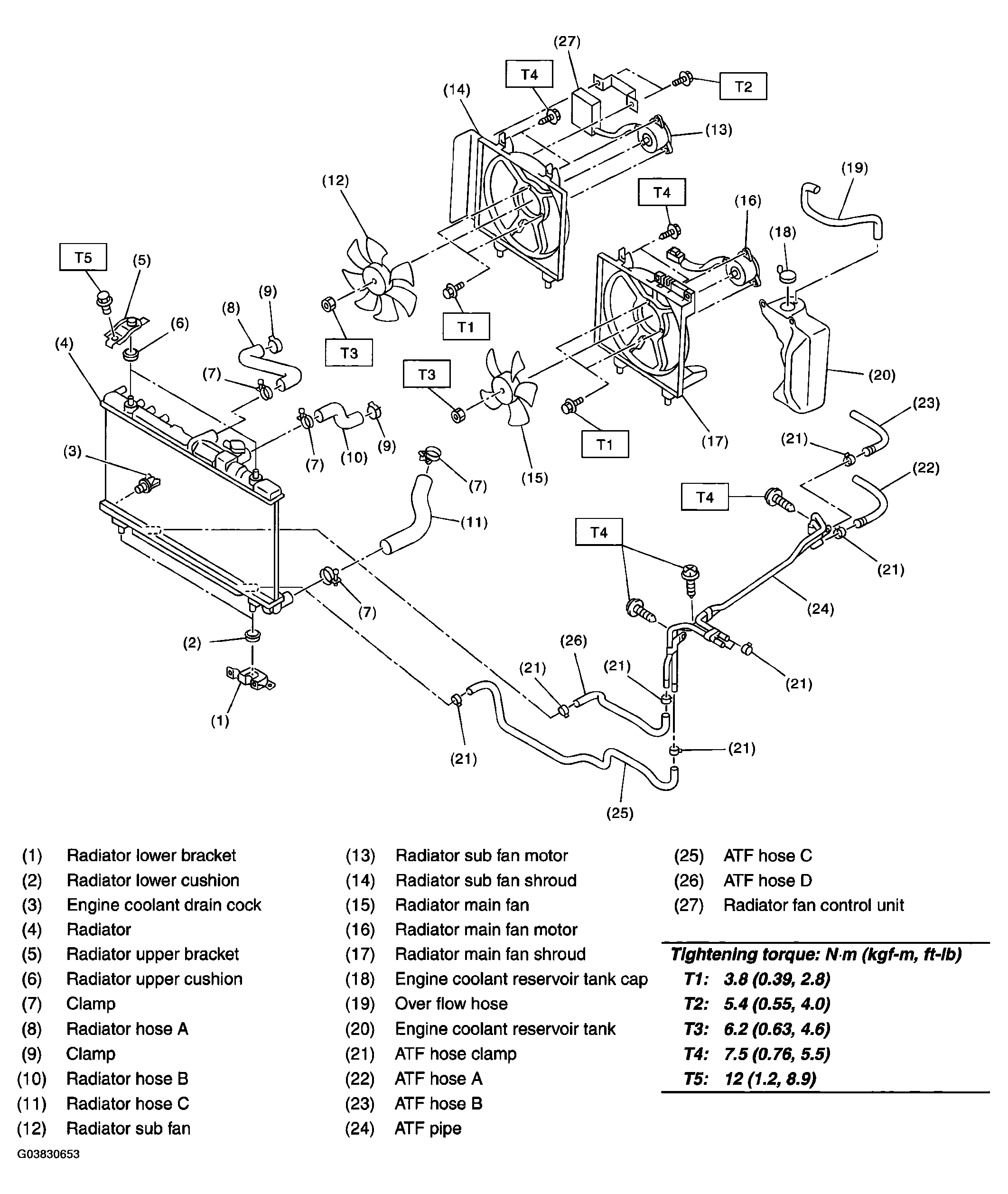

| Cooling system | Electric fan + Forced engine coolant circulation system | ||||
|---|---|---|---|---|---|
| Total engine coolant capacity | Lambda (US qt, Imp qt) | Approx. 7.2 (7.6, 6.3) | |||
| Water pump | Type | Centrifugal impeller type | |||
| Discharge performance I | Discharge amount Lambda (US gal, Imp gal)/min |
320 (84.5, 70.4) | |||
| Pump speed - Discharge pressure | 5,500 RPM - 176.5 kPa (18 mAq) | ||||
| Engine coolant temperature | 80°C (176°F) | ||||
| Impeller diameter | mm (in) | 73.2 (2.88) | |||
| Number of impeller vanes | 6 | ||||
| Number of pump sprocket teeth | 22 | ||||
| Thermostat | Type | Wax pellet type | |||
| Starting temperature to open | 80 - 84°C (176 - 183°F) | ||||
| Fully opens | 95°C (203°F) | ||||
| Valve lift | mm (in) | 9.0 (0.354) or more | |||
| Valve bore | mm (in) | 35 (1.38) | |||
| Radiator fan | Motor input | Main fan | W | 160 | |
| Sub fan | W | 160 | |||
| Fan diameter / Blades | Main fan | 320 mm (12.60 in) /5 | |||
| Sub fan | 320 mm (12.6 in) /7 | ||||
| Radiator | Type | Down flow, pressure type | |||
| Core dimensions | Width x Height x Thickness | mm (in) | 690 x 349 x 16 (27.17 x 13.74 x 0.63) | ||
| Pressure range in which cap valve is open | kPa (kg/cm2 , psi) | Above: 108+/-15 (1.1+/-0.15, 16+/-2) Below: The atmospheric pressure or less |
|||
| Fins | Corrugated fin type | ||||
| Reservoir tank | Capacity | Lambda (US qt, Imp qt) | 0.45 (0.48, 0.40) | ||

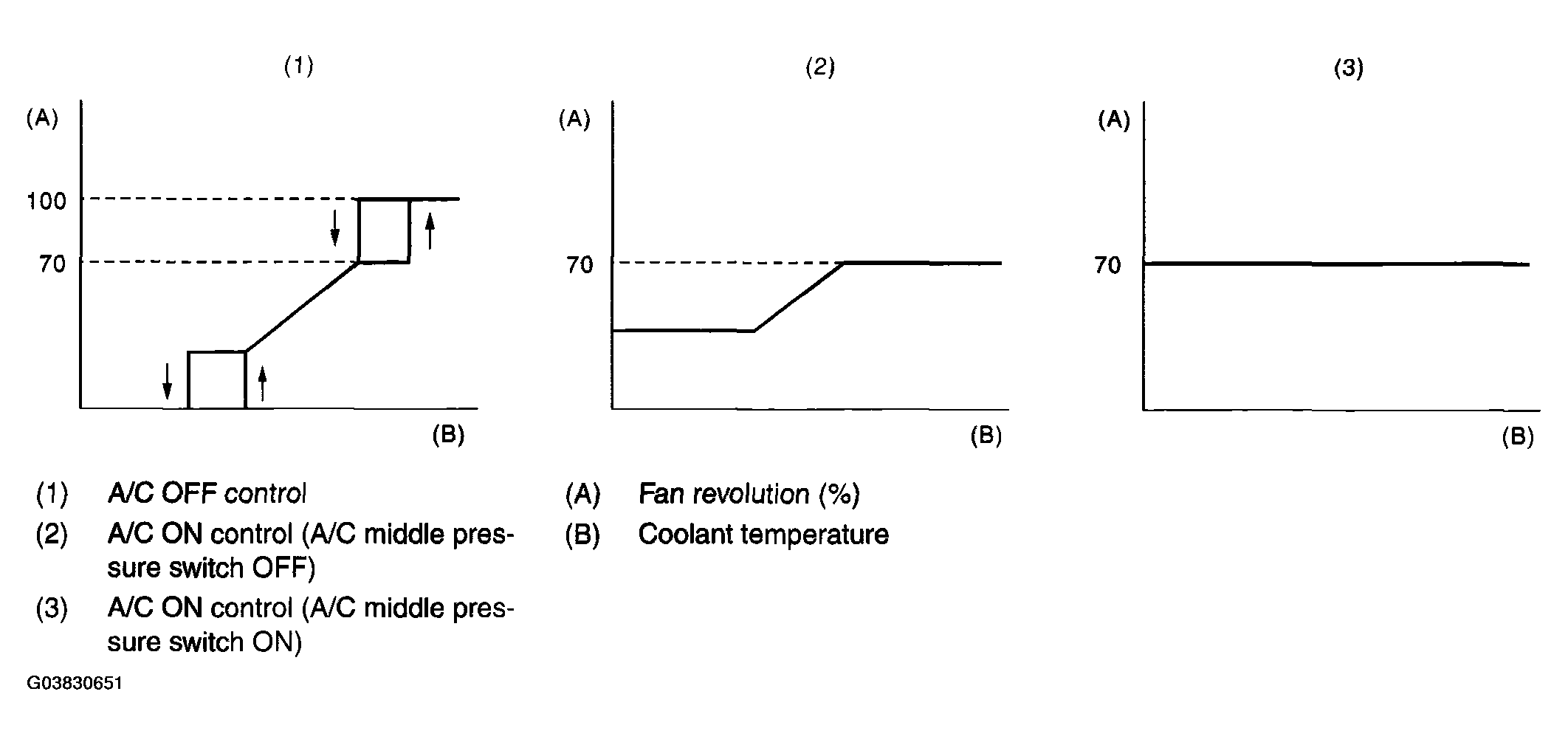

COOLANT TEMPERATURE REFERENCE
| A/C compressor | A/C middle pressure switch | Coolant temperature | ||
| Increase: less than 95°C (203°F) Decrease: less than 93°C (199°F) |
Increase: 95 - 101°C (203 - 214°F) Decrease: 93 - 99°C (199 - 210°F) |
Increase: 102°C (216°F) or more Decrease: 100°C (212°F) or more |
||
| OFF | 0% | Refer to Fig 1 | 100% | |
| ON | OFF | Refer to Figure | 100% | |
| ON | Refer to Figure | 100% | ||
