Components With Torque Specifications: Starter

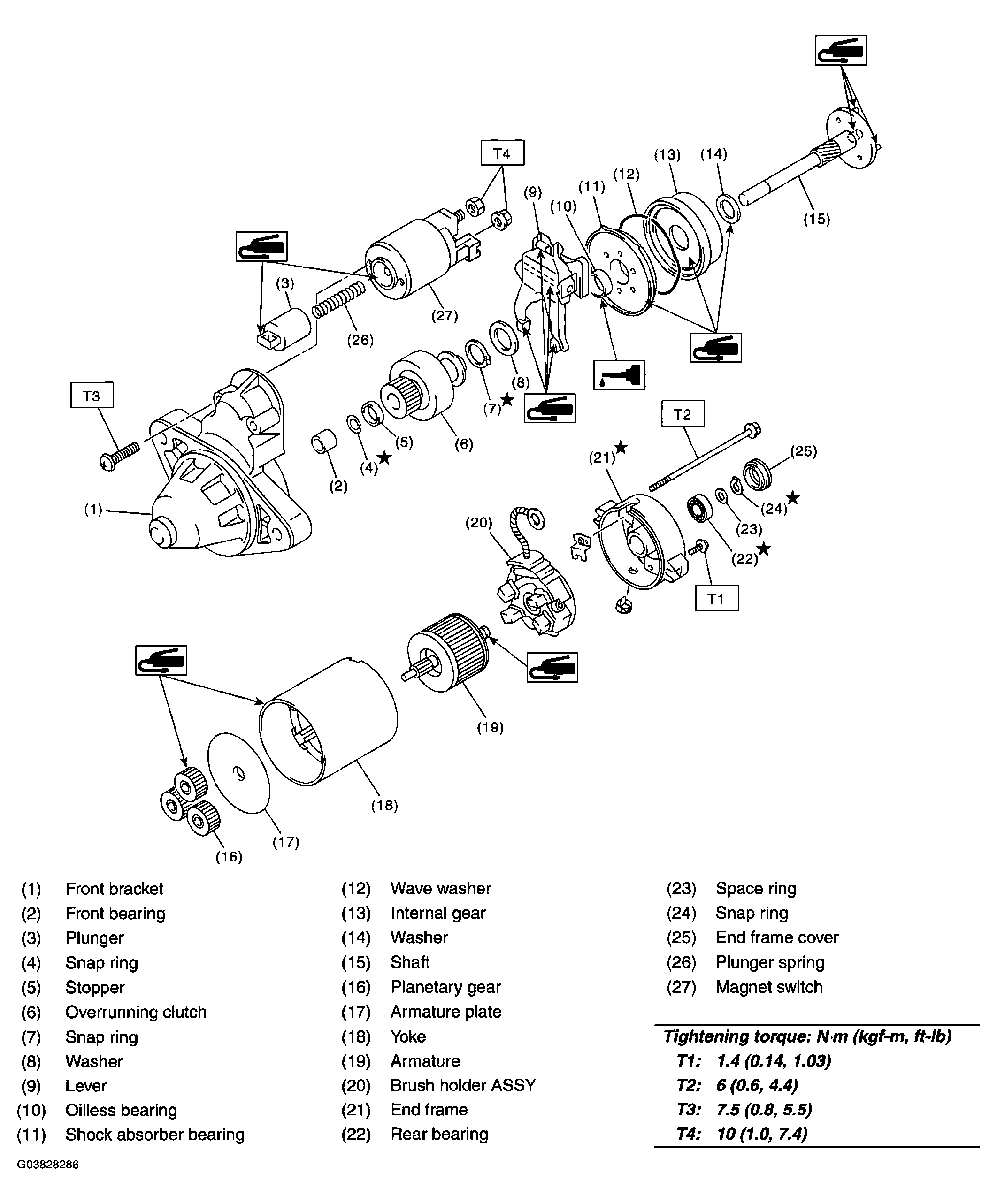

Fig 1: Starter Components With Torque Specifications

G03828286

Courtesy of SUBARU OF AMERICA, INC.
