Brakes
>>
Traction Control
>>
Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
>>
VDC Sequence Control
>>
Operation
>>
Conditions For VDC Sequence Control
Conditions For VDC Sequence Control

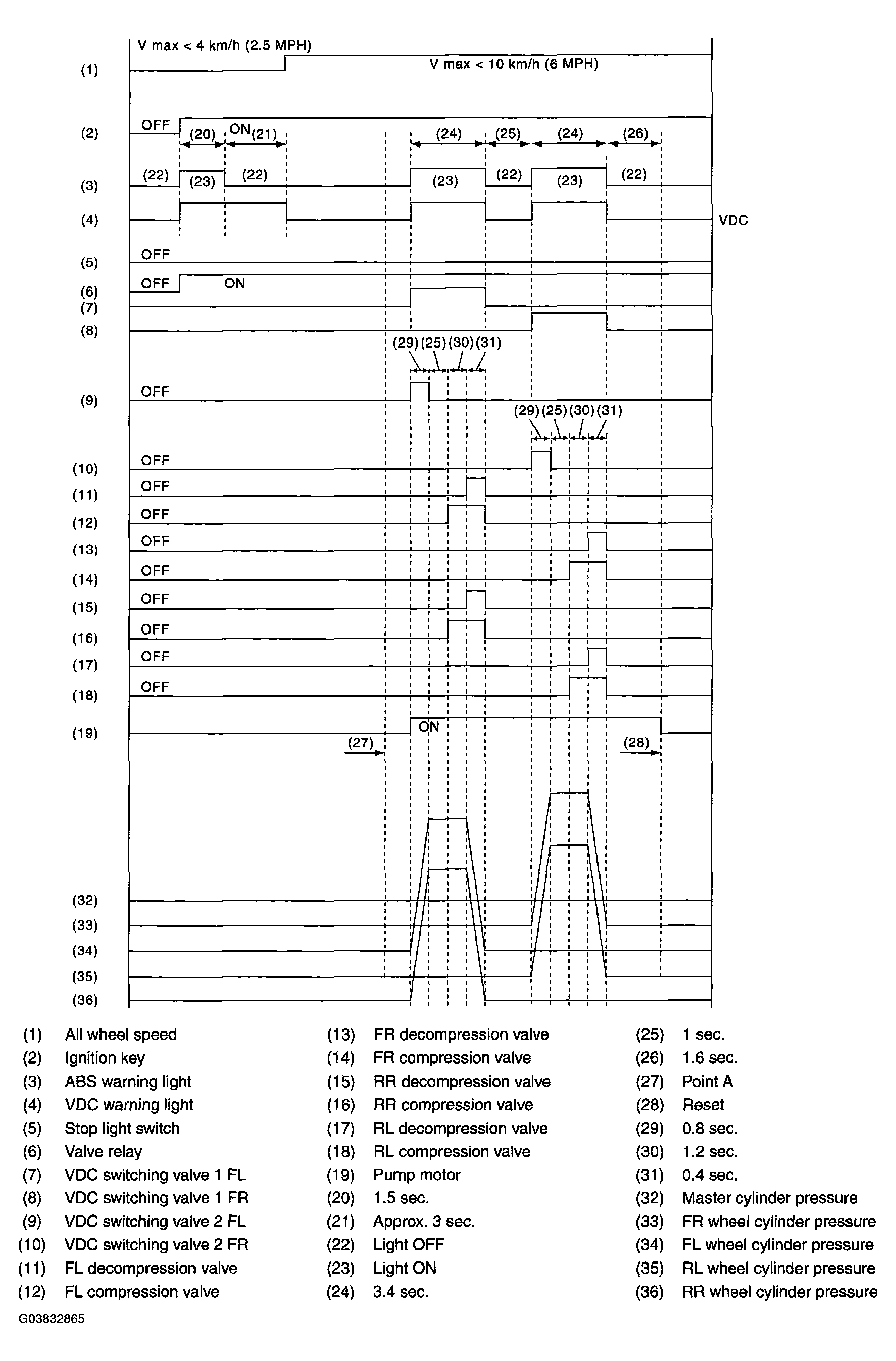

Fig 1: Identifying Conditions For VDC Sequence Control
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts from point A.
Courtesy of SUBARU OF AMERICA, INC.
