2.5 L (Turbo) Model

Protect the radiator with cardboard and blanket.
Remove the V-belts. < Ref. to V-BELT . >
Remove the A/C compressor V-belt tensioner.
Remove the pulley bolt. Use the ST to lock crankshaft.
ST 499977100 CRANK PULLEY WRENCH

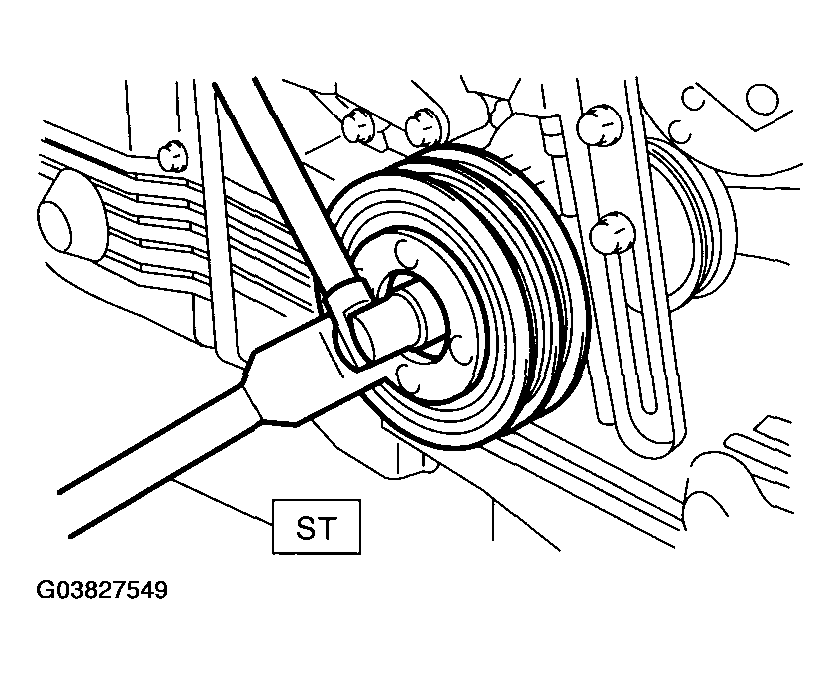

Fig 1: Removing V-Belts Using ST 499977100 Crank Pulley Wrench
Courtesy of SUBARU OF AMERICA, INC.
Remove the crank pulley.
Remove the belt cover (LH).
Remove the belt cover (RH).
Remove the front belt cover.
Remove the timing belt guide.

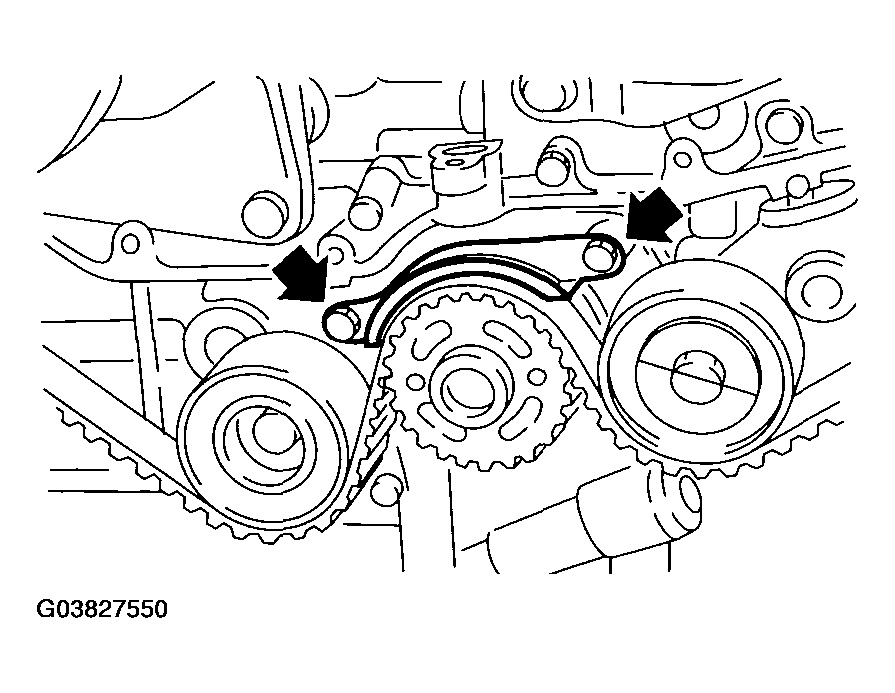

Fig 2: Removing Crank Pulley
Courtesy of SUBARU OF AMERICA, INC.
- MT model

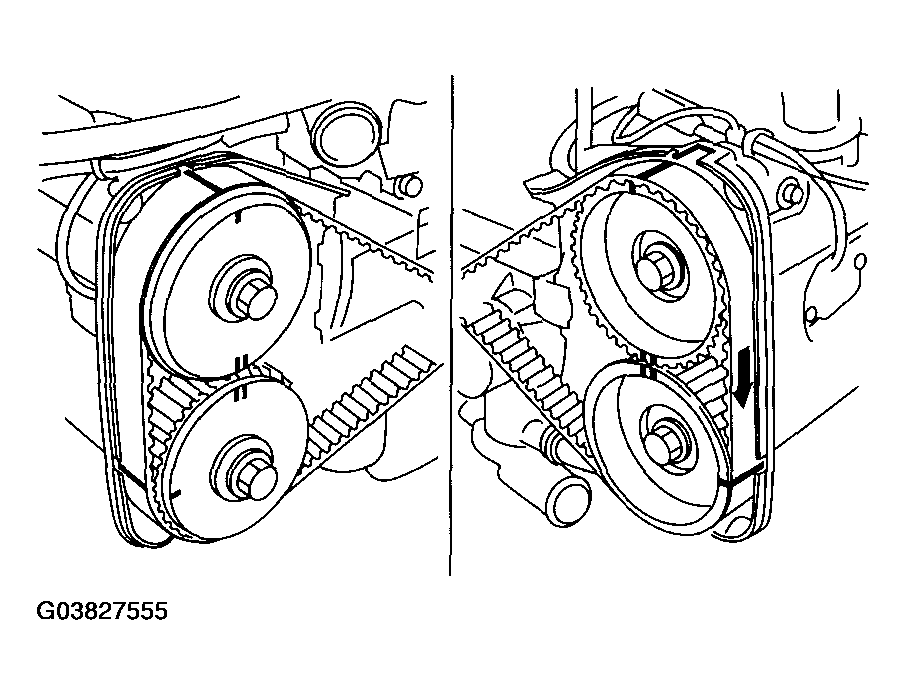

  Fig 3: Removing Belt Cover (LH)
  Courtesy of SUBARU OF AMERICA, INC.

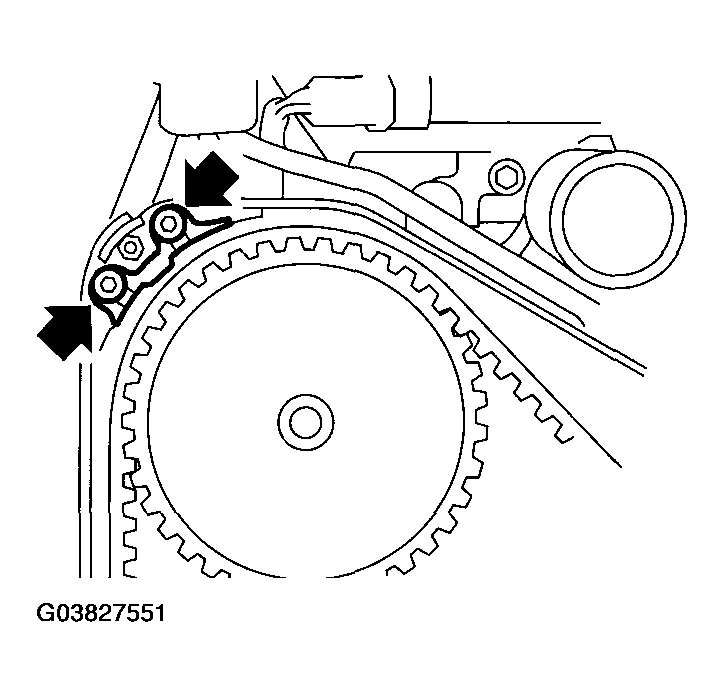

  Fig 4: Removing Belt Cover (RH)
  Courtesy of SUBARU OF AMERICA, INC.

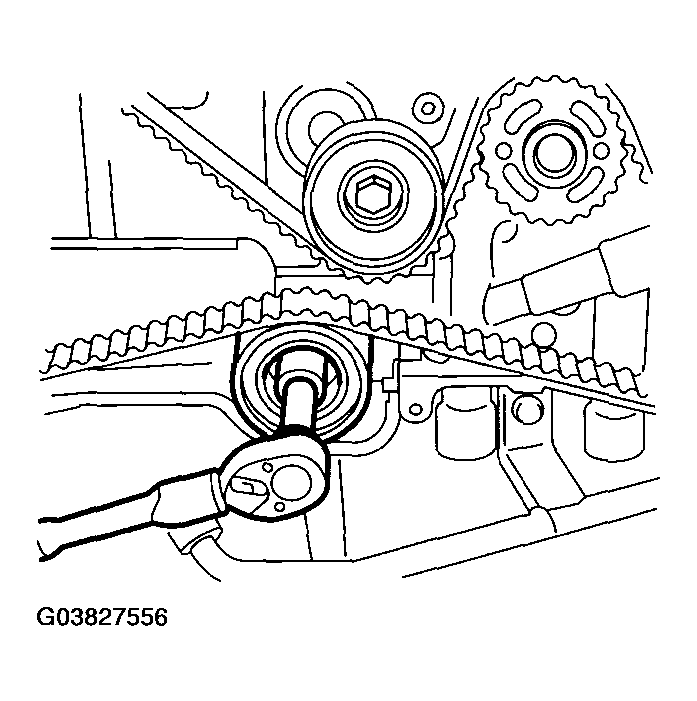

  Fig 5: Removing Front Belt Cover
  Courtesy of SUBARU OF AMERICA, INC.
Turn the crankshaft and align the alignment marks on crankshaft, and left and right cam sprockets with notches of belt cover and cylinder block. Use the ST to turn crankshaft.
ST 499987500 CRANKSHAFT SOCKET

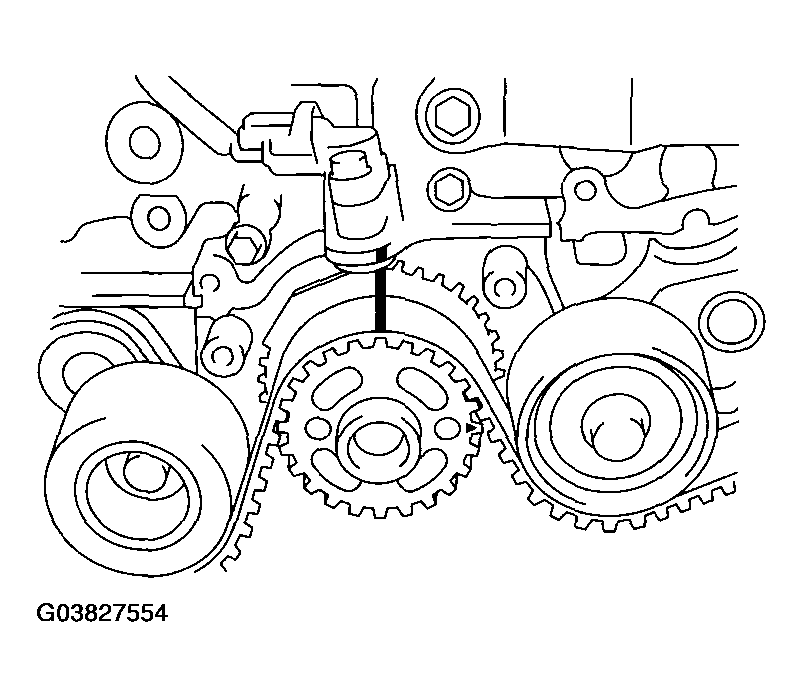

Fig 6: Aligning Marks On Crankshaft With Notches Of Belt Cover And Cylinder Block Using ST 499987500 Crankshaft Socket
Courtesy of SUBARU OF AMERICA, INC.

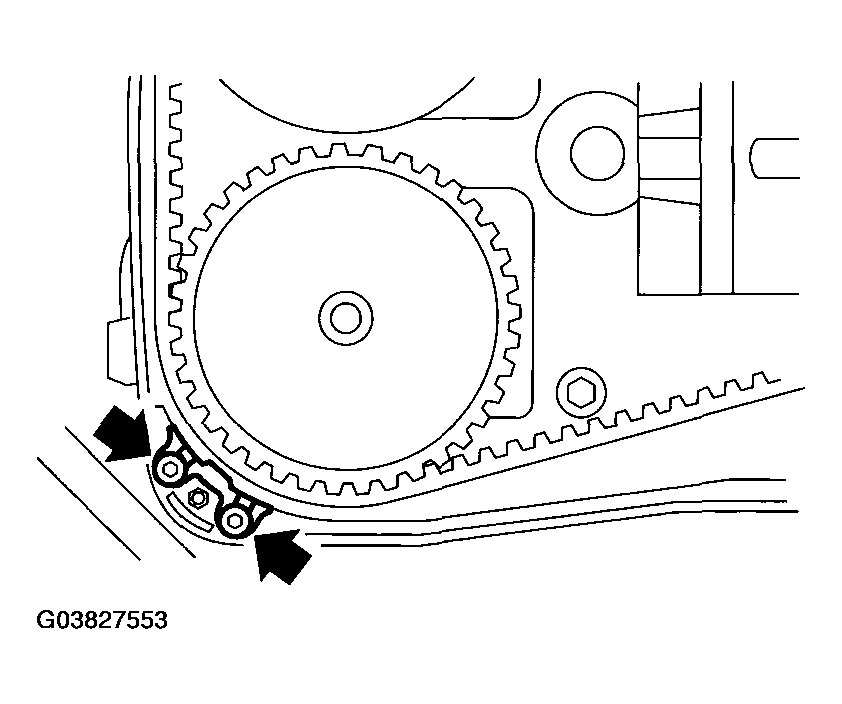

Fig 7: Aligning Marks On Left And Right Cam Sprockets With Notches Of Belt Cover And Cylinder Block Using ST 499987500 Crankshaft Socket
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt idler.

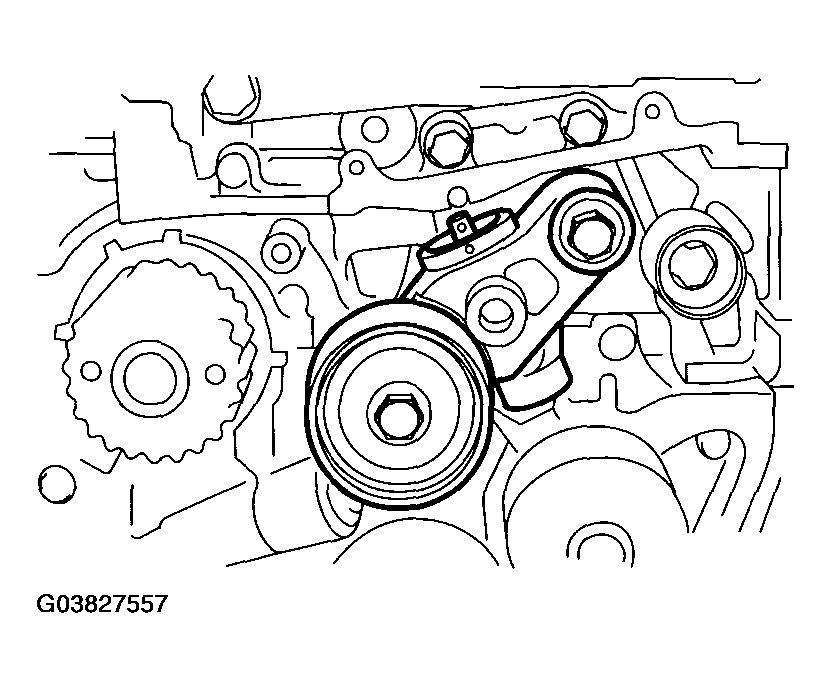

Fig 8: Removing Belt Idler
Courtesy of SUBARU OF AMERICA, INC.
Remove the timing belt.
Remove the automatic belt tension adjuster assembly.

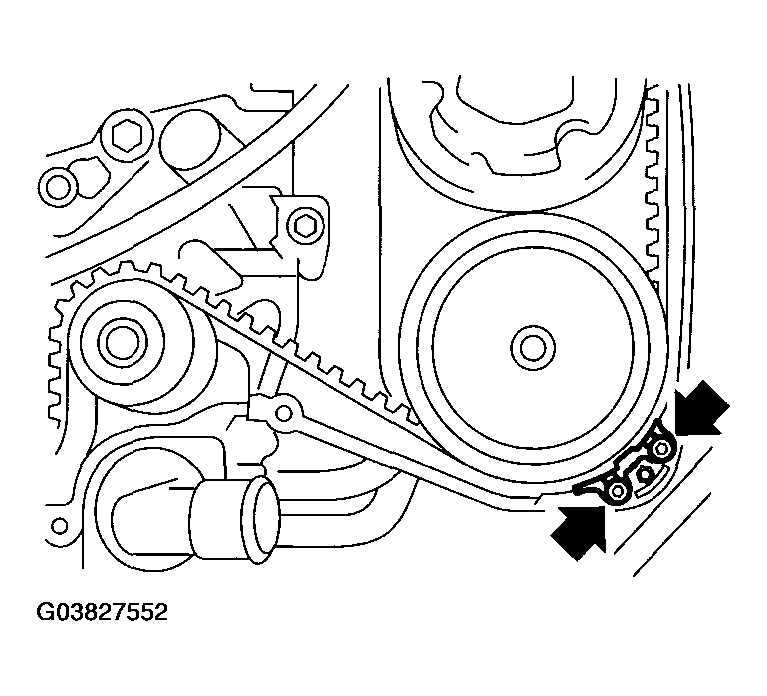

Fig 9: Removing Automatic Belt Tension Adjuster Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install in the reverse order of removal. < Ref. to TIMING BELT . >

CAUTION: When installing the timing belt, be sure to align all alignment marks on the belt with corresponding marks on the sprockets. If incorrectly installed, interference between pistons and valves may occur.
