Valve Rocker Assembly: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of valve rocker assembly
    1. Temporarily tighten bolts (a) through (d) in alphabetical order equally as shown. See Fig 1.
      NOTE: Do not allow valve rocker assembly to damage knock pins.
    2. Tighten bolts (e) through (h) in alphabetical order to specified torque.
    3. Tighten bolts (a) through (d) in alphabetical order to specified torque.

    Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

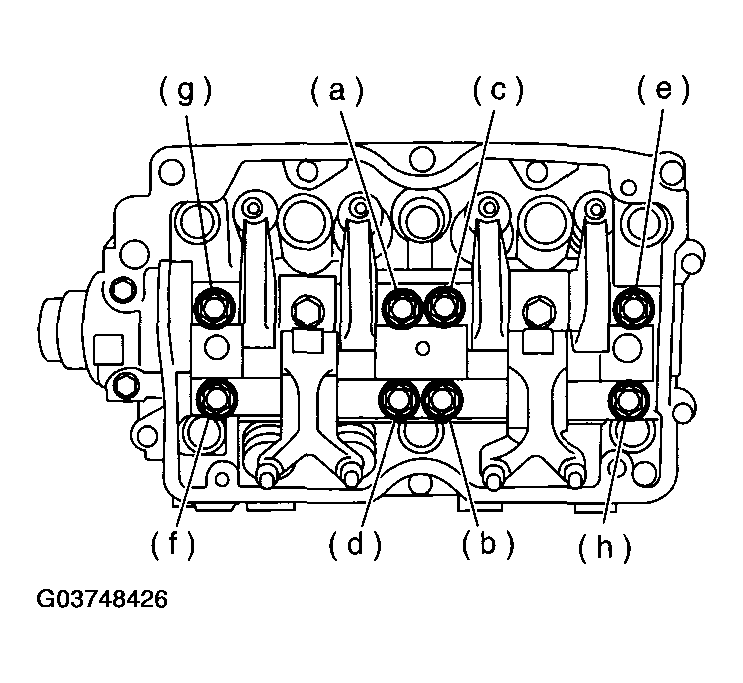

    Fig 1: Tightening Valve Rocker Assembly Bolt In Alphabetical Sequence
    G03748426Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearances. Refer to ADJUSTMENT , Valve Clearance.
  3. Install rocker cover and connect PCV hose.
  4. Install camshaft sprocket. Refer to INSTALLATION , Camshaft Sprocket.
  5. Install timing belt. Refer to INSTALLATION , Timing Belt.
  6. Install timing belt cover. Refer to INSTALLATION , Timing Belt Cover.
  7. Install crankshaft pulley. Refer to INSTALLATION , Crankshaft Pulley.
  8. Install V-belt. Refer to INSTALLATION , V-belt.
