Engine Assembly: Removal: Notes

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the vehicle on a lift.
  2. Open front hood fully and support with stay.
  3. Raise rear seat, and turn floor mat up.
  4. Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
  5. Remove filler cap.
  6. Collect refrigerant, and remove pressure hoses (With A/C). Refer to REMOVAL , Flexible Hose.
  7. Disconnect battery ground cable.

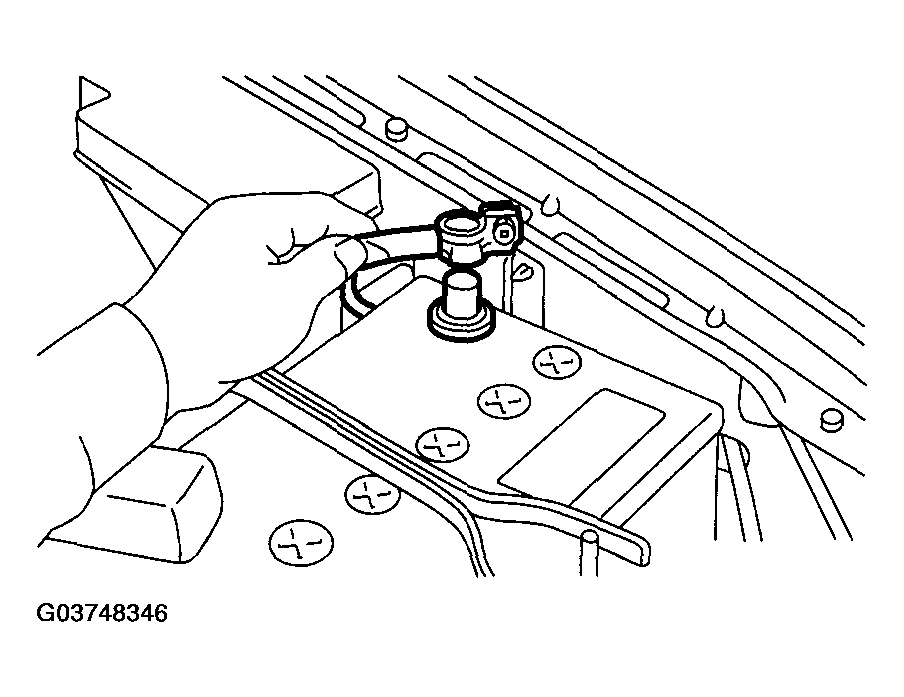

    Fig 1: Disconnecting Battery Ground Cable
    G03748346Courtesy of SUBARU OF AMERICA, INC.
  8. Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct, also see REMOVAL , Air Cleaner Case.
  9. Remove under cover.
  10. Remove radiator from vehicle. Refer to REMOVAL , Radiator.
  11. Remove ATF cooler pipe from body. Refer to REMOVAL , ATF Cooler Pipe and Hose.
  12. Remove air cleaner case stay.
