Rear Turn Signal Light Bulb: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination light assembly. < Ref. to , REMOVAL , Rear Combination Light Assembly. >
  2. Turn the socket and remove the bulb.

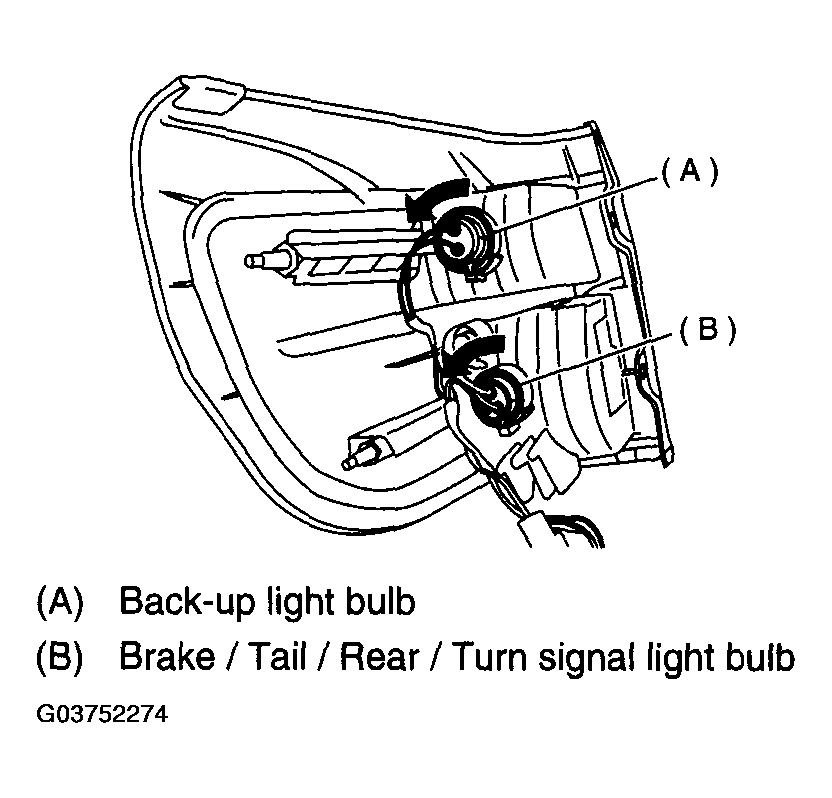

    Fig 1: Removing Rear Turn Signal Light Bulb
    G03752274Courtesy of SUBARU OF AMERICA, INC.
