Section 10 (Cooling System (H4SO)): General Description: Preparation Tool

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

PREPARATION TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	499977100	CRANK PULLEY WRENCH	Used for fixing crankshaft pulley when loosening and tightening crankshaft pulley bolts.
Fig 2	18231AA010	CAMSHAFT SPROCKET WRENCH	Used for removing and installing camshaft sprocket. Camshaft sprocket wrench (499207100) is also available.

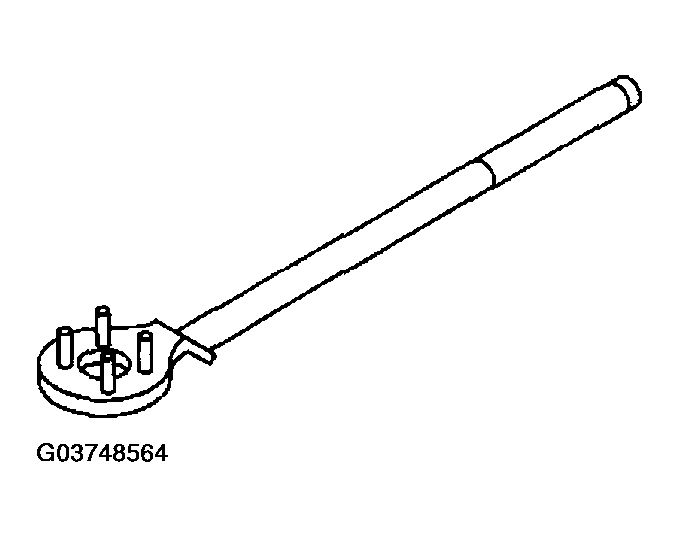

Fig 1: Identifying Special Tool ST-499977100

Courtesy of SUBARU OF AMERICA, INC.

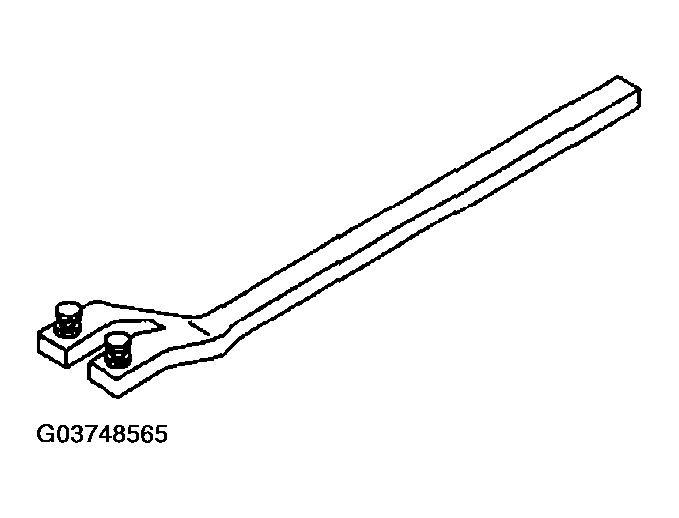

Fig 2: Identifying Special Tool ST18231AA010

Courtesy of SUBARU OF AMERICA, INC.
