RH Side

  1. Disconnect the ground cable from battery.

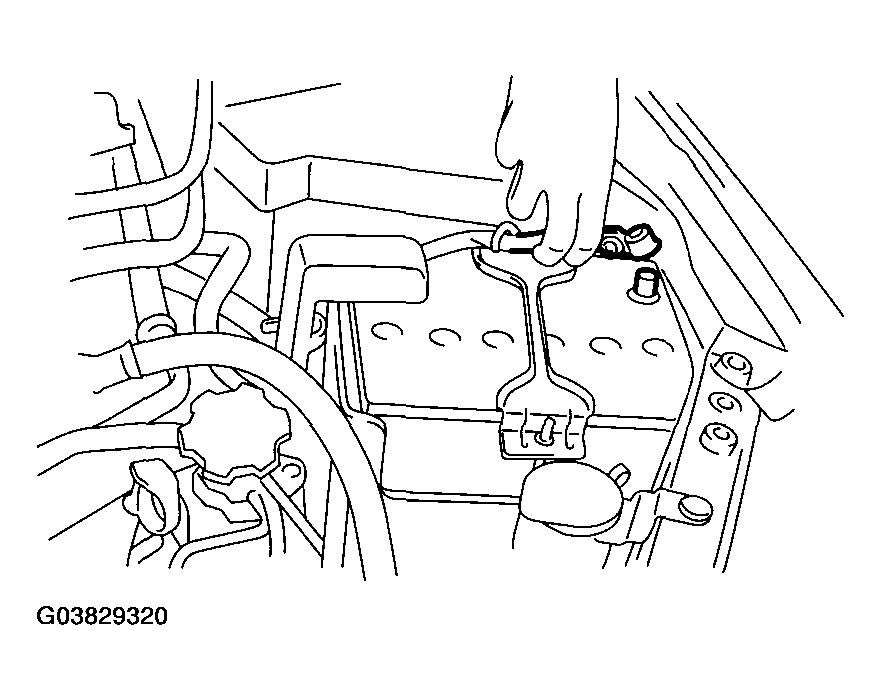

    Fig 1: Disconnecting Ground Cable From Battery
    G03829320Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from tumble generator valve actuator RH.
  3. Remove the tumble generator valve actuator RH.

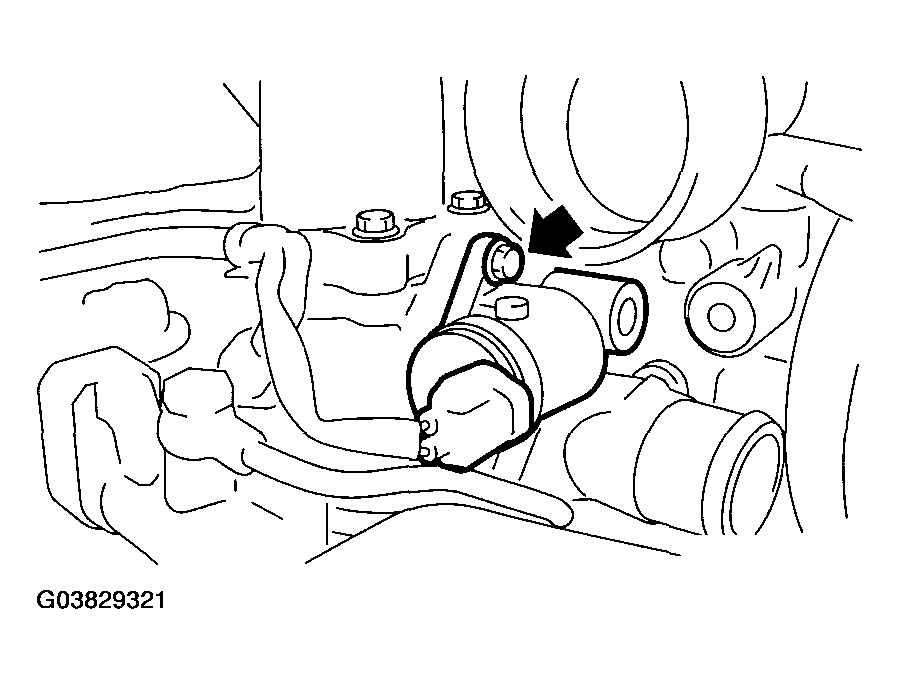

Fig 2: Removing Tumble Generator Valve Actuator RH
G03829321Courtesy of SUBARU OF AMERICA, INC.
