Special Tool

SPECIAL TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	499977100	CRANK PULLEY WRENCH	Used for stopping rotation of crank pulley when removing and tightening crank pulley bolt.
Fig 2	498547000	OIL FILTER WRENCH	Used for removing and installing oil filter. (Outer diameter: 80 mm (3.15 in))
Fig 3	18332AA000	OIL FILTER WRENCH	Used for removing and installing oil filter. (Outer diameter: 68 mm (2.68 in))
Fig 4	18332AA010	OIL FILTER WRENCH	Used for removing and installing oil filter. (Outer diameter: 65 mm (2.56 in))
Fig 5	499587100	OIL SEAL INSTALLER	Used for installing oil seal into oil pump.

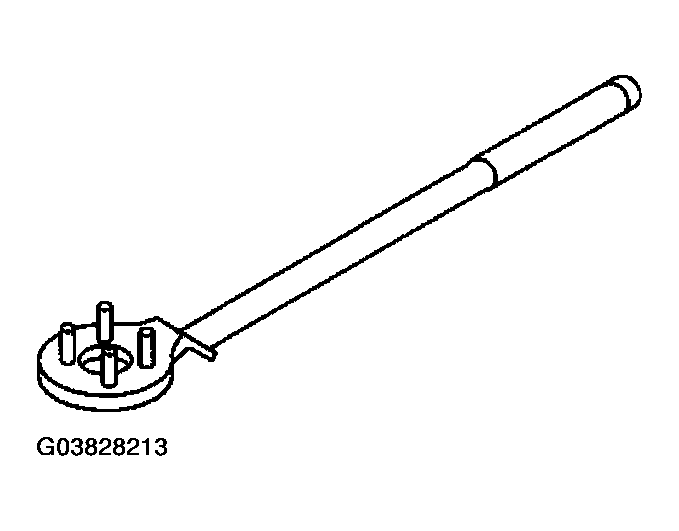

Fig 1: Identifying Special Tool ST-499977100

G03828213

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Special Tool ST-498547000

G03828214

Courtesy of SUBARU OF AMERICA, INC.

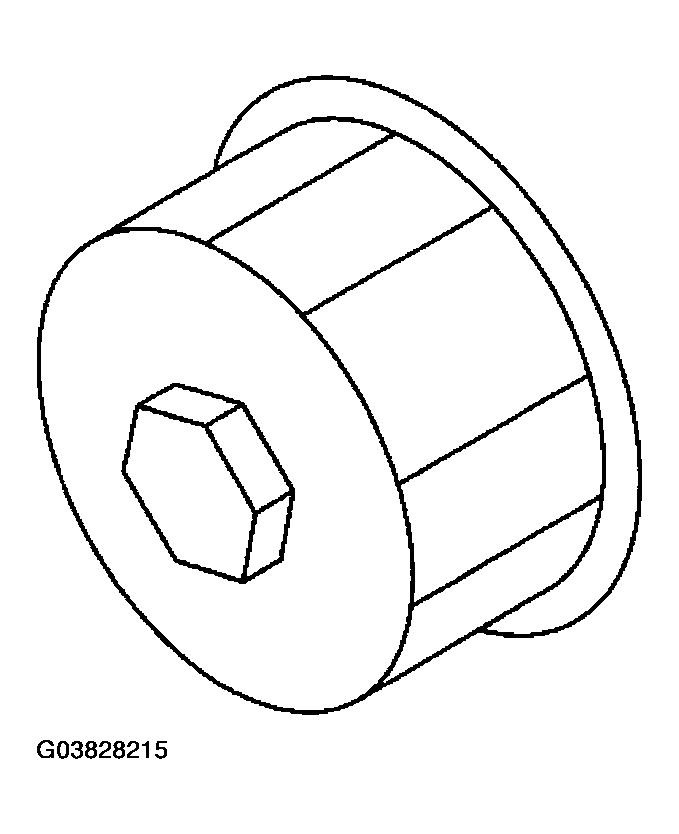

Fig 3: Identifying Special Tool ST-18332AA000

G03828215

Courtesy of SUBARU OF AMERICA, INC.

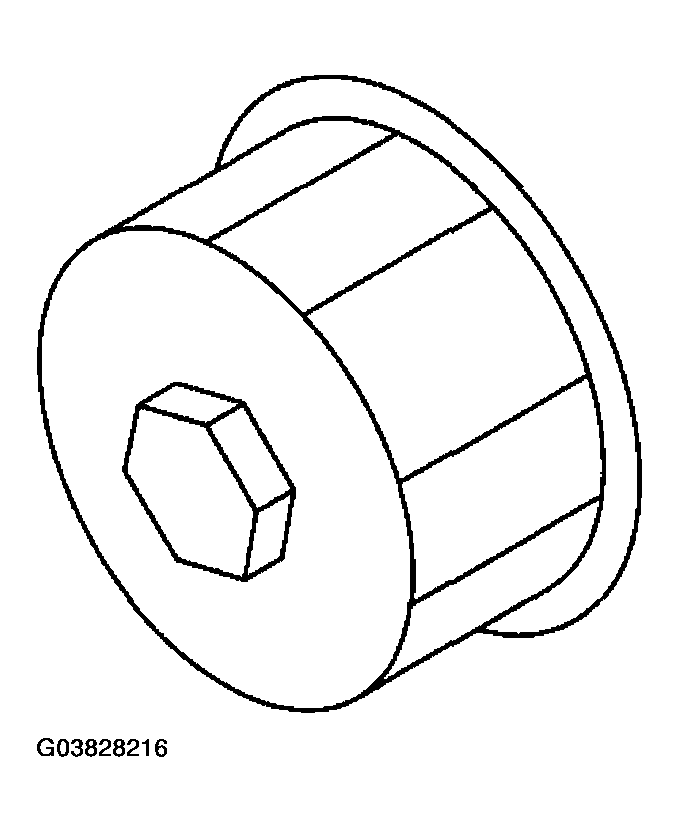

Fig 4: Identifying Special Tool ST-18332AA010

G03828216

Courtesy of SUBARU OF AMERICA, INC.

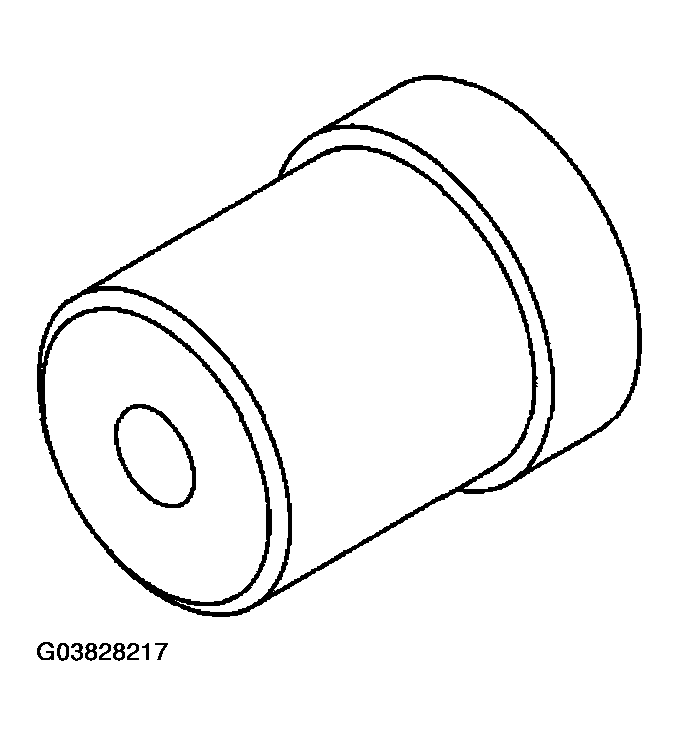

Fig 5: Identifying Special Tool ST-499587100

G03828217

Courtesy of SUBARU OF AMERICA, INC.
