Front Seat: Adjustment

Adjustment ranges are expanded to fit a wider variety of body types.

• The height of each headrest is adjustable to any of the 3 positions available.
• The uppermost position of the backrest is 11° rearwards from the perpendicular; the reclining angle is widened.
• A "towel bar" type seat slide lever is used for easier operation.
• The seat lifter mechanism has been changed from a system that lifts only the cushion to a system that lifts the entire seat.

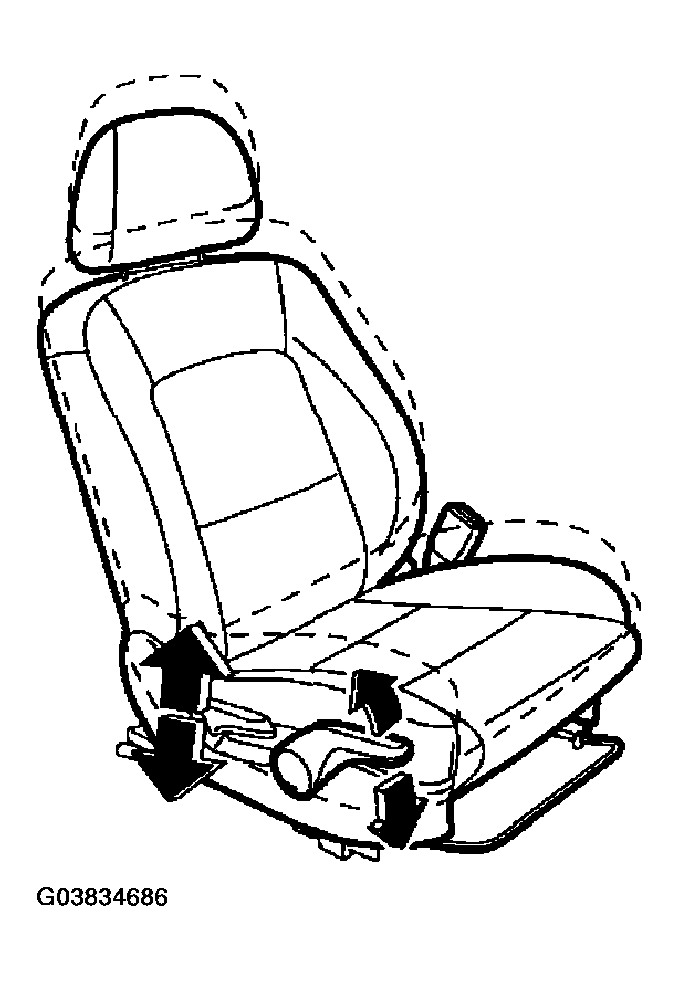

  Fig 1: Identifying Front Seat Adjustments (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

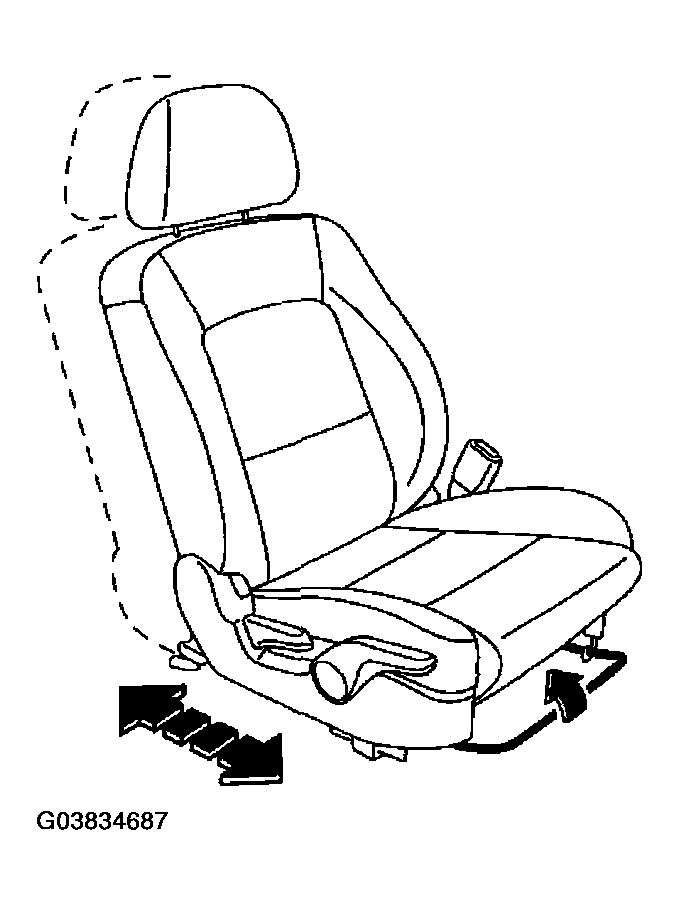

  Fig 2: Identifying Front Seat Adjustments (2 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.
