Lateral G Sensor: Removal

  1. Remove the console box. < Ref. to REMOVAL , Console Box. >
  2. Disconnect the connector from lateral G sensor.

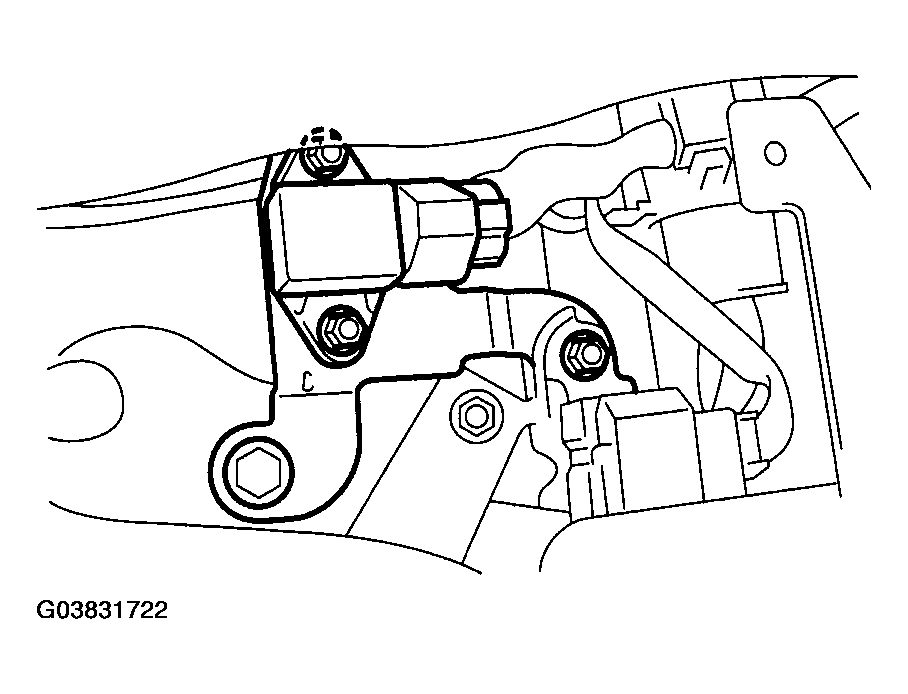

    Fig 1: Disconnecting Connector From Lateral G Sensor
    G03831722Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the lateral G sensor.
