Transmission Control Device & Parking Support

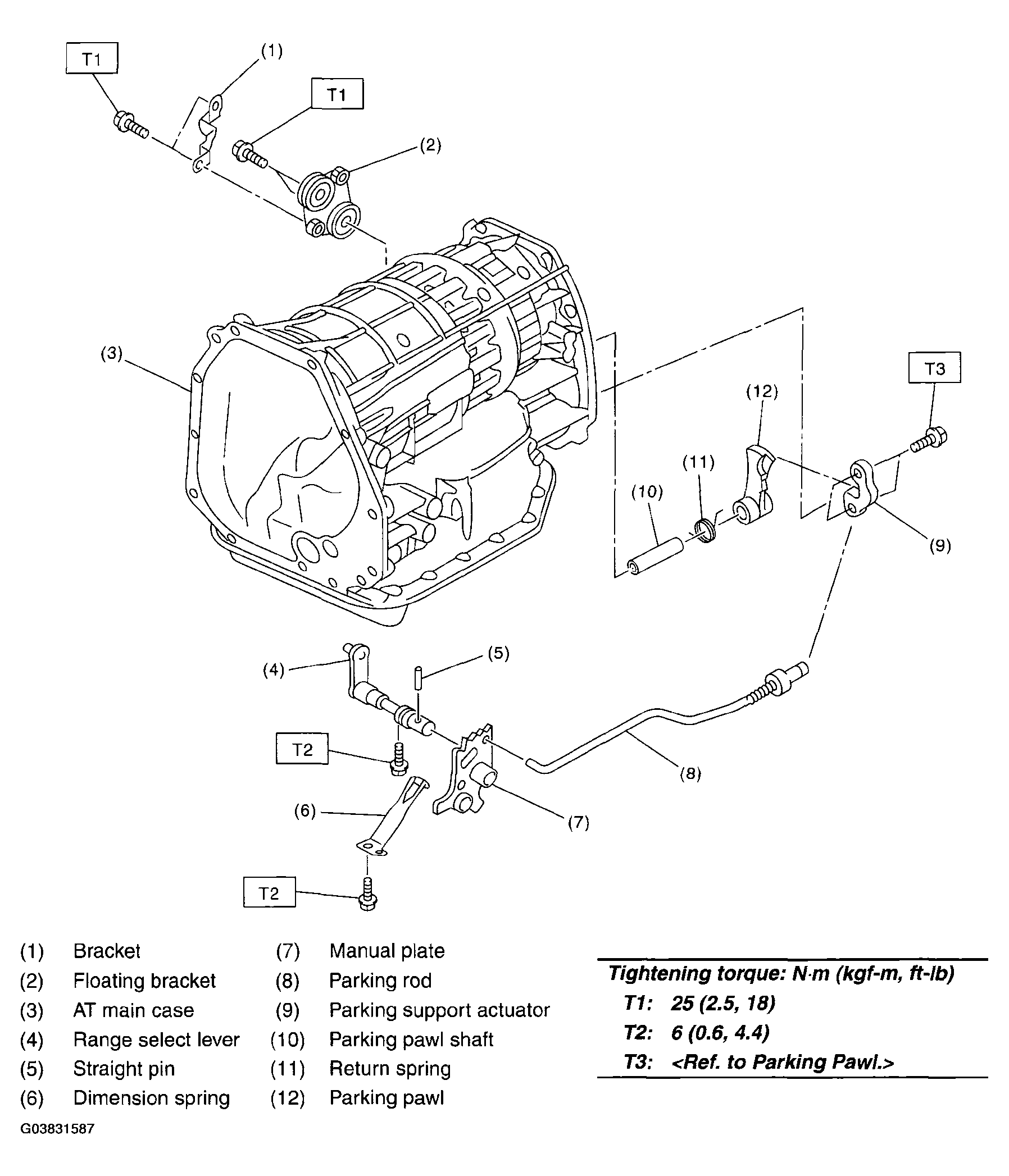

Fig 1: Transmission Control Device & Parking Support Replacement Components With Torque Specifications

G03831587

Courtesy of SUBARU OF AMERICA, INC.
