Extension Case and Intermediate Case: Assembly

  1. Press-fit new oil seal using ST and press.

    ST 498057300 INSTALLER

  2. Press-fit the dust cover.
  3. Insert the multi-plate clutch, drive plate, driven plate and spring retainer.

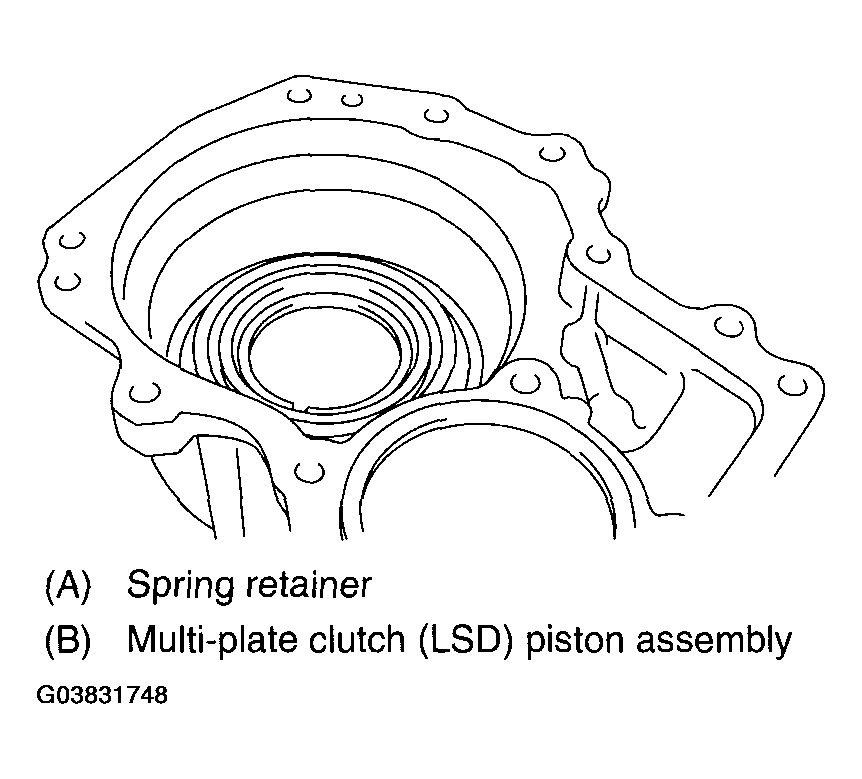

    Fig 1: Inserting Multi-Plate Clutch, Drive Plate, Driven Plate And Spring Retainer
    G03831748Courtesy of SUBARU OF AMERICA, INC.
  4. Using the ST and compressor, install the snap ring.

    ST 18762AA000 COMPRESSOR SPECIAL TOOL

    Fig 2: Installing Snap Ring Using Compressor Special Tool ST 18762AA000
    G03831749Courtesy of SUBARU OF AMERICA, INC.
  5. Install the transfer clutch. < Ref. to , INSTALLATION , Transfer Clutch. >
    NOTE: For 3-transfer clutch model, make sure the press plate is included.
  6. Install the multi-plate hub assembly.
