Front Bushing

  1. Set the ST A with the larger side of its inner diameter turned upward.
  2. Set the rear arm with the vehicle inner side of arm turned downward.
  3. Place the bushing on rear arm as shown in Fig 1 .
  4. Place the ST B on bushing, and press-fit until each edge surface of bushing and rear arm comes to be aligned.

    ST A 20099AE020 INSTALLER & REMOVER SET

    ST B 20099AE020 INSTALLER & REMOVER SET

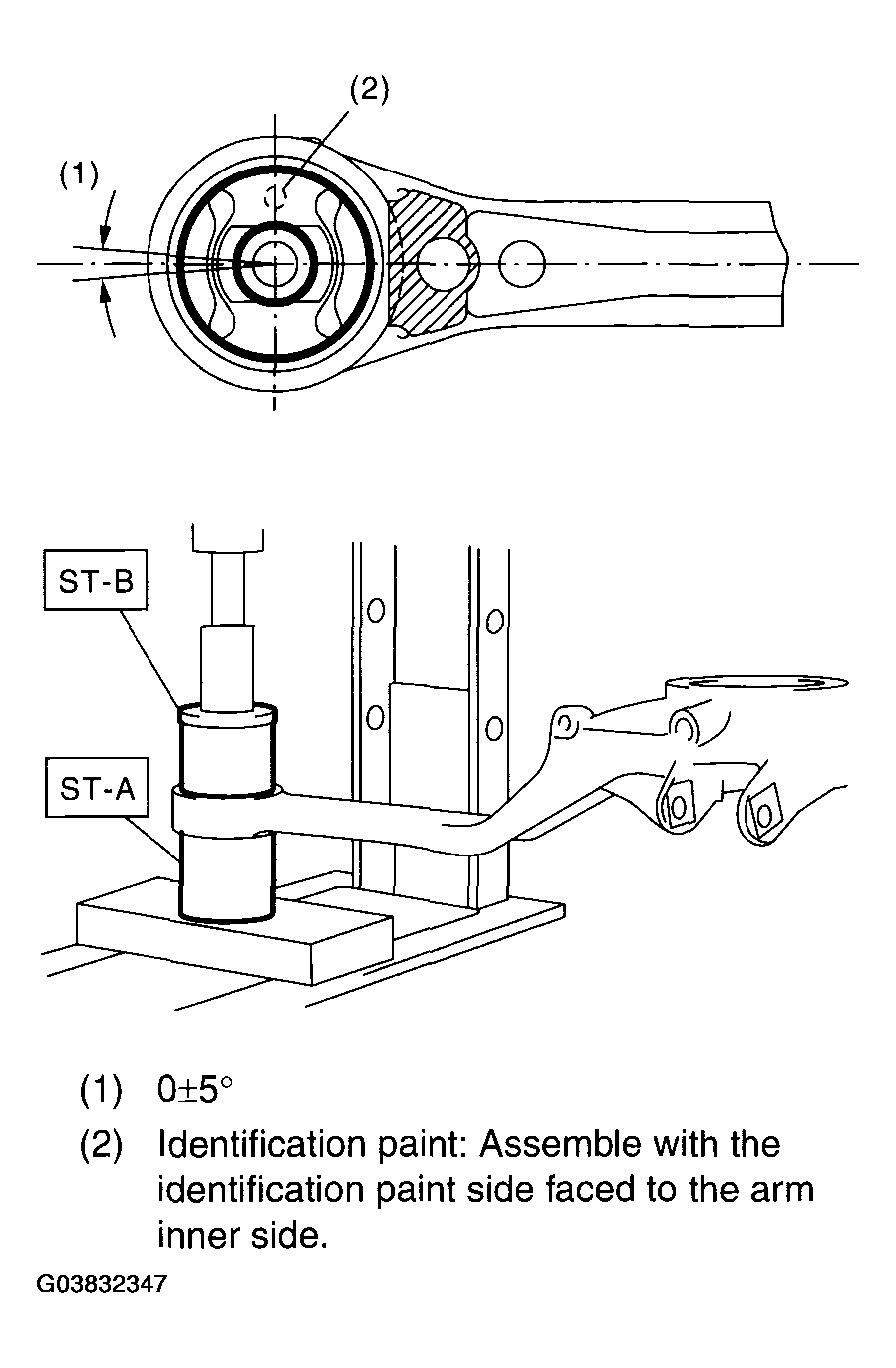

Fig 1: Assembling Front Bushing Using Special Tools
G03832347Courtesy of SUBARU OF AMERICA, INC.
