Reservoir Tank: Installation

Install the reservoir tank to body.
Tightening torque:

13 N.m (1.32 kgf-m, 9.6 ft-lb)
Connect the hose to reservoir tank.
- H4 model

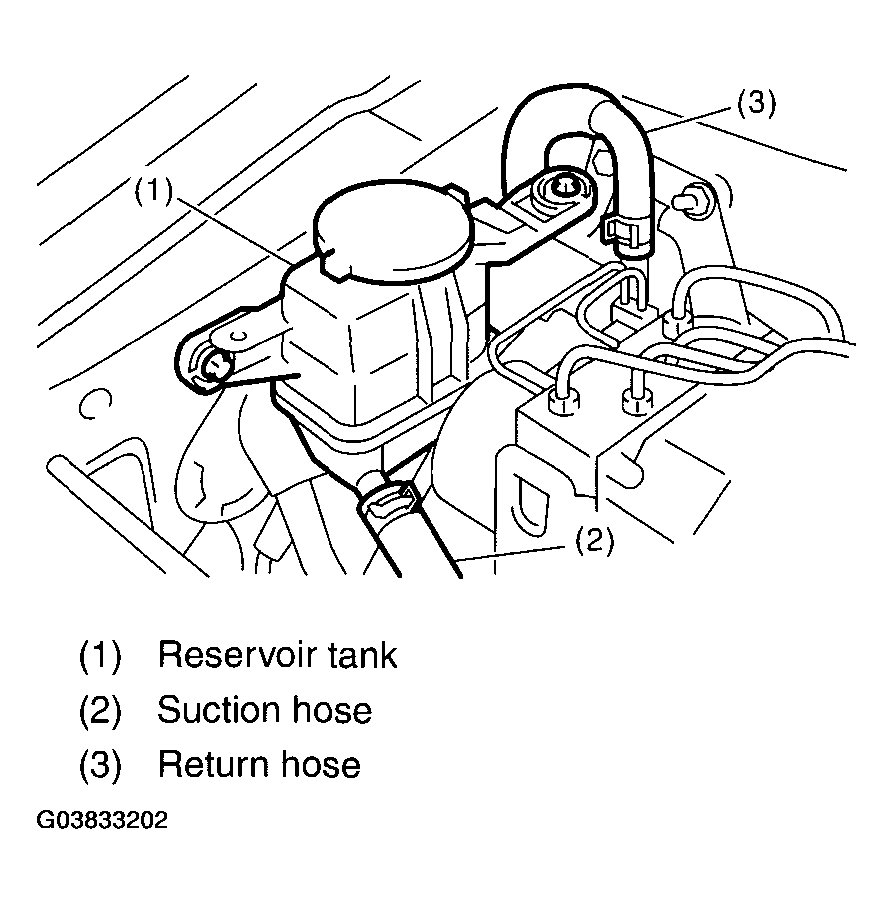

  Fig 1: Connecting Hose To Reservoir Tank (H4 Model)
  Courtesy of SUBARU OF AMERICA, INC.
- H6 model

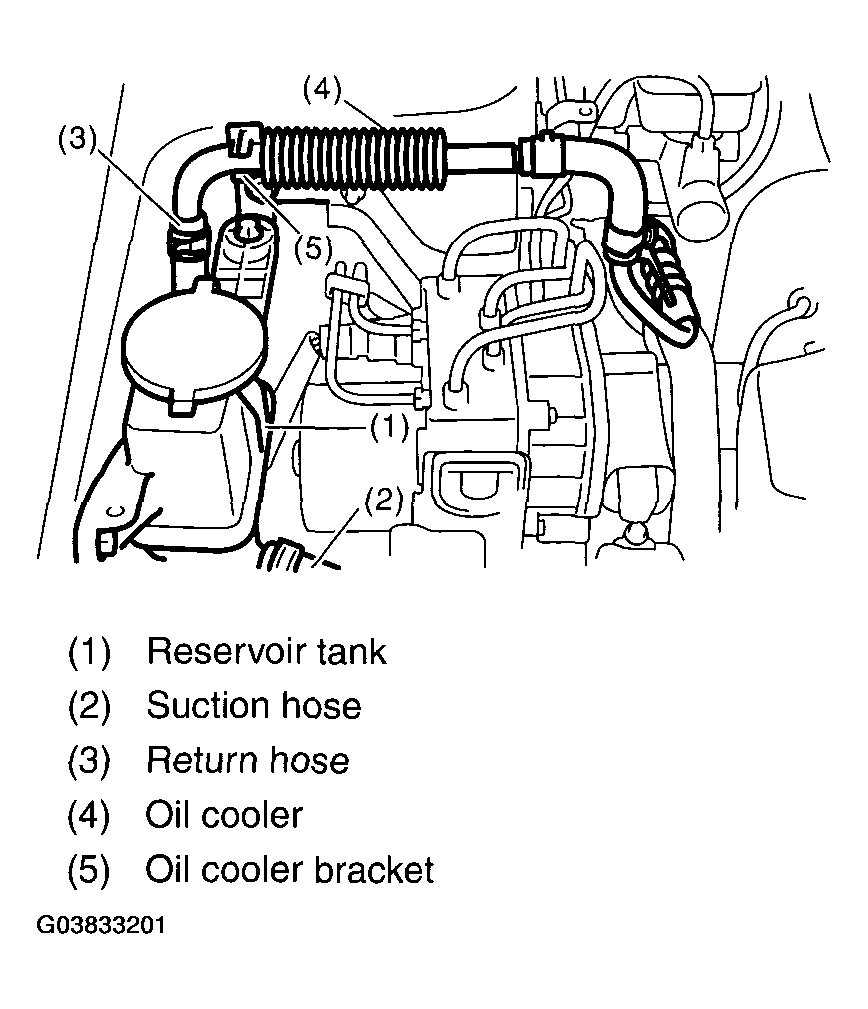

Fig 2: Connecting Hose To Reservoir Tank (H6 Model)
Courtesy of SUBARU OF AMERICA, INC.
Feed the power steering fluid to specified level. < Ref. to , POWER STEERING FLUID . >
