Oil Pump: Removal

Disconnect the ground cable from battery.
Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct.> < Ref. to REMOVAL , Air Intake Duct. >
Remove the pulley belt cover.
Loosen the belt tension securing bolt and generator securing bolt, and then remove the power steering pump V-belt.

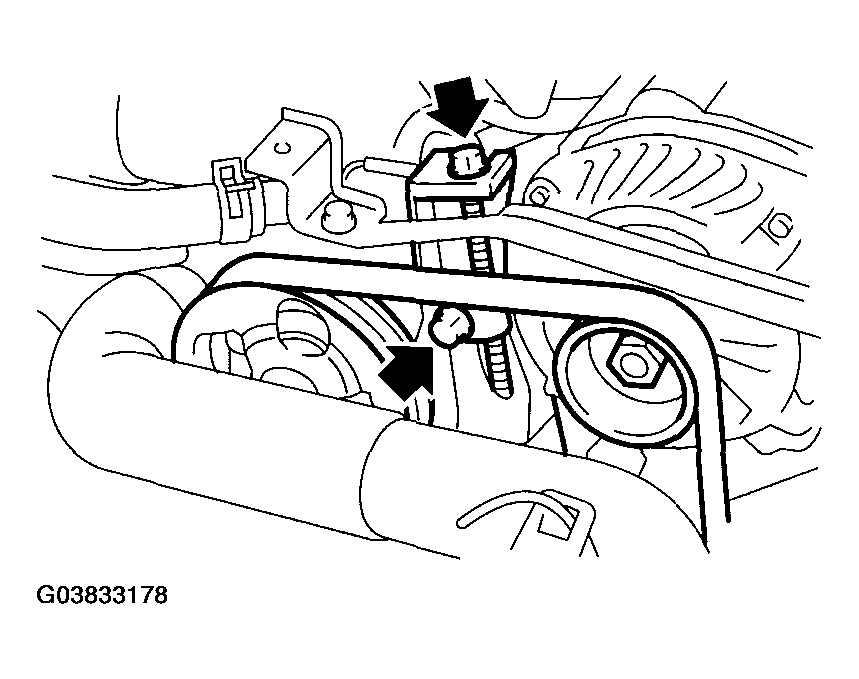

Fig 1: Removing Power Steering Pump V-Belt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from power steering pump switch.
Disconnect the pressure hose and suction hose from oil pump.
CAUTION:
- Do not allow fluid to come into contact with pulley belt.
- To prevent foreign matter from entering the hose and pipe, cover the open ends with a clean cloth.
- Non-turbo model

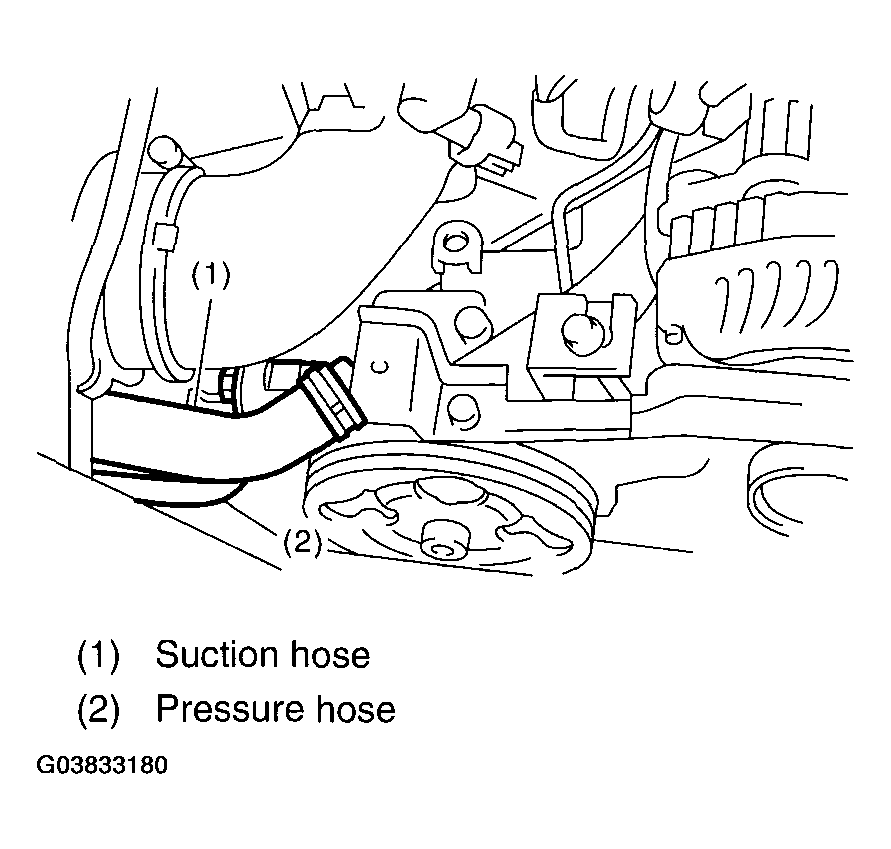

Fig 2: Disconnecting Pressure Hose And Suction Hose From Oil Pump (Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

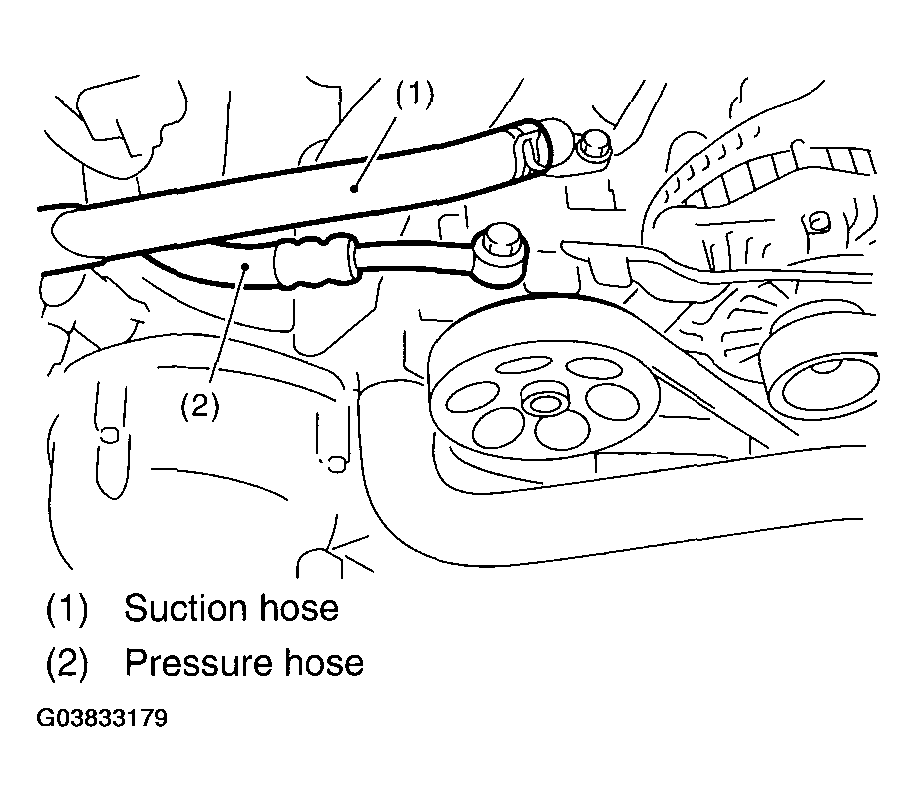

Fig 3: Disconnecting Pressure Hose And Suction Hose From Oil Pump (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which hold the power steering pump bracket.

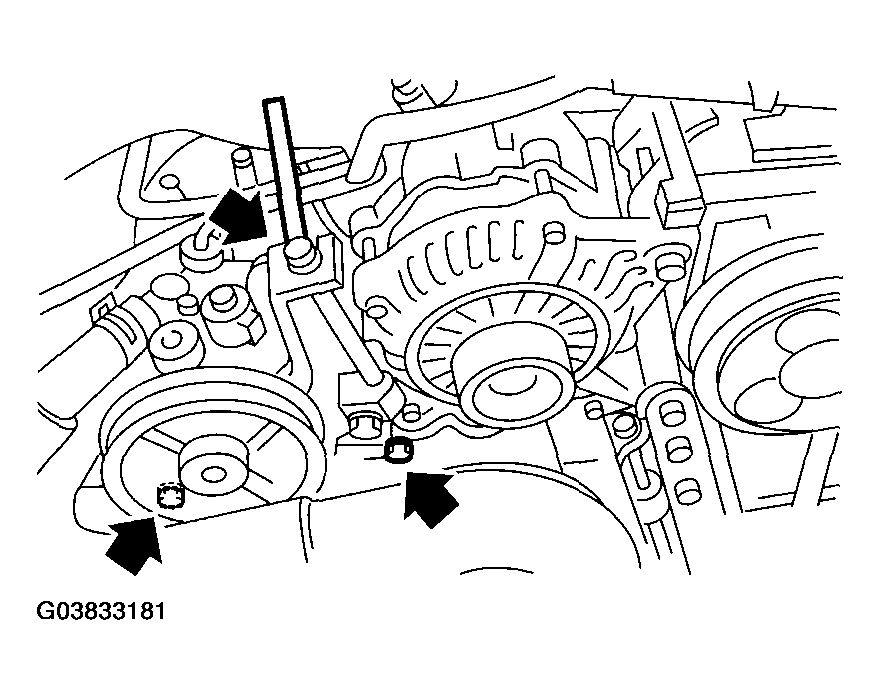

Fig 4: Removing Bolts Which Hold Power Steering Pump Bracket
Courtesy of SUBARU OF AMERICA, INC.
Place the oil pump bracket in a vise, and remove the two bolts from the front side of oil pump.
CAUTION: When securing the oil pump bracket in a vice, hold the oil pump bracket with the least possible force between two wood pieces.

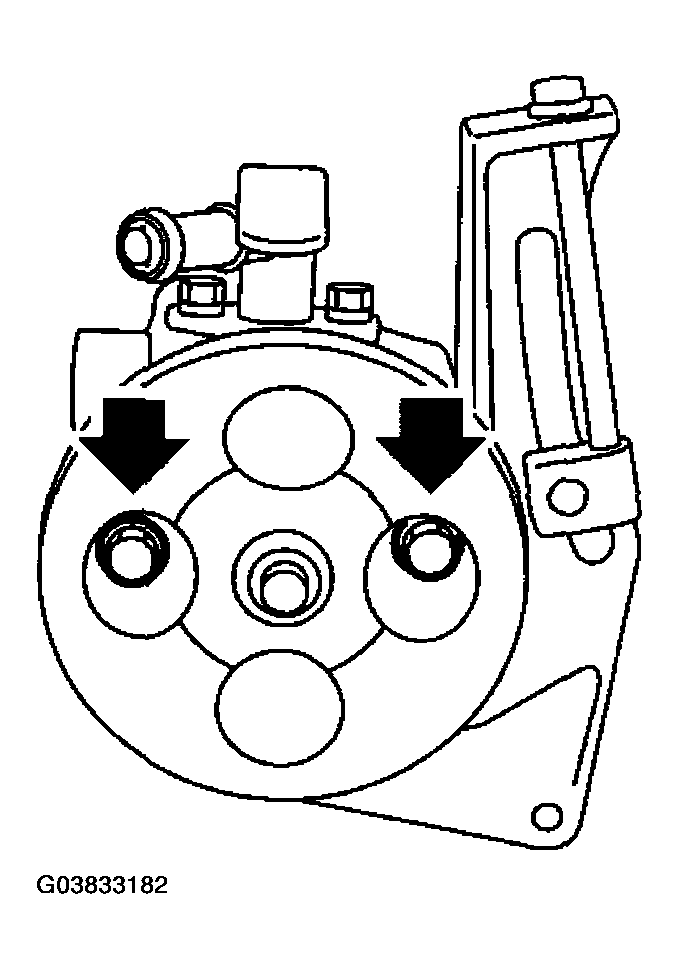

Fig 5: Removing Two Bolts From Front Side Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt from the rear side of oil pump.
Disassemble the oil pump and bracket by inserting a flat tip screwdriver as shown in Fig 6 .

Fig 6: Disassembling Oil Pump And Bracket
