Service Limit

Make a measurement as follows. If it exceeds the service limit, replace with a new one.

CAUTION:

When securing the oil pump on a vice, hold the oil pump with the least possible force between two wood pieces.
Do not set outside of flow control valve or pulley on a vice; otherwise outside or pulley might be deformed. Select properly sized wood pieces.

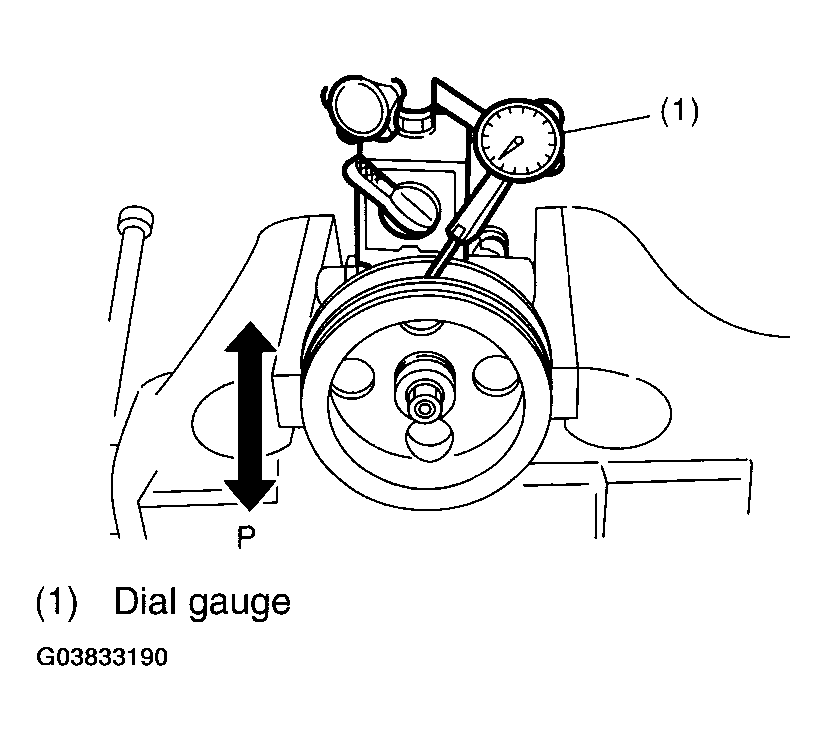

Play of the pulley shaft
Condition:

P: When applying the force of 9.8 N (1.0 kgf, 2.2 lb)

Service limit:

Radial play (Direction <- ->)

0.4 mm (0.016 in) or less

Fig 1: Measuring Radial Play Of Pulley Shaft
Courtesy of SUBARU OF AMERICA, INC.

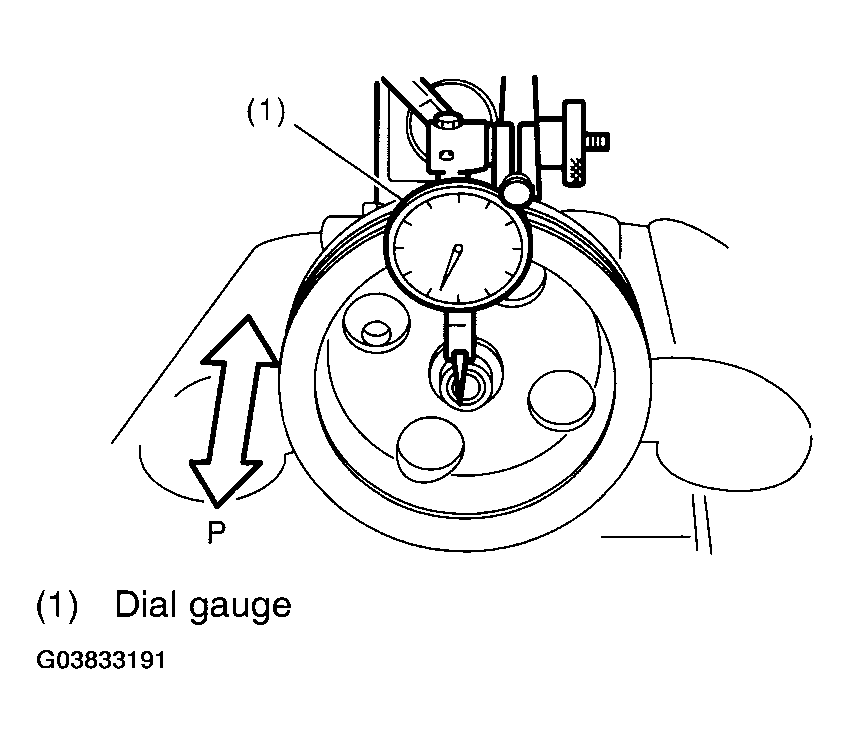

Axial play (Direction <- ->)

0.9 mm (0.035 in) or less

Fig 2: Measuring Axial Play Of Pulley Shaft
Courtesy of SUBARU OF AMERICA, INC.

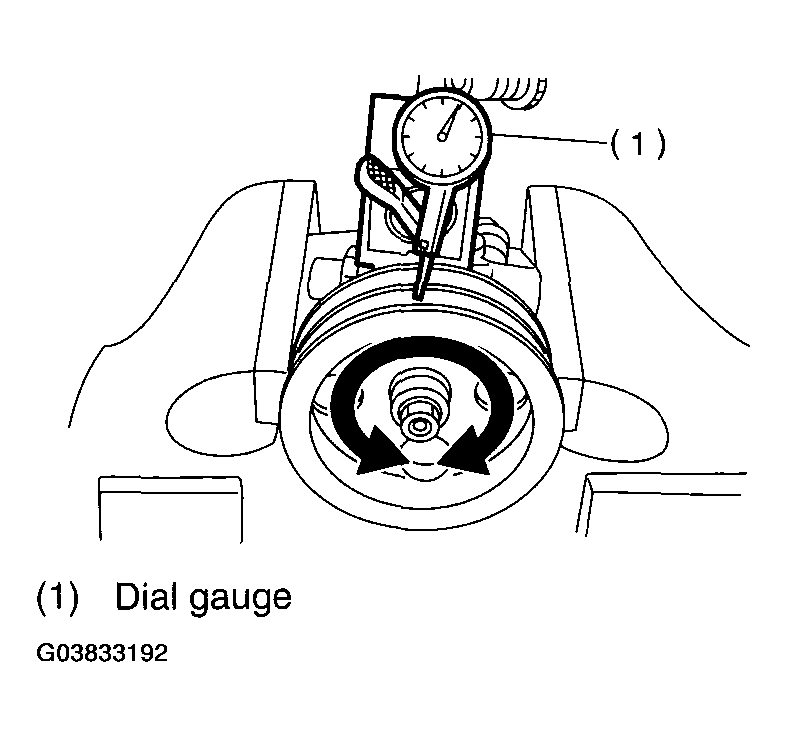

Ditch deflection of pulley
Service limit:

1.0 mm (0.039 in) or less

NOTE: Read the value for one surface of V ditch, and then the value for another off the dial.

Fig 3: Ditching Deflection Of Pulley
Courtesy of SUBARU OF AMERICA, INC.

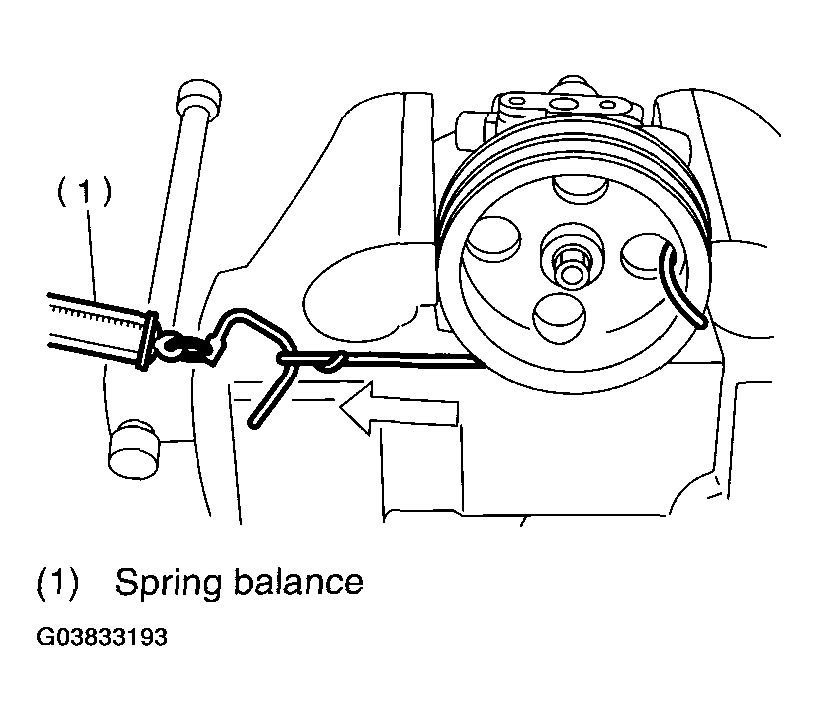

Resistance to rotation of pulley

Service limit:

Maximum load: 9.22 N (0.94 kgf, 2.07 lb) or less

NOTE:

A rather higher value may be indicated when pulley starts turning.
Measure the load during rotation to make a judgment.

Fig 4: Measuring Load During Rotation To Make A Judgment

G03833193

Courtesy of SUBARU OF AMERICA, INC.
