Airbag System

Read the DTC of airbag system, and check that there is no malfunction in airbag system.

Standard:

DTC is not displayed.

SPECIAL TOOL SPECIFICATION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	24082AA260	CARTRIDGE	Troubleshooting for electrical system.
Fig 2	22771AA030	SUBARU SELECT MONITOR KIT	Troubleshooting for electrical system.
Fig 3	98299AG050	TEST HARNESS Z	Used for checking power supply for occupant detection control module harness.
Fig 4	98299AG040	TEST HARNESS Y	Used for checking buckle switch. Used for checking buckle switch and seat position sensor.
Fig 5	98399AG000	SPECIAL TOOL WEIGHT A	Used for system calibration of occupant detection system. Used with SPECIAL TOOL WEIGHT B (98399AG010).
Fig 6	98399AG010	SPECIAL TOOL WEIGHT B	Used for system calibration of occupant detection system. Used with SPECIAL TOOL WEIGHT A (98399AG000).
Fig 7	64186AG00A	SPACER KIT OCCUPANT	Used for adjusting occupant detection system calibration.

Fig 1: Identifying Special Tool ST24082AA260

G03833472

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Special Tool ST22771AA030

G03833473

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Special Tool ST98299AG050

G03833474

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Special Tool ST98299AG040

G03833475

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Special Tool ST98299AG040

G03833476

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Special Tool ST98399AG010

G03833477

Courtesy of SUBARU OF AMERICA, INC.

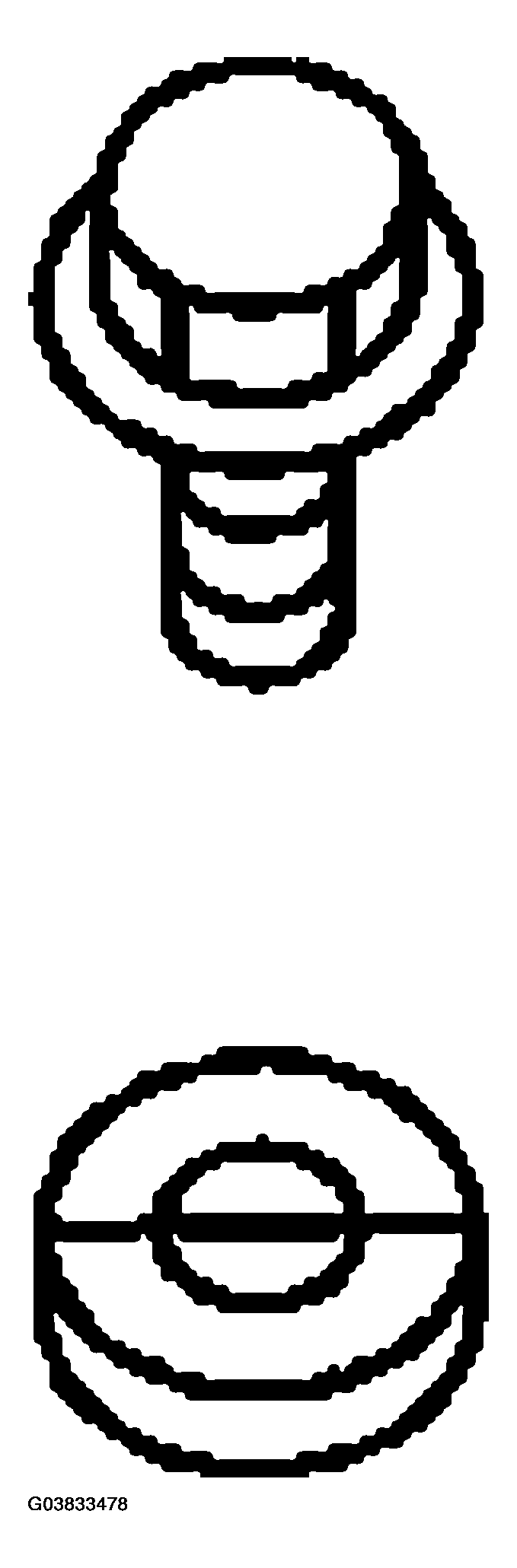

Fig 7: Identifying Special Tool ST64186AG00A

G03833478

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Special tool weight A and special tool weight B are supplied in a container as system calibration weight kit.
