Valve Rocker Assembly

WARNING: This page is about a different variant/trim than selected.

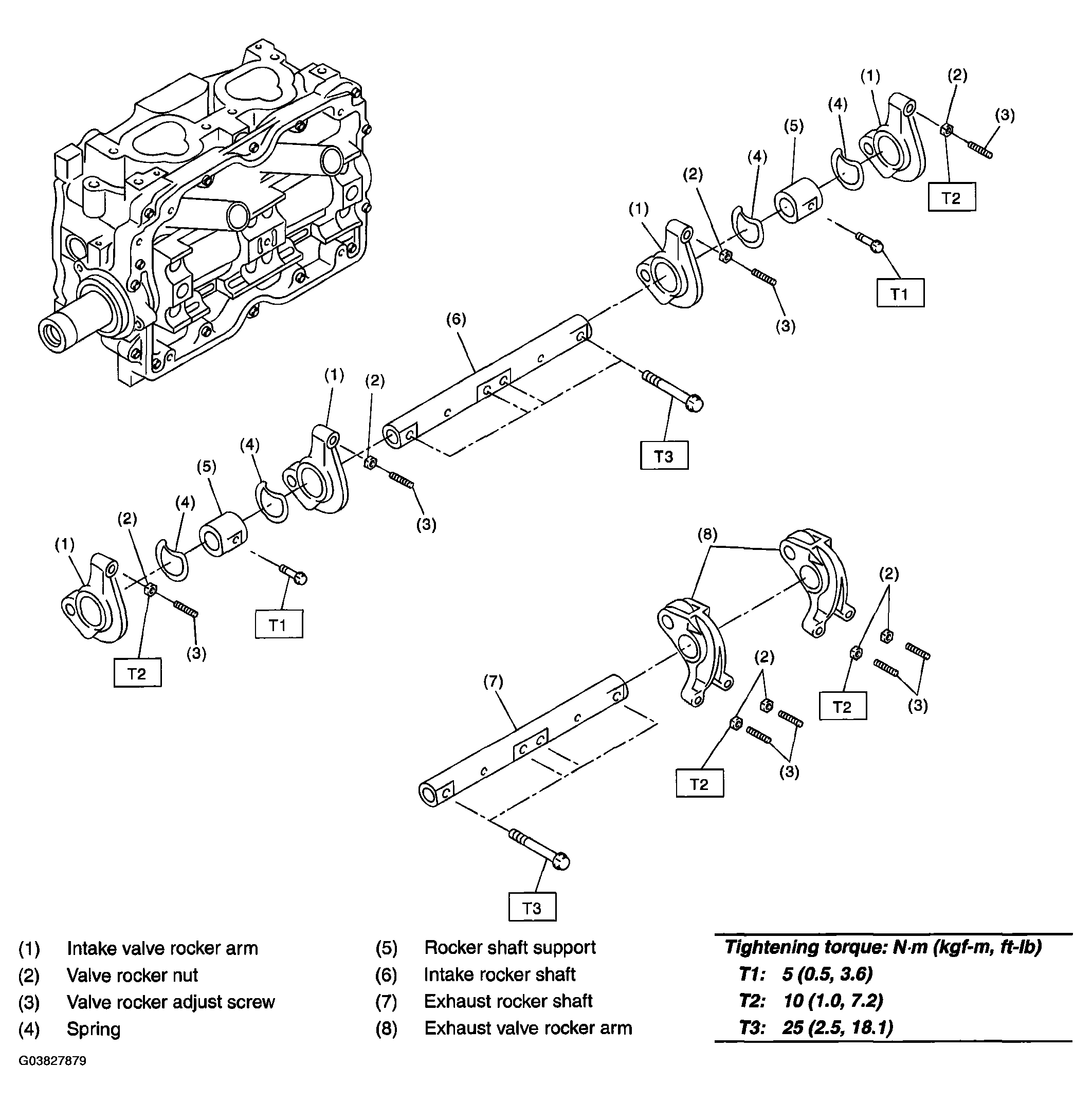

Fig 1: Valve Rocker Assembly Replacement Components With Torque Specifications
G03827879Courtesy of SUBARU OF AMERICA, INC.
