Rear Inner Remote: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim. < Ref. to REMOVAL , Rear Door Trim . >
  2. Remove the sealing cover. < Ref. to REAR SEALING COVER . >
  3. Remove the two rod joints.
  4. Remove the screw, and detach the inner remote.

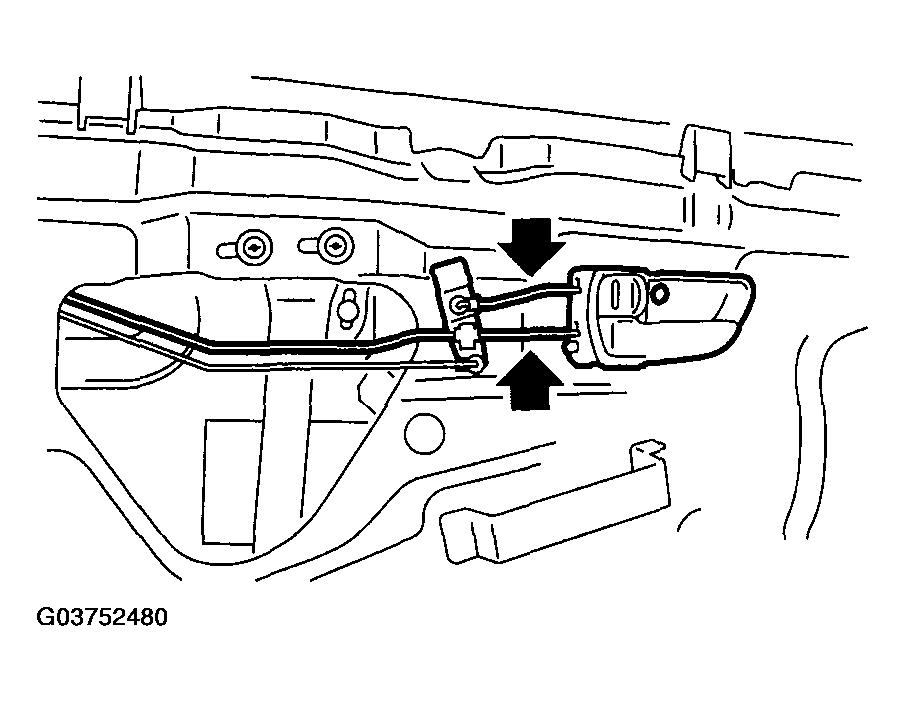

    Fig 1: Detaching Inner Remote
    G03752480Courtesy of SUBARU OF AMERICA, INC.
