Section 48 (Entertainment): Radio: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove hook (D) and then remove front cover (A).
  3. Remove two screws (B), then remove center panel (C) while disconnecting connector from front cover (A).
    Fig 1: Removing Center Panel
    G03752311Courtesy of SUBARU OF AMERICA, INC.
  4. Remove fitting screws, and slightly pull radio out from center console.

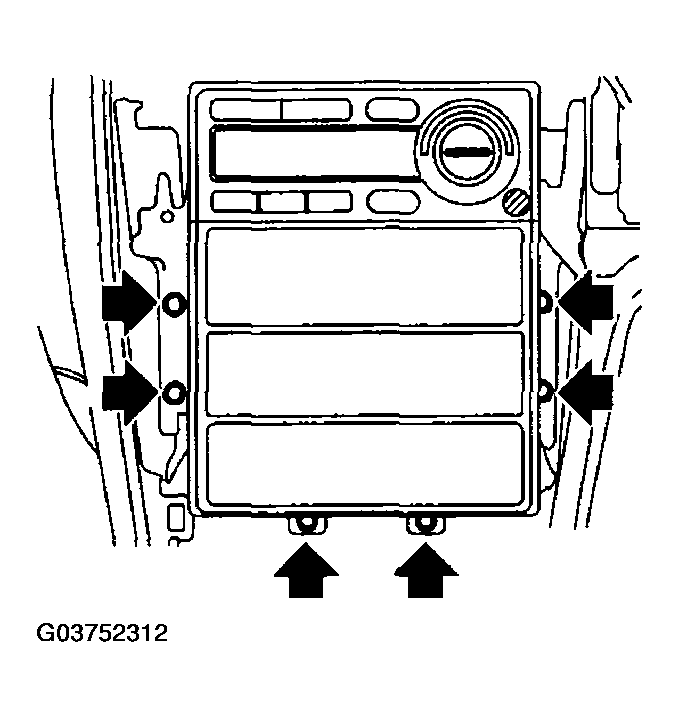

    Fig 2: Removing Radio
    G03752312Courtesy of SUBARU OF AMERICA, INC.
  5. Remove harness connectors and antenna feeder cord and then detach A/C control unit.
