High-mounted Stop Light: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove bolts, then detach high-mounted stop light assembly.
    Fig 1: Detaching High-Mounted Stop Light Assembly
    G03752278Courtesy of SUBARU OF AMERICA, INC.
  3. Turn the socket and remove the bulb.

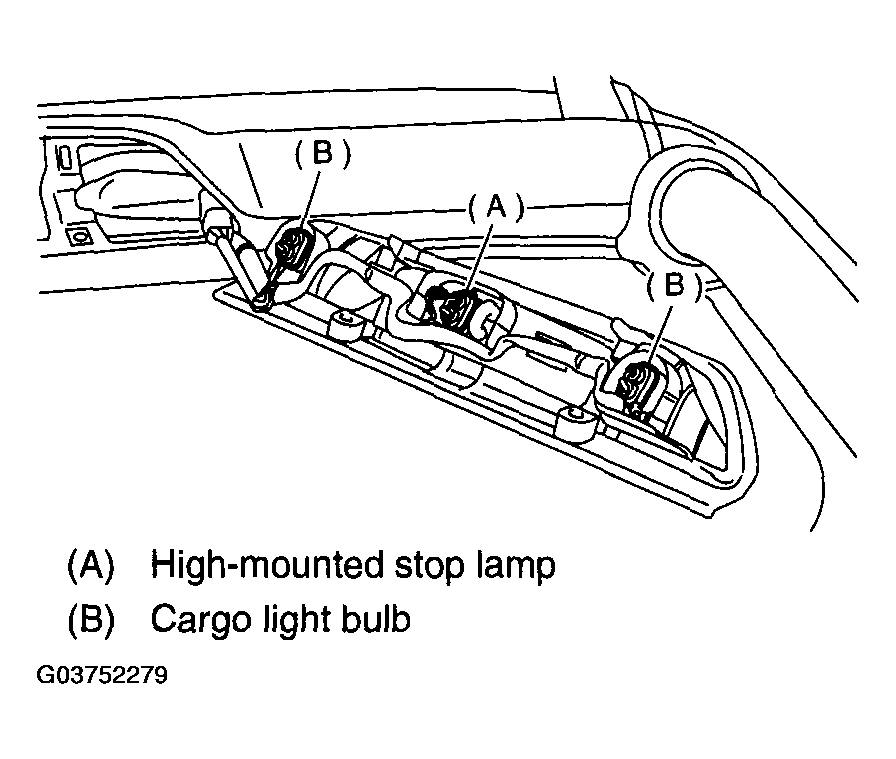

    Fig 2: Identifying High-Mounted Stop Light
    G03752279Courtesy of SUBARU OF AMERICA, INC.
