Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly . >
  3. Remove screws which secure upper column cover to lower column cover.
    Fig 1: Removing Instrument Panel Lower Cover
    G03752246Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from combination switch.
  5. Remove screws which secure switch and remove switch.

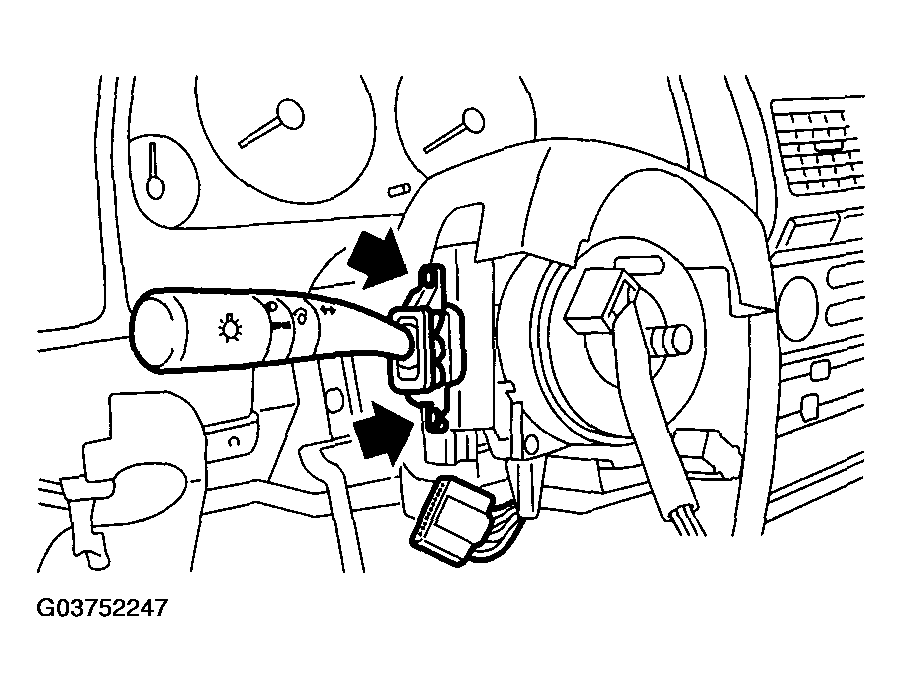

    Fig 2: Removing Screws
    G03752247Courtesy of SUBARU OF AMERICA, INC.
