Cargo Light System: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove bolts and remove high-mounted stop light.
    Fig 1: Removing High-Mounted Stop Light
    G03752285Courtesy of SUBARU OF AMERICA, INC.
  2. Turn the socket and remove the bulb.

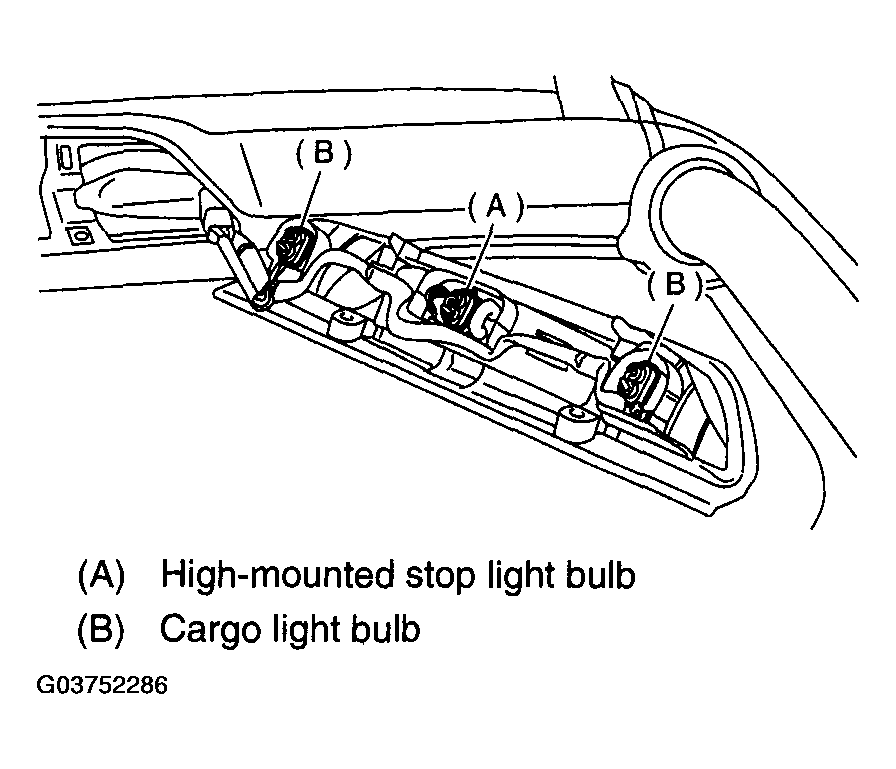

    Fig 2: Identifying Cargo Light Bulb
    G03752286Courtesy of SUBARU OF AMERICA, INC.
