Combination Light

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination light assembly. < Ref. to , REMOVAL , Rear Combination Light Assembly. >
  2. Rotate the socket and remove the bulb.

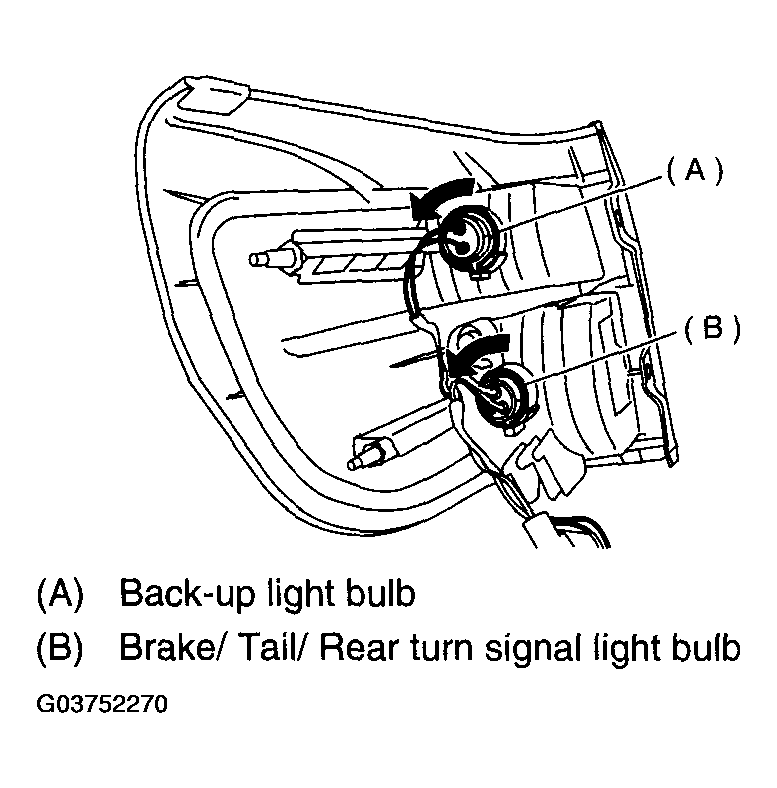

    Fig 1: Rotating Socket And Remove Bulb
    G03752270Courtesy of SUBARU OF AMERICA, INC.
