Back-up Light Bulb: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination light assembly. < Ref. to , REMOVAL , Rear Combination Light Assembly. >
  2. Rotate socket and remove bulb.

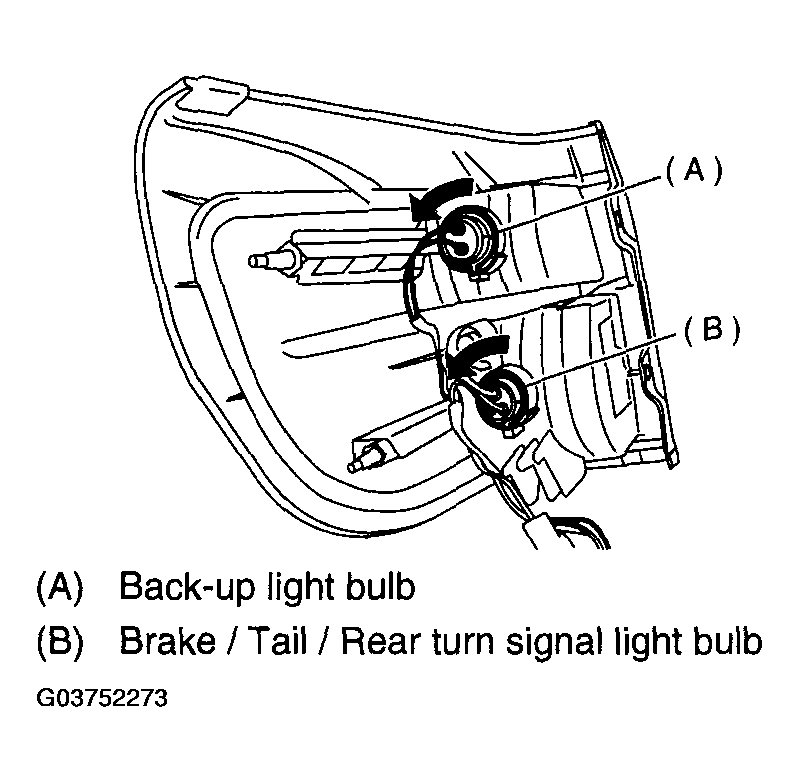

    Fig 1: Identifying Back-Up Light Bulb
    G03752273Courtesy of SUBARU OF AMERICA, INC.
