Rear Differential Front Member: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install rear differential front member.
Tightening torque:

T1:65 N.m (6.6 kgf-m, 48 ft-lb)

T2:110 N.m (11.2 kgf-m, 81 ft-lb)

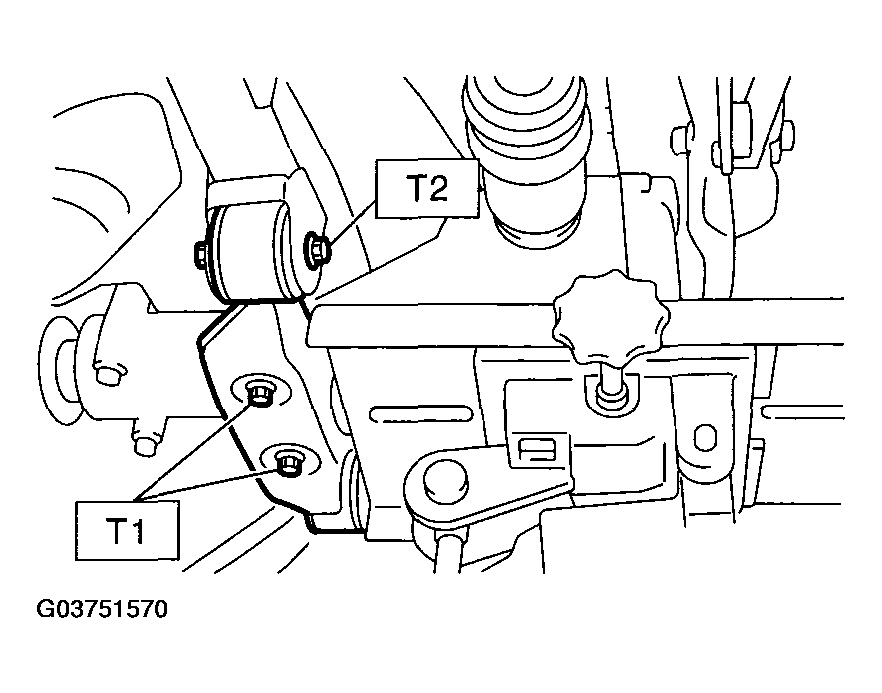

Fig 1: Installing Rear Differential Front Member
Courtesy of SUBARU OF AMERICA, INC.
