Special Tools

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS SPECIFICATION

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 398477701 HANDLE Used for installing front and rear bearing cone.
Fig 2 398477702 DRIFT Used press-fitting the bearing cone of differential carrier (front).
Fig 3 398217700 ATTACHMENT SET Stand for rear differential carrier disassembly and assembly.
Fig 4 498447120 INSTALLER Used for installing front oil seal.
Fig 5 498427200 FLANGE WRENCH Used for stopping rotation of companion flange when loosening and tightening self-lock nut.
Fig 6 398467700 DRIFT Used for removing pinion, pilot bearing and front bearing cone.
Fig 7 399780104 WEIGHT Used for installing front bearing cone, pilot bearing companion flange.
Fig 8 899580100 INSTALLER Used for press-fitting the front bearing cone, pilot bearing.
Fig 9 899904100 STRAIGHT PIN REMOVER Used for driving out differential pinion shaft lock pin.
Fig 10 498247001 MAGNET BASE
  • Used for measuring backlash between side gear and pinion, and hypoid gear.
  • Used with DIAL GAUGE (498247100).
Fig 11 498247100 DIAL GAUGE
  • Used measuring backlash between side gear and pinion, hypoid gear.
  • Used with MAGNET BASE (498247001).
Fig 12 398507704 BLOCK Used for adjusting pinion height and preload.
Fig 13 399703600 PULLER ASSY Use for removing companion flange.
Fig 14 398177700 INSTALLER
  • Used for installing rear bearing cone.
  • For T-type.
Fig 15 398457700 ATTACHMENT
  • Used for removing side bearing retainer.
  • For T-type.
Fig 16 398477703 DRIFT 2
  • Used for press-fitting the bearing race (rear) of differential carrier.
  • For T-type.
Fig 17 398437700 DRIFT
  • Used for installing side oil seal.
  • For T-type.
Fig 18 398507702 DUMMY SHAFT
  • Used for adjusting pinion height and preload.
  • For T-type.
Fig 19 398507703 DUMMY COLLAR
  • Used for adjusting pinion height and preload.
  • For T-type.
Fig 20 398517700 REPLACER
  • Used for removing rear bearing cone.
  • For T-type.
Fig 21 398487700 DRIFT
  • Used for press-fitting the side bearing cone.
  • For T-type.
Fig 22 398507701 GAUGE
  • Used for adjusting pinion height.
  • For T-type.
Fig 23 398527700 PULLER ASSY
  • Used for removing oil seal and side bearing cup.
  • For T-type.
Fig 24 399527700 PULLER SET
  • Used for extracting side bearing cone.
    1. BOLT (899521412)
    2. PULLER (399527702)
    3. HOLDER (399527703)
    4. ADAPTER (398497701)
    5. BOLT (899520107)
    6. NUT (021008000)
  • For T-type.
Fig 25 28099PA090 OIL SEAL PROTECTOR
  • Used for installing rear drive shaft into rear differential.
  • For protecting oil seal.
Fig 26 398237700 GAUGE
  • Used for installing side bearing.
  • For T-type.
Fig 27 28099PA100 DRIVE SHAFT REMOVER
  • Used for removing rear drive shaft from rear differential.
  • For T-type.
Fig 28 498175500 INSTALLER
  • Used for installing rear bearing cone.
  • For VA-type.
Fig 29 499785500 WRENCH ASSY
  • Used for removing and installing side oil seal holder.
  • For VA-type.
Fig 30 498447100 INSTALLER
  • Used for installing oil seal.
  • For VA-type.
Fig 31 399520105 SEAT
  • Used for removing side bearing cone.
  • Used with PULLER SET (899524100).
  • For VA-type.
Fig 32 498485400 DRIFT
  • Used for installing side bearing cone.
  • For VA-type.
Fig 33 498505501 GAUGE
  • Used for adjusting pinion height.
  • For VA-type.
Fig 34 498447110 BEARING OUTER RACE DRIFT
  • Used for press-fitting the bearing race (front) of differential carrier.
  • For VA-type.
Fig 35 498447150 DUMMY SHAFT
  • Used for adjusting pinion height and pre-load.
  • For VA-type.
Fig 36 32285AA000 DUMMY COLLAR
  • Used for adjusting pinion height and pre-load.
  • For VA-type.
Fig 37 499705404 SEAT
  • Used for removing side bearing race.
  • Used with PULLER ASSY (499705401).
  • For VA-type.
Fig 38 499705401 PULLER ASSY
  • Used for removing side bearing race.
  • Used with SEAT (499705404).
  • For VA-type.
Fig 39 899874100 INSTALLER
  • Used for installing companion flange.
  • For VA-type.
Fig 40 899524100 DIFFERENTIAL BEARING PULLER SET
  • Used for removing side bearing cone of differential.
  • For VA-type
    1. Puller
    2. Cap
Fig 1: Identifying Special Tool ST-398477701
G03751365Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Identifying Special Tool ST-398477702
G03751366Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying Special Tool ST-398217700
G03751367Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Identifying Special Tool ST-498447120
G03751368Courtesy of SUBARU OF AMERICA, INC.
Fig 5: Identifying Special Tool ST-498427200
G03751369Courtesy of SUBARU OF AMERICA, INC.
Fig 6: Identifying Special Tool ST-398467700
G03751370Courtesy of SUBARU OF AMERICA, INC.
Fig 7: Identifying Special Tool ST-399780104
G03751371Courtesy of SUBARU OF AMERICA, INC.
Fig 8: Identifying Special Tool ST-899580100
G03751372Courtesy of SUBARU OF AMERICA, INC.
Fig 9: Identifying Special Tool ST-899904100
G03751373Courtesy of SUBARU OF AMERICA, INC.

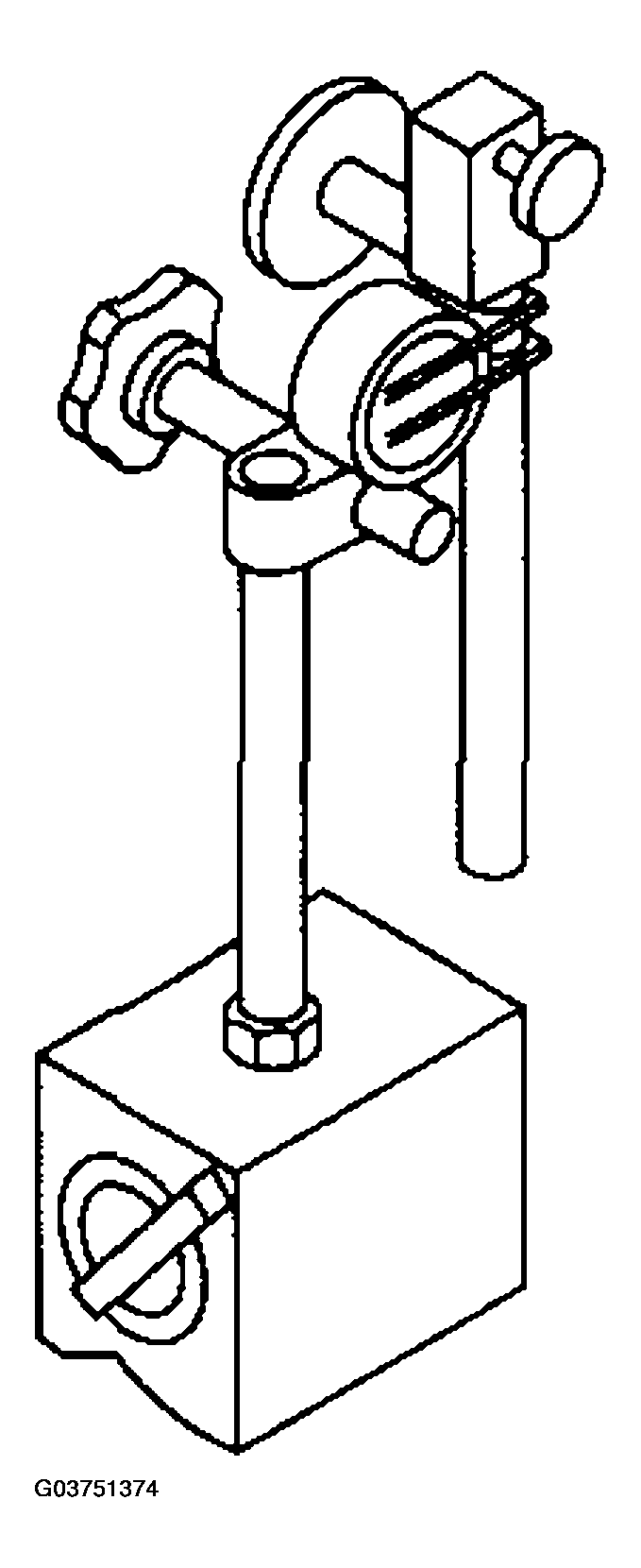

Fig 10: Identifying Special Tool ST-498247001
G03751374Courtesy of SUBARU OF AMERICA, INC.

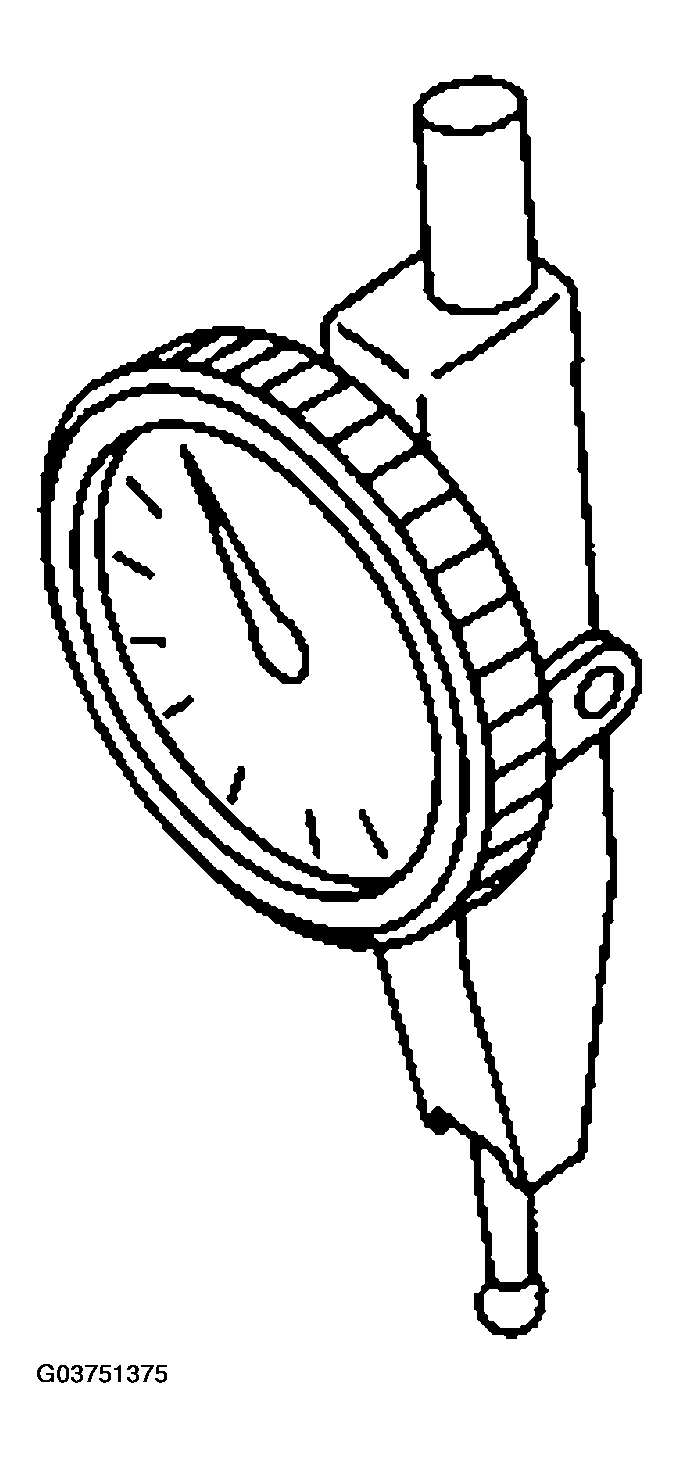

Fig 11: Identifying Special Tool ST-498247100
G03751375Courtesy of SUBARU OF AMERICA, INC.
Fig 12: Identifying Special Tool ST-398507704
G03751376Courtesy of SUBARU OF AMERICA, INC.
Fig 13: Identifying Special Tool ST-399703600
G03751377Courtesy of SUBARU OF AMERICA, INC.
Fig 14: Identifying Special Tool ST-398177700
G03751378Courtesy of SUBARU OF AMERICA, INC.
Fig 15: Identifying Special Tool ST-398457700
G03751379Courtesy of SUBARU OF AMERICA, INC.
Fig 16: Identifying Special Tool ST-398477703
G03751380Courtesy of SUBARU OF AMERICA, INC.

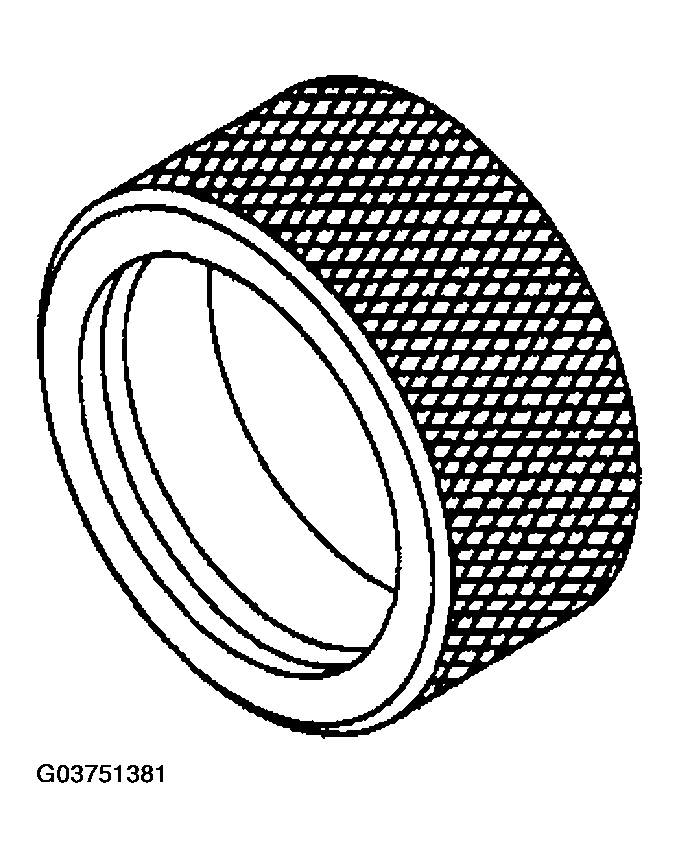

Fig 17: Identifying Special Tool ST-398437700
G03751381Courtesy of SUBARU OF AMERICA, INC.
Fig 18: Identifying Special Tool ST-398507702
G03751382Courtesy of SUBARU OF AMERICA, INC.
Fig 19: Identifying Special Tool ST-398507703
G03751383Courtesy of SUBARU OF AMERICA, INC.
Fig 20: Identifying Special Tool ST-398517700
G03751384Courtesy of SUBARU OF AMERICA, INC.
Fig 21: Identifying Special Tool ST-398487700
G03751385Courtesy of SUBARU OF AMERICA, INC.
Fig 22: Identifying Special Tool ST-398507701
G03751386Courtesy of SUBARU OF AMERICA, INC.
Fig 23: Identifying Special Tool ST-398527700
G03751387Courtesy of SUBARU OF AMERICA, INC.
Fig 24: Identifying Special Tool ST-399527700
G03751388Courtesy of SUBARU OF AMERICA, INC.
Fig 25: Identifying Special Tool ST28099PA090
G03751389Courtesy of SUBARU OF AMERICA, INC.
Fig 26: Identifying Special Tool ST-398237700
G03751390Courtesy of SUBARU OF AMERICA, INC.
Fig 27: Identifying Special Tool ST28099PA100
G03751391Courtesy of SUBARU OF AMERICA, INC.
Fig 28: Identifying Special Tool ST-498175500
G03751392Courtesy of SUBARU OF AMERICA, INC.
Fig 29: Identifying Special Tool ST-499785500
G03751393Courtesy of SUBARU OF AMERICA, INC.

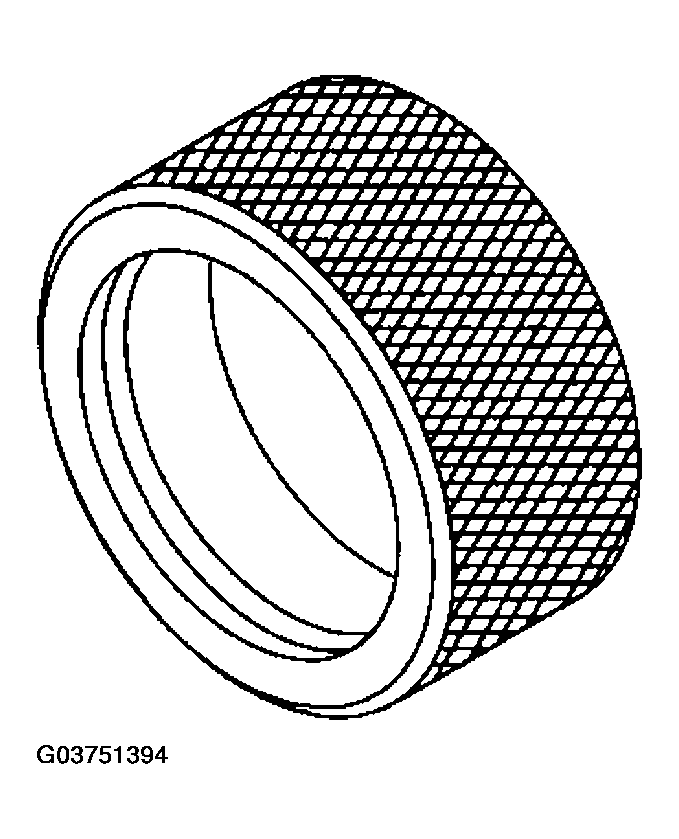

Fig 30: Identifying Special Tool ST-498447100
G03751394Courtesy of SUBARU OF AMERICA, INC.
Fig 31: Identifying Special Tool ST-399520105
G03751395Courtesy of SUBARU OF AMERICA, INC.
Fig 32: Identifying Special Tool ST-498485400
G03751396Courtesy of SUBARU OF AMERICA, INC.
Fig 33: Identifying Special Tool ST-498505501
G03751397Courtesy of SUBARU OF AMERICA, INC.
Fig 34: Identifying Special Tool ST-498447110
G03751398Courtesy of SUBARU OF AMERICA, INC.
Fig 35: Identifying Special Tool ST-498447150
G03751399Courtesy of SUBARU OF AMERICA, INC.
Fig 36: Identifying Special Tool ST32285AA000
G03751400Courtesy of SUBARU OF AMERICA, INC.
Fig 37: Identifying Special Tool ST-499705404
G03751401Courtesy of SUBARU OF AMERICA, INC.
Fig 38: Identifying Special Tool ST-499705401
G03751402Courtesy of SUBARU OF AMERICA, INC.

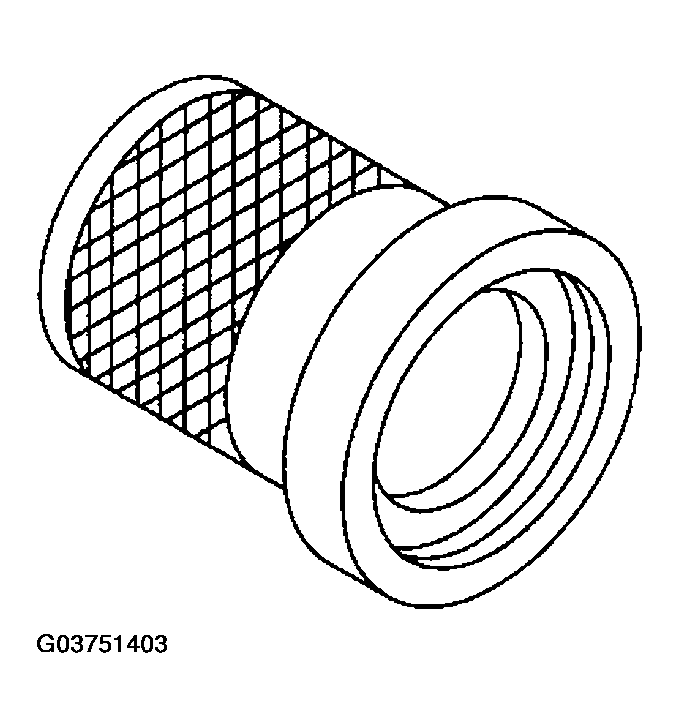

Fig 39: Identifying Special Tool ST-899874100
G03751403Courtesy of SUBARU OF AMERICA, INC.
Fig 40: Identifying Special Tool ST-899524100
G03751404Courtesy of SUBARU OF AMERICA, INC.
