Wheel Alignment: Inspection: Caster: Inspection

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Place front wheel on turning radius gauge. Make sure ground contacting surfaces of front and rear wheels are set at the same height.
Set ST into the center of the wheel, and then install the wheel alignment gauge.
ST 927380002 ADAPTER

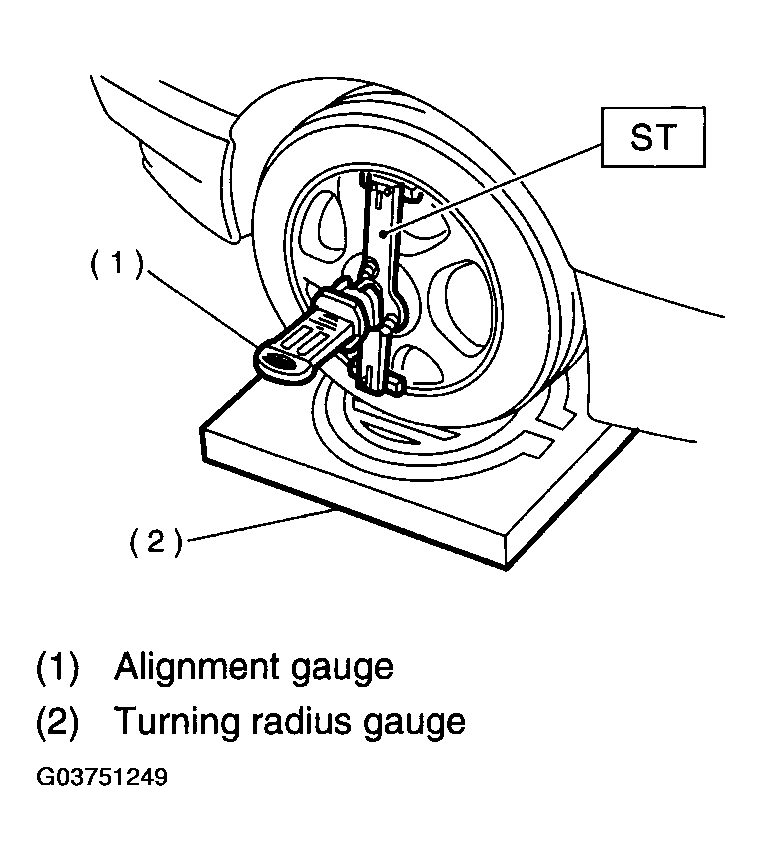

Fig 1: Installing Wheel Alignment Gauge Using Adapter ST927380002
Courtesy of SUBARU OF AMERICA, INC.
Follow the wheel alignment gauge operation manual to measure the caster angle.
NOTE: Refer to the "SPECIFICATIONS " for the caster values. < Ref. to , SPECIFICATIONS , General Description. >
