Section 33 (Clutch System): Flywheel: Removal

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the clutch cover and clutch disc. < Ref. to , REMOVAL , Clutch Disc and Cover. >
  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

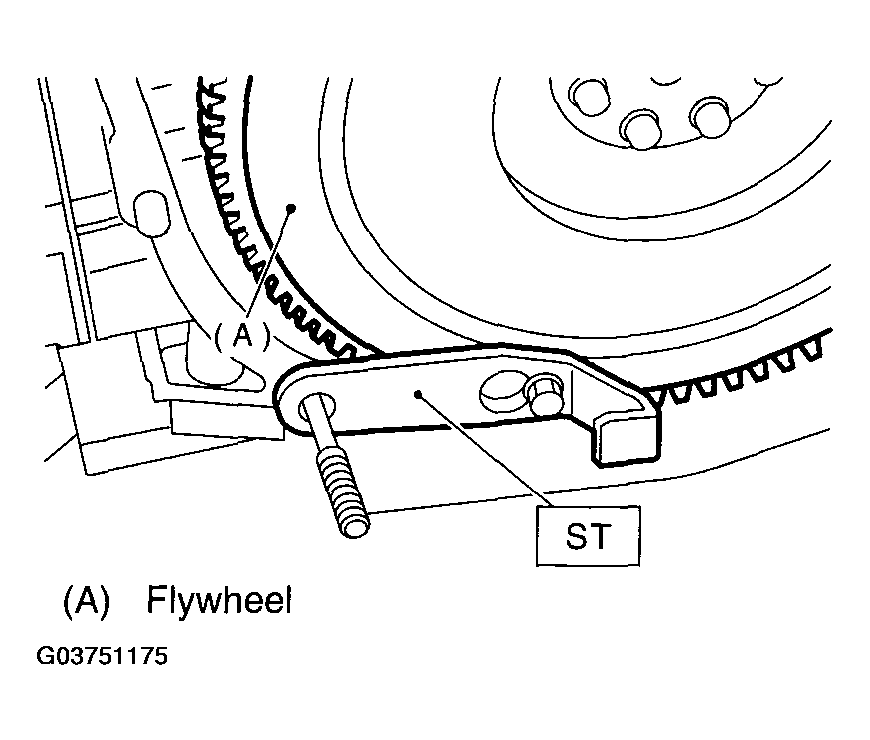

    Fig 1: Removing Flywheel Using Crankshaft Stopper ST498497100
    G03751175Courtesy of SUBARU OF AMERICA, INC.
