Oil Pump: Installation

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

Do the following:

Apply fluid gasket to matching surfaces of oil pump.
Fluid gasket:

Part No. 004403007

THREE BOND 1215 or equivalent
Replace O-ring (A) with a new one.

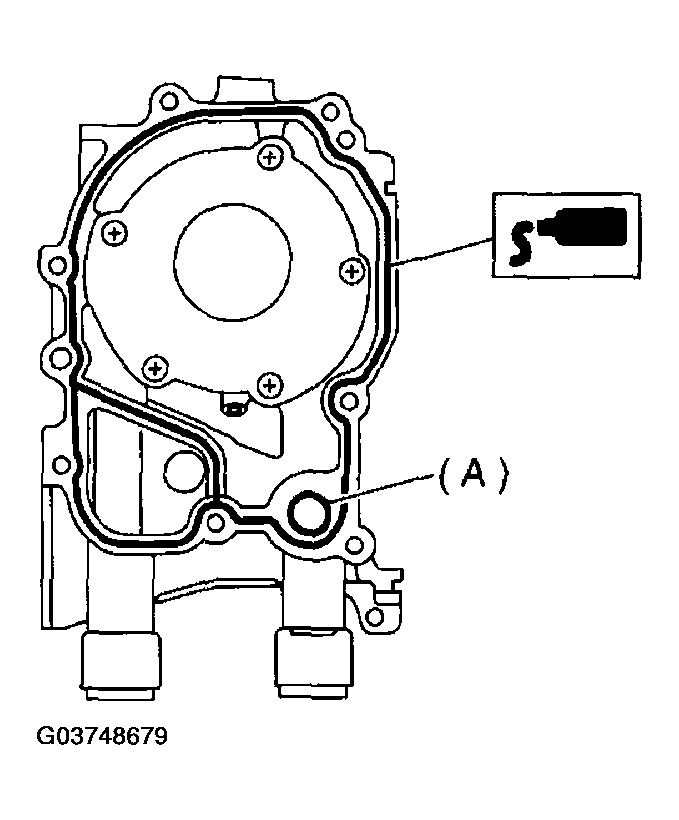

Fig 1: Applying Fluid Gasket To Matching Surfaces Of Oil Pump
Courtesy of SUBARU OF AMERICA, INC.
Apply engine oil to the inside of the oil seal.

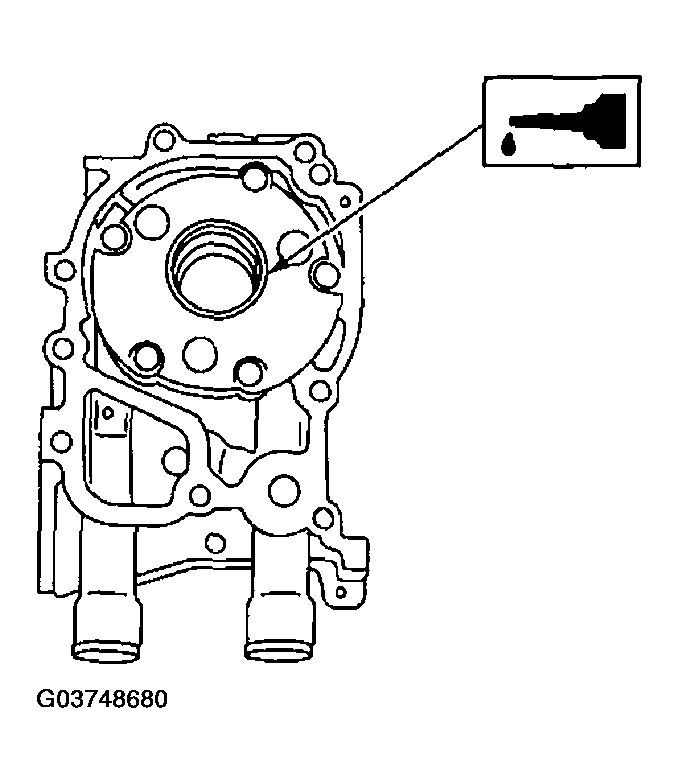

Fig 2: Applying Engine Oil
Courtesy of SUBARU OF AMERICA, INC.
Position the oil pump, aligning the notched area with the crankshaft, and push the oil pump straight.
CAUTION:
- Make sure the oil seal lip is not folded.
- When installing oil pump to cylinder block, do not damage oil seal.
Install oil pump.
Tightening torque:

6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

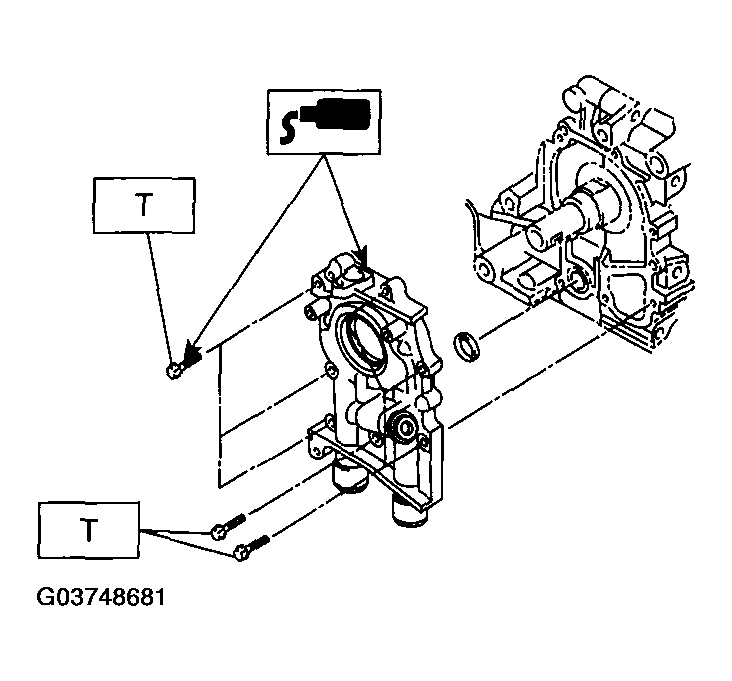

Fig 3: Installing Oil Pump To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
