Section 11 (Lubrication (H4SO)): General Description: Preparation Tool

WARNING: This page is about a different car, the 2005 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
PREPARATION TOOL

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 499977100 CRANKSHAFT PULLEY WRENCH Used for stopping rotation of crankshaft pulley when loosening and tightening crankshaft pulley bolt.
Fig 2 498547000 [Outer diameter 80 mm (3.15 in) for oil filter) OIL FILTER WRENCH Used for removing and installing oil filter.
Fig 3 18 332AA000 [Outer diameter 68 mm (2.68 in) for oil filter) OIL FILTER WRENCH Used for removing and installing oil filter.
Fig 4 18332AA010 [Outer diameter 65 mm (2.56 in) for oil filter] OIL FILTER WRENCH Used for removing and installing oil filter.
Fig 5 499587100 OIL SEAL INSTALLER Used for installing oil pump oil seal.

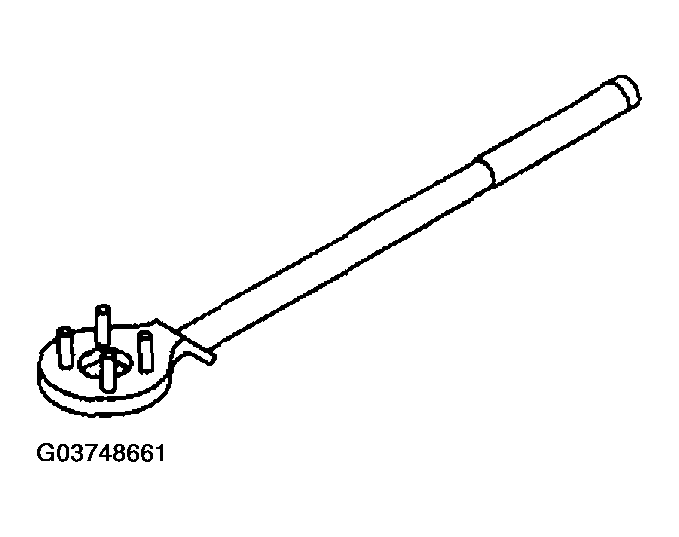

Fig 1: Identifying Special Tool ST-499977100
G03748661Courtesy of SUBARU OF AMERICA, INC.

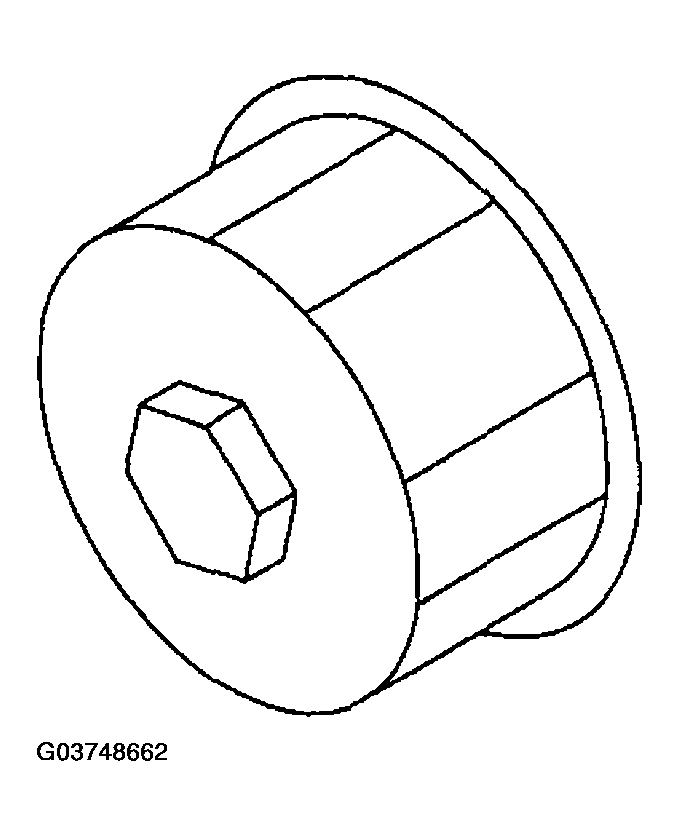

Fig 2: Identifying Special Tool ST-498547000
G03748662Courtesy of SUBARU OF AMERICA, INC.

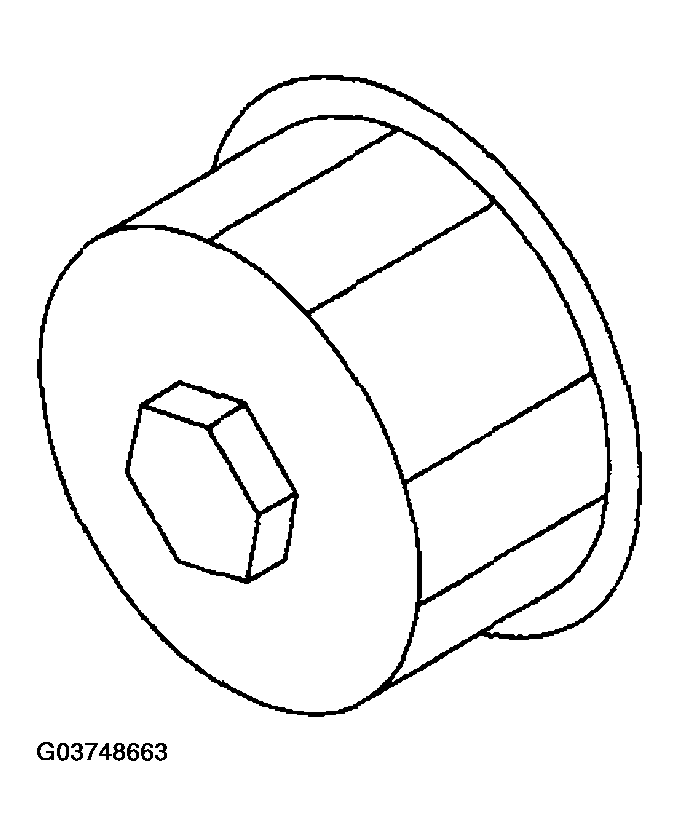

Fig 3: Identifying Special Tool ST18332AA000
G03748663Courtesy of SUBARU OF AMERICA, INC.

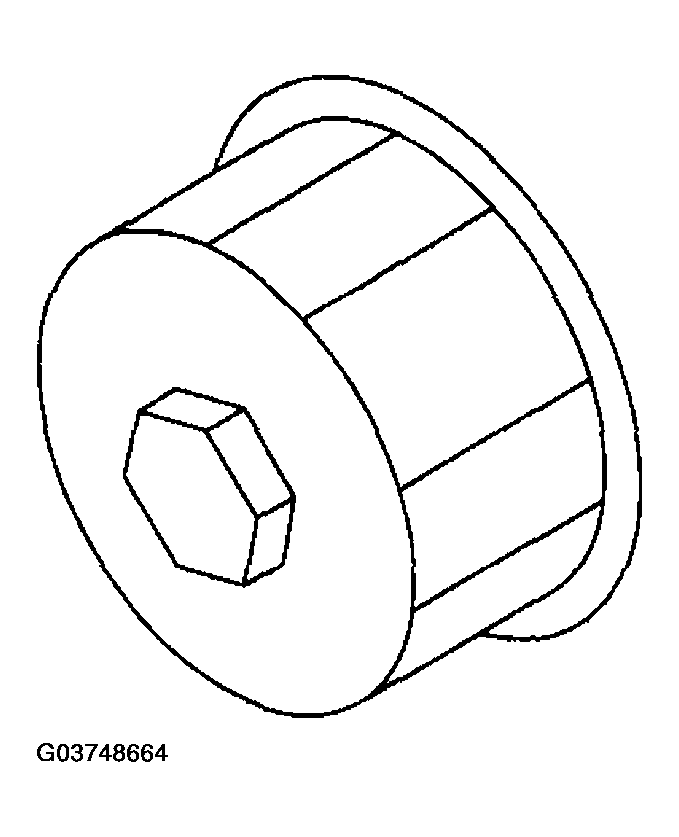

Fig 4: Identifying Special Tool ST18332AA010
G03748664Courtesy of SUBARU OF AMERICA, INC.

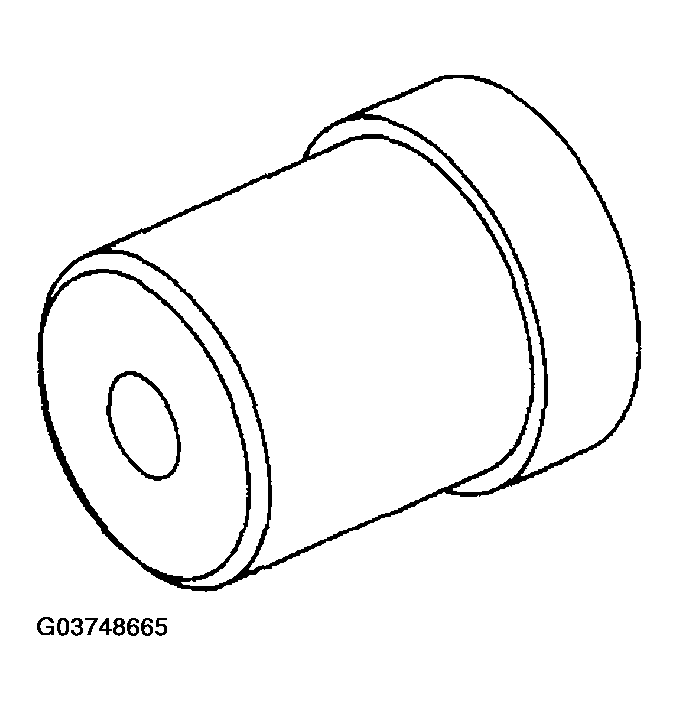

Fig 5: Identifying Special Tool ST-499587100
G03748665Courtesy of SUBARU OF AMERICA, INC.
