Mass Air Flow and Intake Air Temperature Sensor: Removal

Disconnect the ground cable from battery.

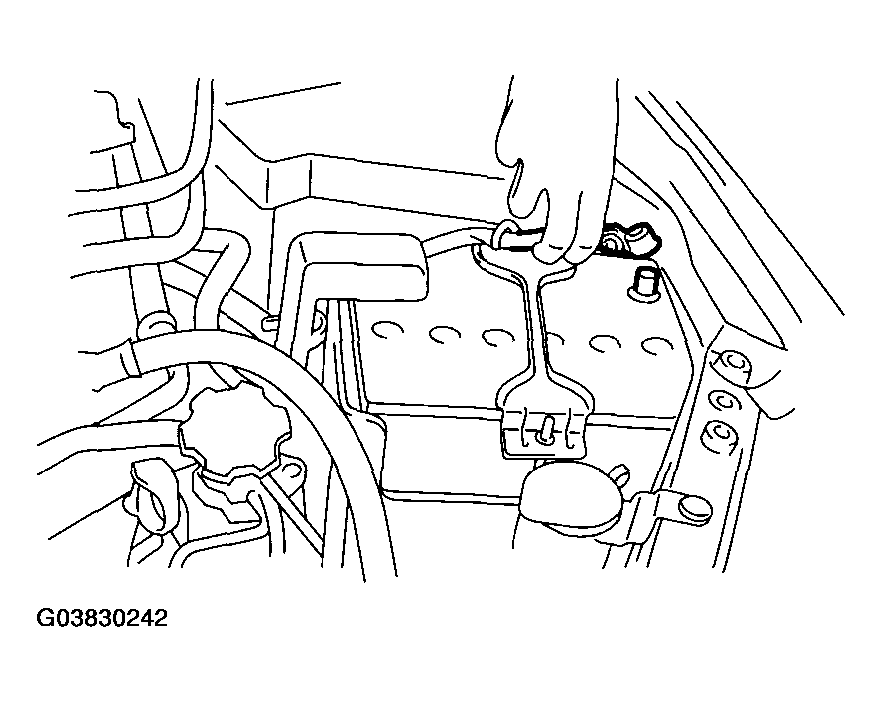

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from mass air flow and intake air temperature sensor.

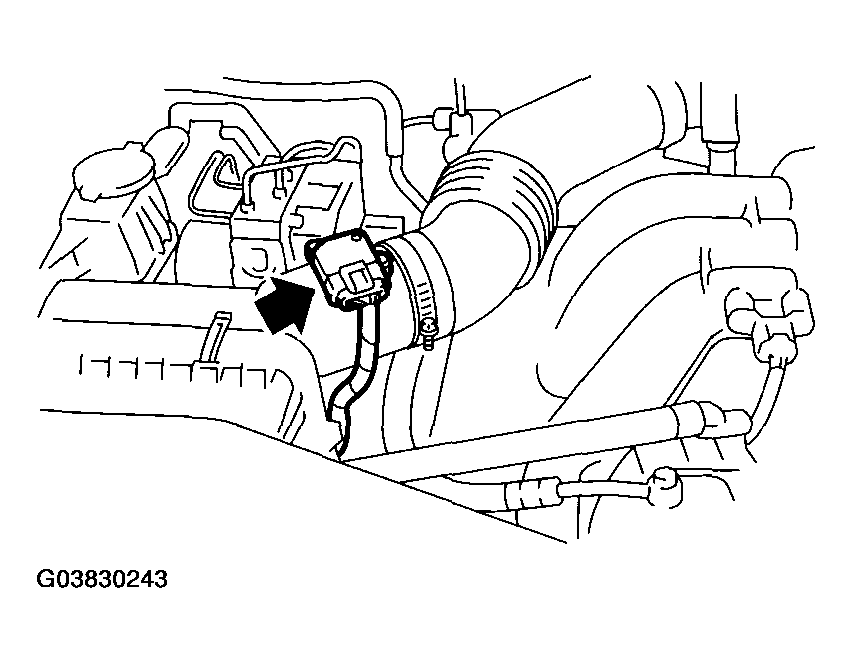

Fig 2: Disconnecting Connector From Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the mass air flow and intake air temperature sensor.

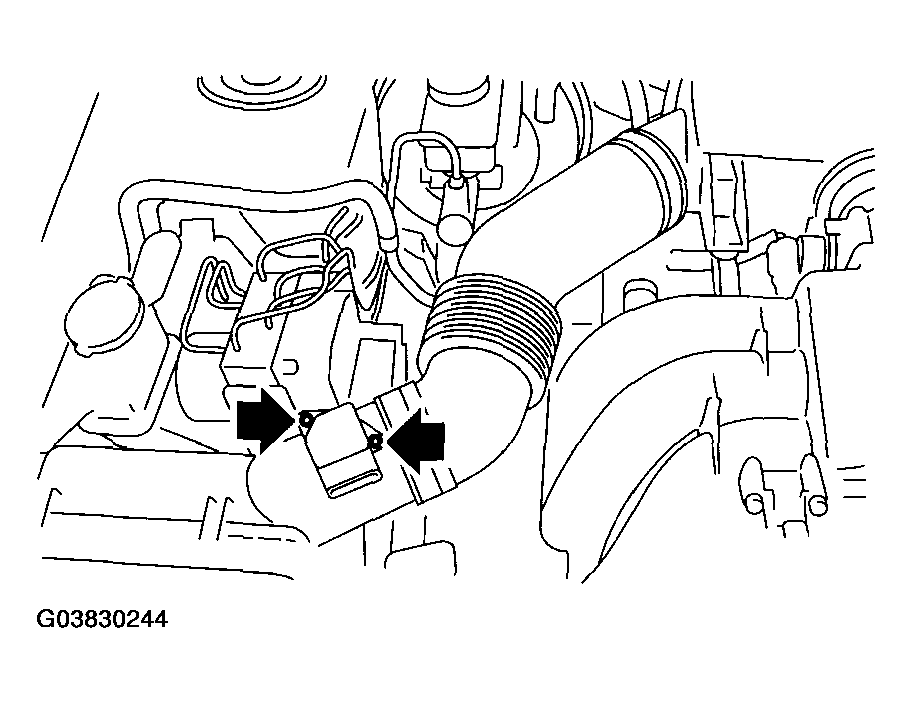

Fig 3: Removing Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
