Fuel Pump: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.
  1. Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
  2. Drain the fuel. < Ref. to , DRAINING FUEL , PROCEDURE, Fuel. >
  3. Remove the rear seat.
  4. Remove the service hole cover.

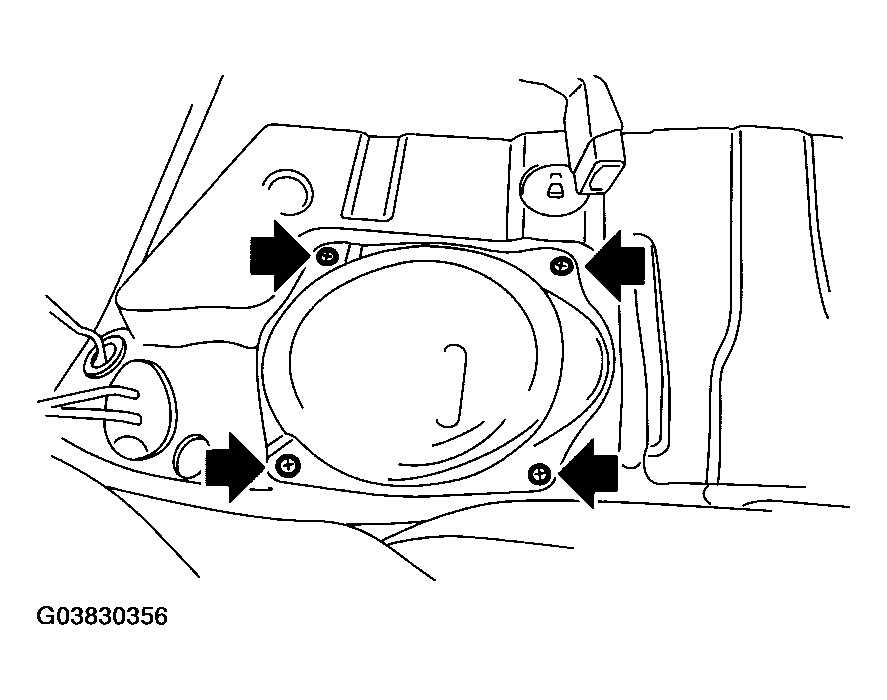

    Fig 1: Removing Service Hole Cover
    G03830356Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from fuel pump.

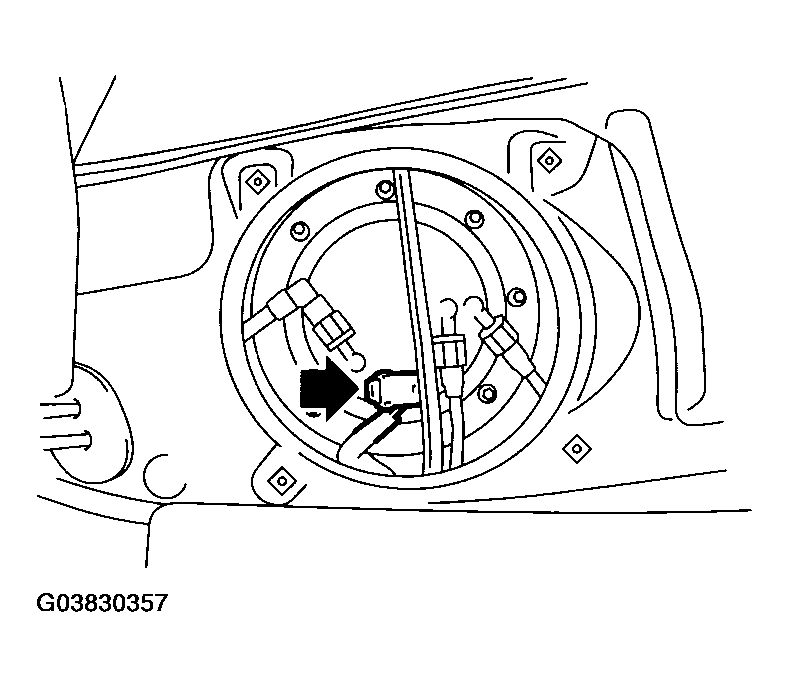

    Fig 2: Disconnecting Connector From Fuel Pump
    G03830357Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the quick connector and then disconnect the fuel delivery hose, return hose and jet pump hose. < Ref. to , REMOVAL , Fuel Delivery, Return and Evaporation Lines. >
  7. Remove the nuts which install the fuel pump assembly onto fuel tank.

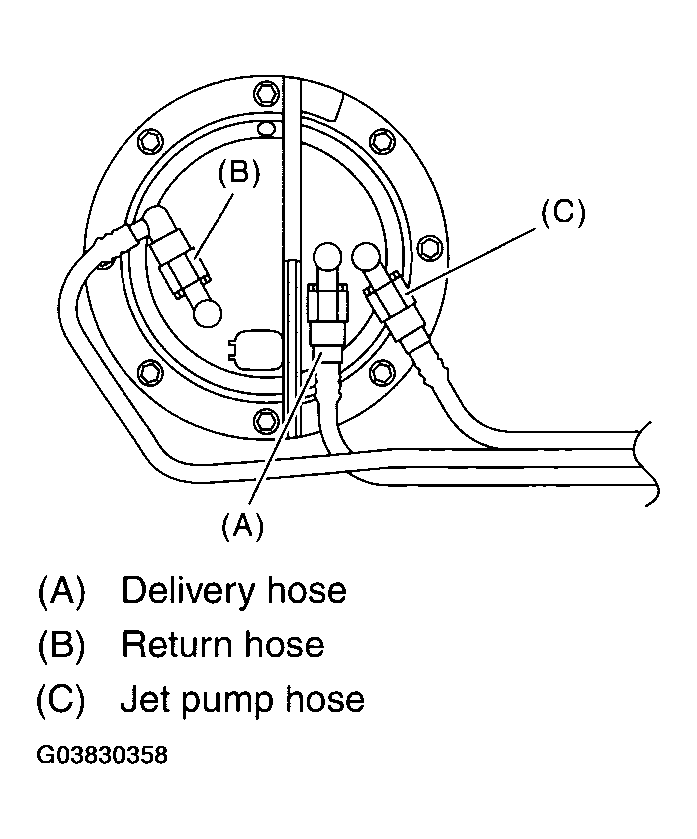

    Fig 3: Disconnecting Fuel Delivery, Return And Jet Pump Hose
    G03830358Courtesy of SUBARU OF AMERICA, INC.
  8. Take off the fuel pump assembly from fuel tank.
