LH Side

  1. Remove the collector cover.
  2. Release the fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , PROCEDURE, Fuel. >
  3. Open the fuel filler flap lid, and remove the fuel filler cap.
  4. Remove the battery.
  5. Remove the generator harness from fuel pipe protector LH.
  6. Remove the fuel pipe protector LH.

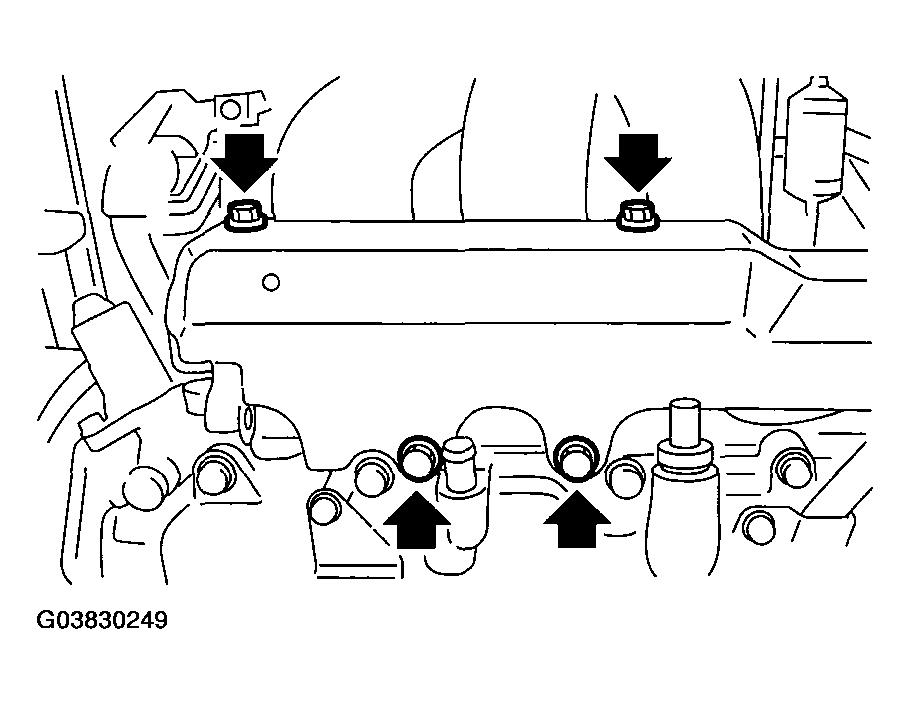

    Fig 1: Removing Fuel Pipe Protector LH
    G03830249Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connectors from fuel injector.

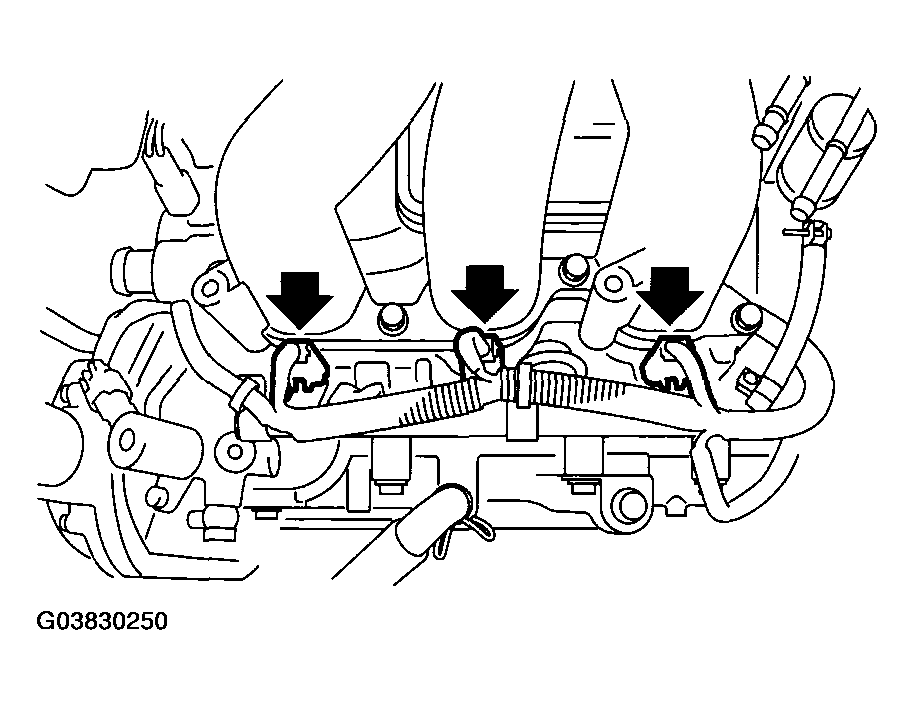

    Fig 2: Disconnecting Connectors From Fuel Injector
    G03830250Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the engine harness from fuel injector pipe LH.
  9. Remove the bolts which hold fuel injector pipe onto intake manifold.

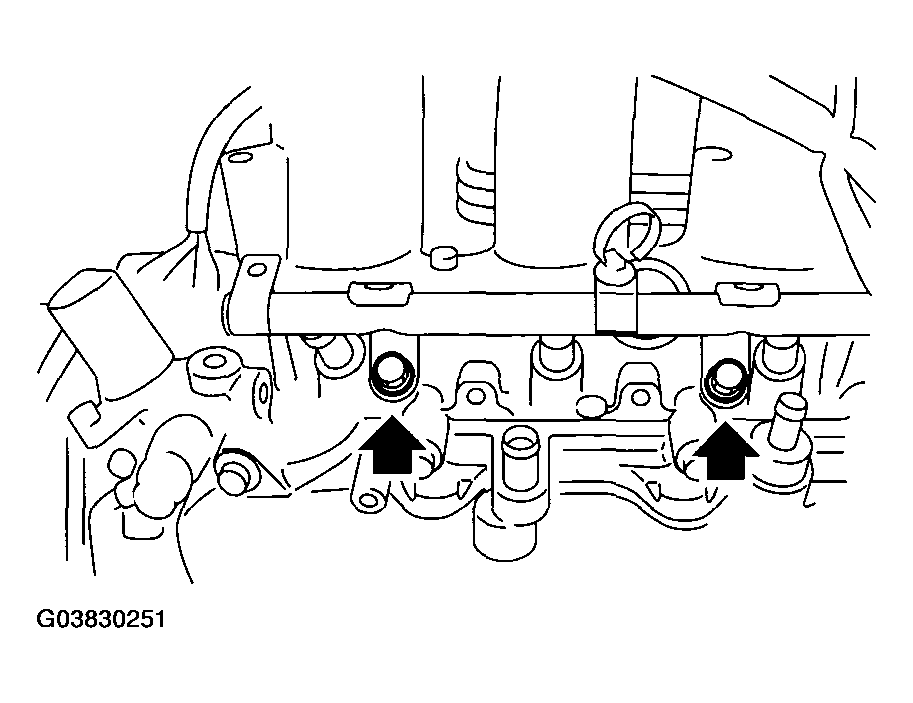

    Fig 3: Removing Fuel Injector Pipe Bolts
    G03830251Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the fuel injector while lifting up the fuel injector pipe.
