Horn System: Horn: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the two clips and turn up the lower mud guard RH.

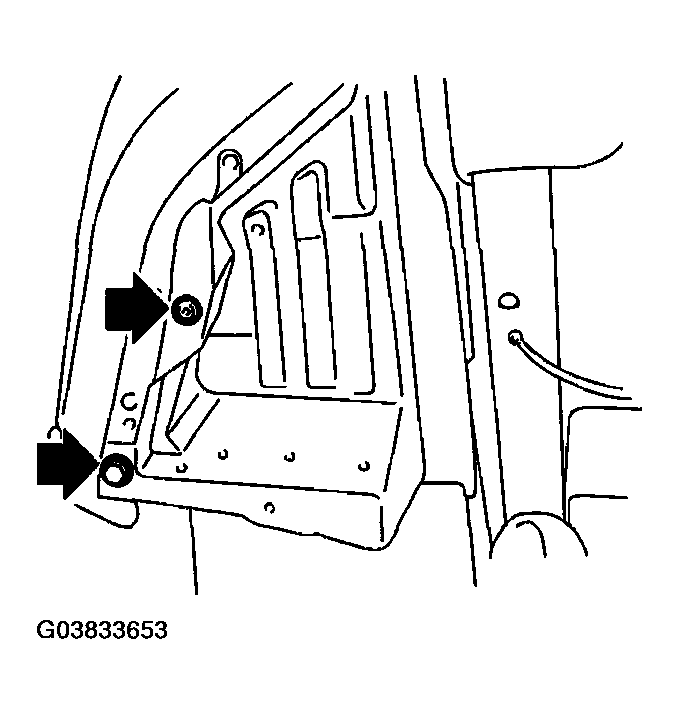

    Fig 1: Removing Two Lower Mud Guard RH Clips
    G03833653Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the horn bracket mounting bolt (A).
  4. Disconnect the harness connector and remove the horn assembly (B).
Fig 2: Disconnecting Harness Connector And Horn Assembly
G03833654Courtesy of SUBARU OF AMERICA, INC.
