Horn Switch: Inspection

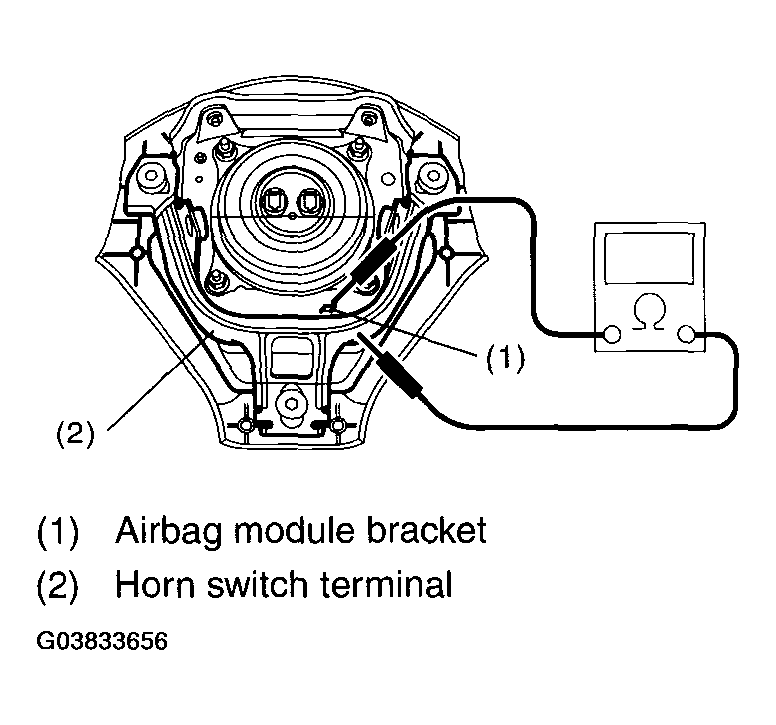

Measure the resistance between horn switch terminal and airbag module bracket.

Fig 1: Measuring Resistance Between Horn Switch Terminal And Airbag Module Bracket
G03833656Courtesy of SUBARU OF AMERICA, INC.
SWITCH POSITION SPECIFICATION

Switch position Terminal No. Resistance
When horn switch is pushed Horn switch terminal and airbag module bracket Less than 1 ohm
When horn switch is not pushed More than 1 Mohm
