Starter Disassembly

  1. Loosen the nut which holds terminal M of magnet switch assembly, and then disconnect the harness from terminal.
    Fig 1: Removing Nut Form Terminal M Of Magnet Switch Assembly
    G03828290Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bolts which hold switch assembly, and then remove the switch assembly, plunger and plunger spring from starter.
    Fig 2: Removing Bolts From Switch Assembly
    G03828291Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the nuts of both sides, and then remove rear cover.
    Fig 3: Removing Nuts Of Both Sides
    G03828292Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the through-bolts of bolt side, and then detach the end frame and armature from yoke as a unit.
    Fig 4: Removing Through-Bolts Of Bolt Side
    G03828293Courtesy of SUBARU OF AMERICA, INC.
    Fig 5: Detaching End Frame And Armature From Yoke As Unit
    G03828294Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the end frame cover.
    Fig 6: Removing End Frame Cover
    G03828295Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the snap ring.
  7. Remove the space ring.
    Fig 7: Removing Snap Ring
    G03828296Courtesy of SUBARU OF AMERICA, INC.
    Fig 8: Removing Space Ring
    G03828297Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the armature from end frame.
  9. Remove the screw.
    Fig 9: Removing Screw
    G03828298Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the brush holder assembly from end frame.
    Fig 10: Removing Brush Holder Assembly From End Frame
    G03828299Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the yoke from front bracket.
    Fig 11: Removing Yoke From Front Bracket
    G03828300Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the armature plate from the yoke.
    Fig 12: Removing Armature Plate From Yoke
    G03828301Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the rubber seal and planetary gear.

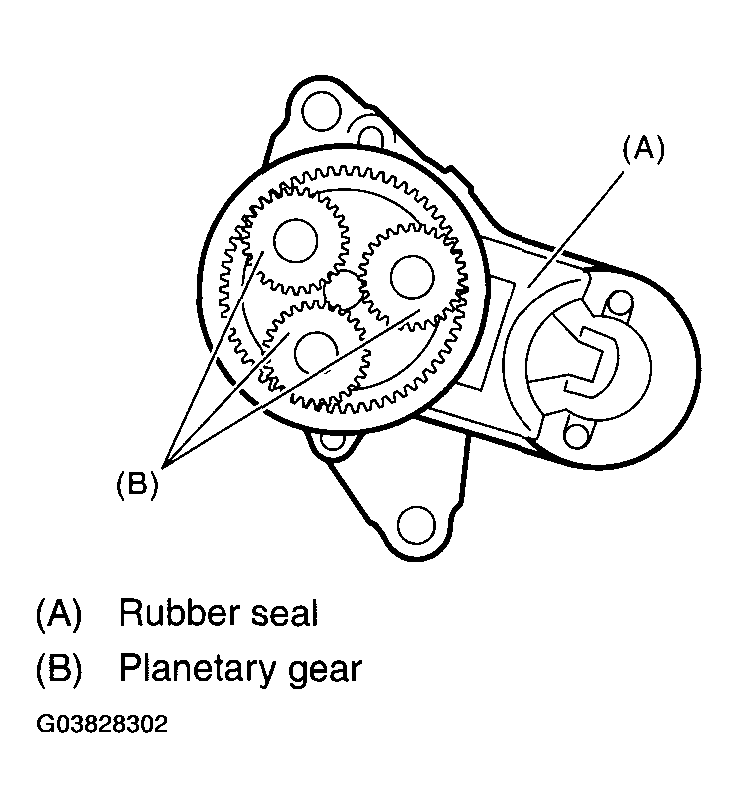

    Fig 13: Removing Rubber Seal And Planetary Gear
    G03828302Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the shaft assembly, overrunning clutch and lever from front bracket as a unit.

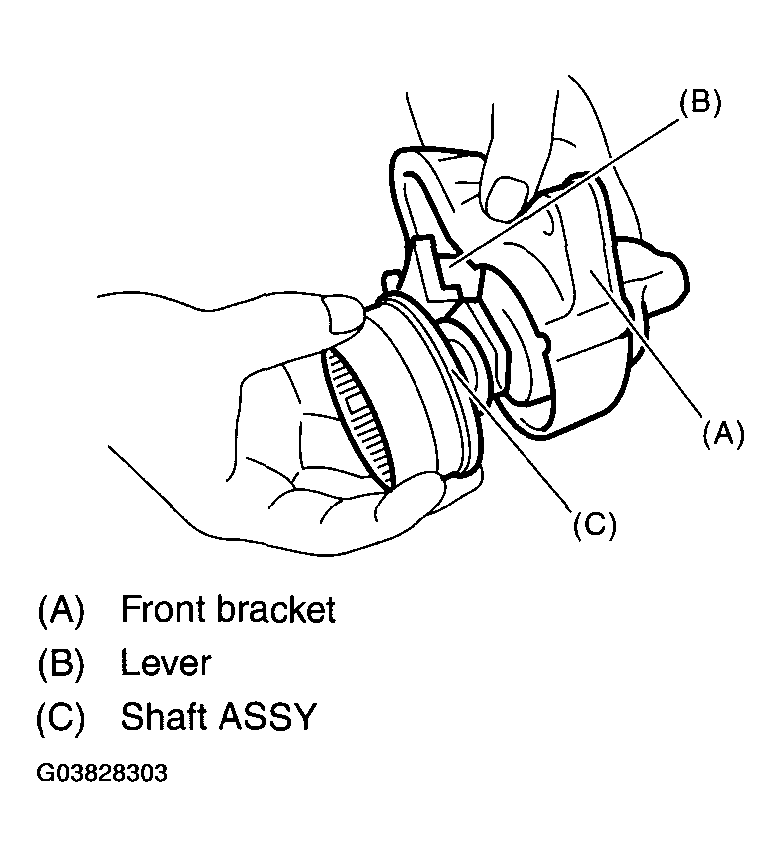

    Fig 14: Removing Shaft Assembly
    G03828303Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the overrunning clutch from shaft assembly as follows:
    1. Remove the stopper from snap ring by lightly tapping the stopper with an appropriate tool (such as a fit socket wrench).
    2. Remove the snap ring, stopper and clutch from shaft.

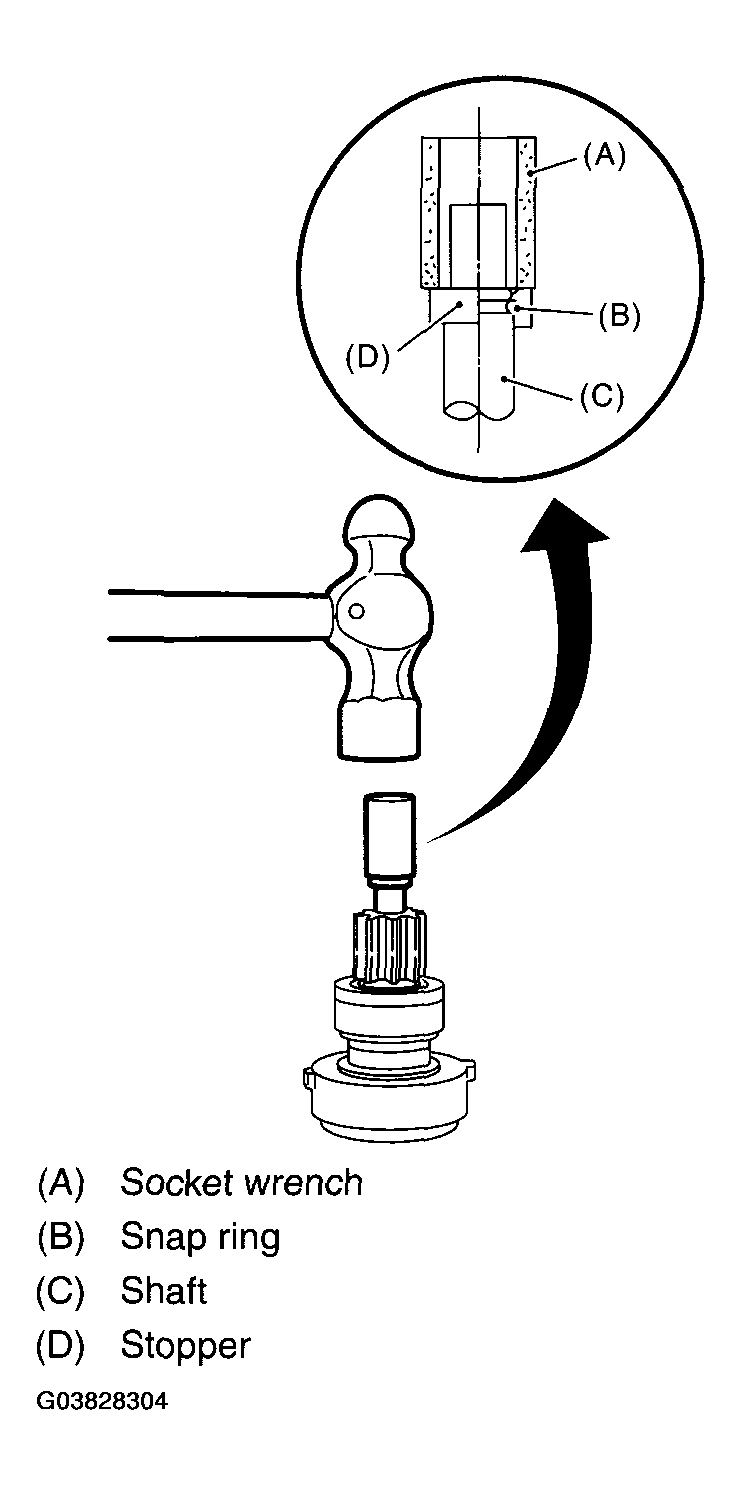

    Fig 15: Removing Snap Ring, Stopper And Clutch From Shaft
    G03828304Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the snap ring.

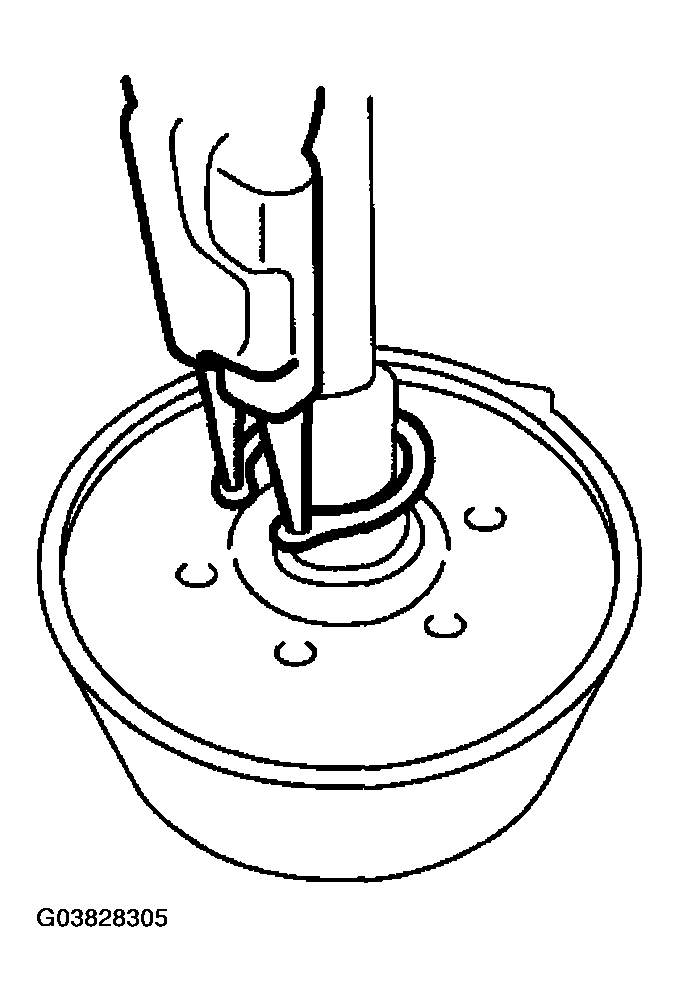

    Fig 16: Removing Snap Ring
    G03828305Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the shock absorber bearing, wave washer and internal gear from shaft.

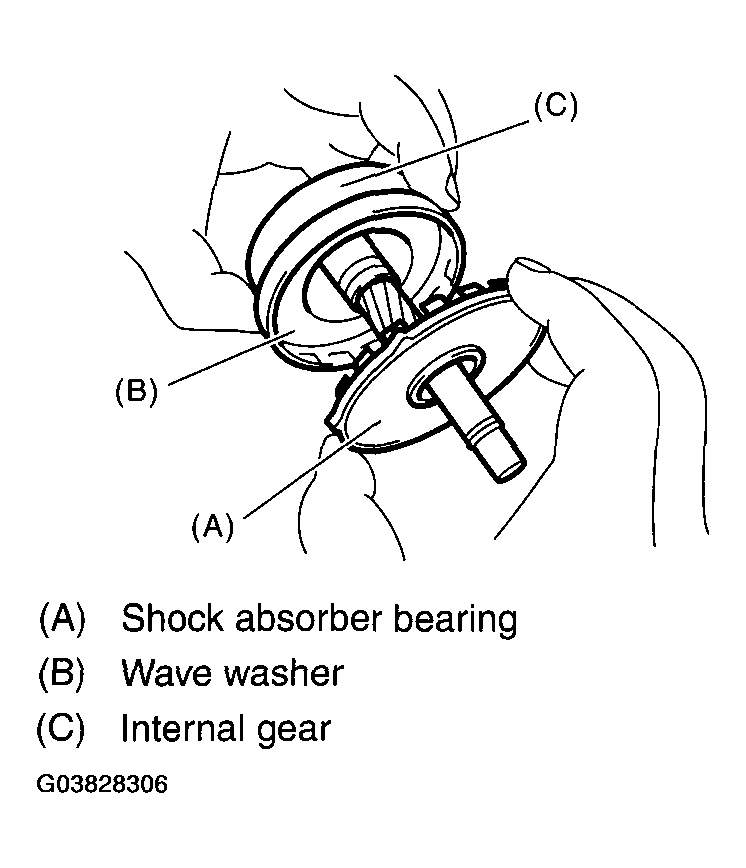

    Fig 17: Removing Shock Absorber Bearing, Wave Washer And Internal Gear From Shaft
    G03828306Courtesy of SUBARU OF AMERICA, INC.
  18. Remove the front bearing from front bracket.
    1. Set an appropriate tool (diameter 2.0 mm) to front bearing.
    2. Using a press, remove the front bearing.

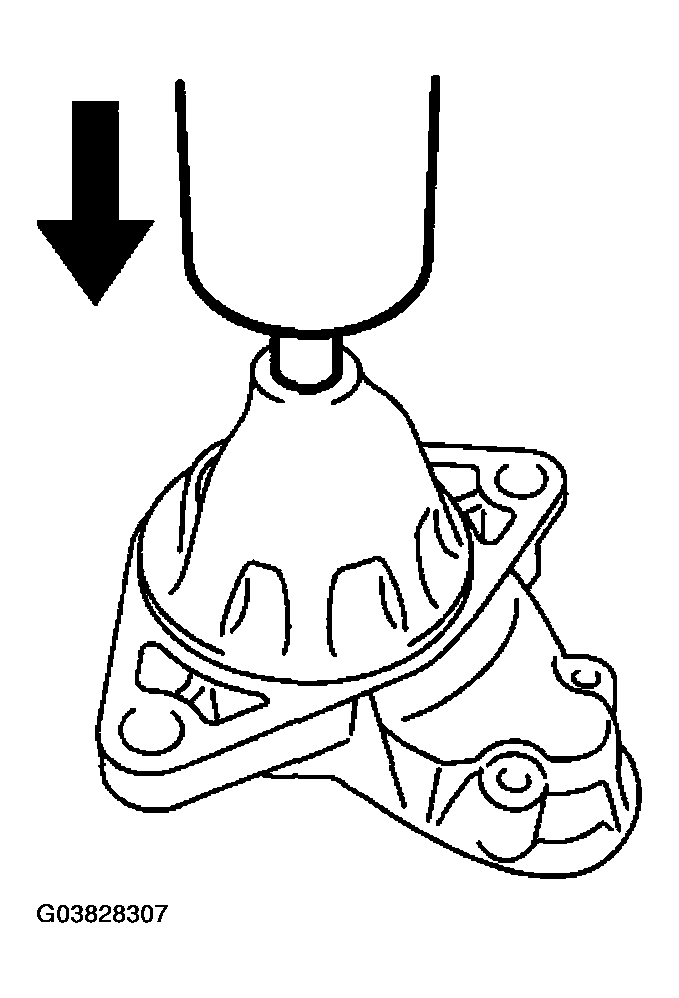

    Fig 18: Removing Front Bearing
    G03828307Courtesy of SUBARU OF AMERICA, INC.
  19. Remove the oilless bearing from shock absorber bearing.
    1. Set an appropriate tool (diameter 20 mm) to oilless bearing.
    2. Using a press, remove the oilless bearing.
    Fig 19: Removing Oilless Bearing
    G03828308Courtesy of SUBARU OF AMERICA, INC.
  20. Remove the rear bearing from end frame.
    1. Set an appropriate tool (diameter 16 mm) to rear bearing.
    2. Using a press, remove the rear bearing.
    Fig 20: Removing Rear Bearing
    G03828309Courtesy of SUBARU OF AMERICA, INC.
